Cisco ESW 500 User Manual

Managing Smart Ports
Configuring Smart Ports for Access Points
ESW 500 Series Switches Administration Guide 70
3

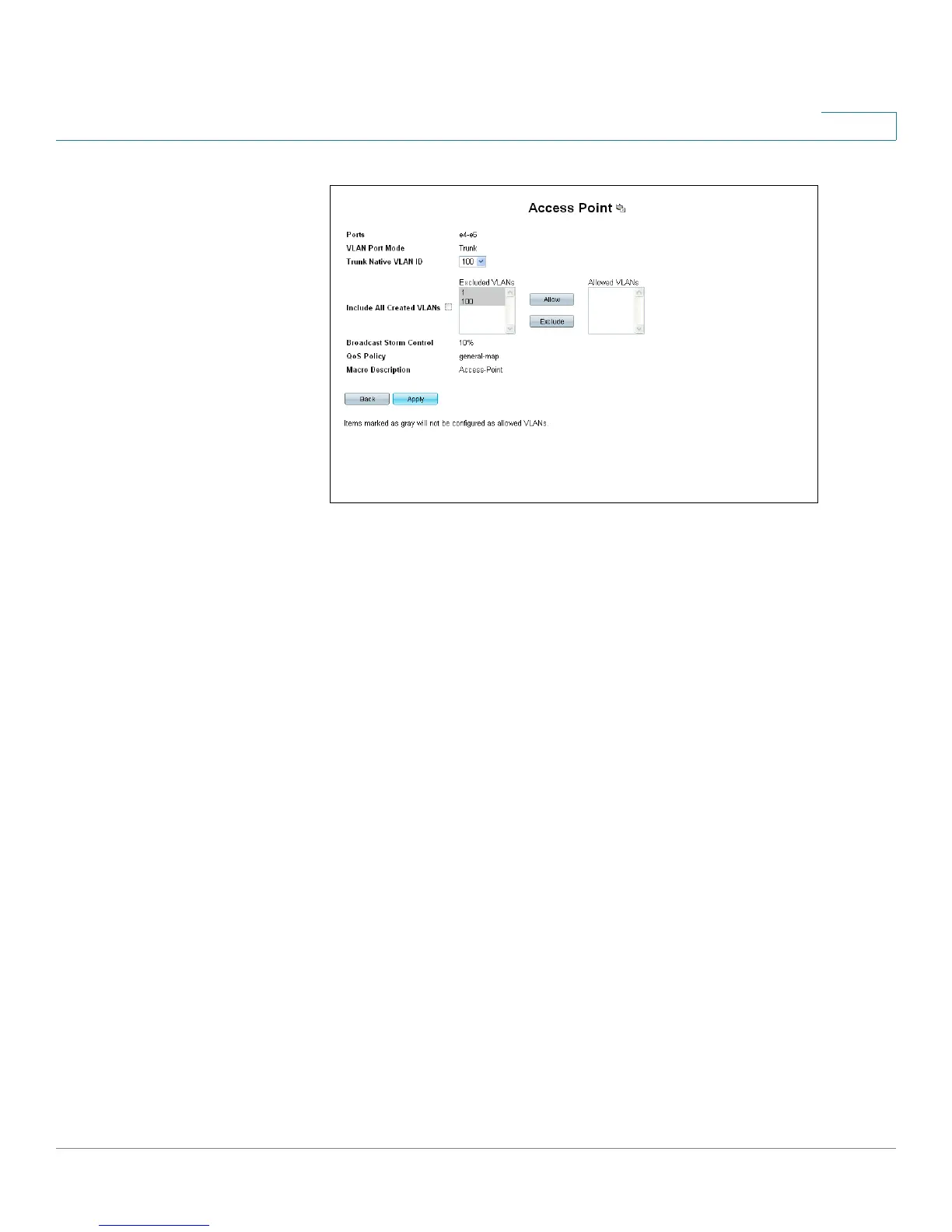

Smart Ports for Access Points Settings Page
The
Smart Ports for Access Points Settings Page contains the following fields:
• Ports — Indicates the port to which Smart Port wizard settings are applied.
• VLAN Port Mode — Indicates the VLAN port mode enabled on the port. The
possible value is:
- Trunk — Indicates the port belongs to VLANs in which all VLANs are
tagged, except for one VLAN that is untagged. This is the default setting
for ports that are connected to access points.
• Trunk Native VLAN ID — Defines the VLAN receiving untagged packets at
ingress.
• Excluded VLANs — Defines VLANs that are excluded from receiving untagged
packets at egress.
• Allowed VLANs — Defines VLANs that are allowed to receive untagged
packets at egress.
• Broadcast Storm Control — Indicates if the percentage of Broadcast Storm
Control enabled on the port. The default value is 10% of the port speed.
• QoS Policy — Indicates that the default QoS policy settings are applied to the
port. The name of the default QoS policy is general-map.
• Macro Description — Indicates the type of device connected to the port. For
access points, this field is always
Access Point.
STEP 6 Select a VLAN in the Trunk Native VLAN ID drop-down list.
