Managing Smart Ports
Configuring Smart Ports for Other
ESW 500 Series Switches Administration Guide 87
3

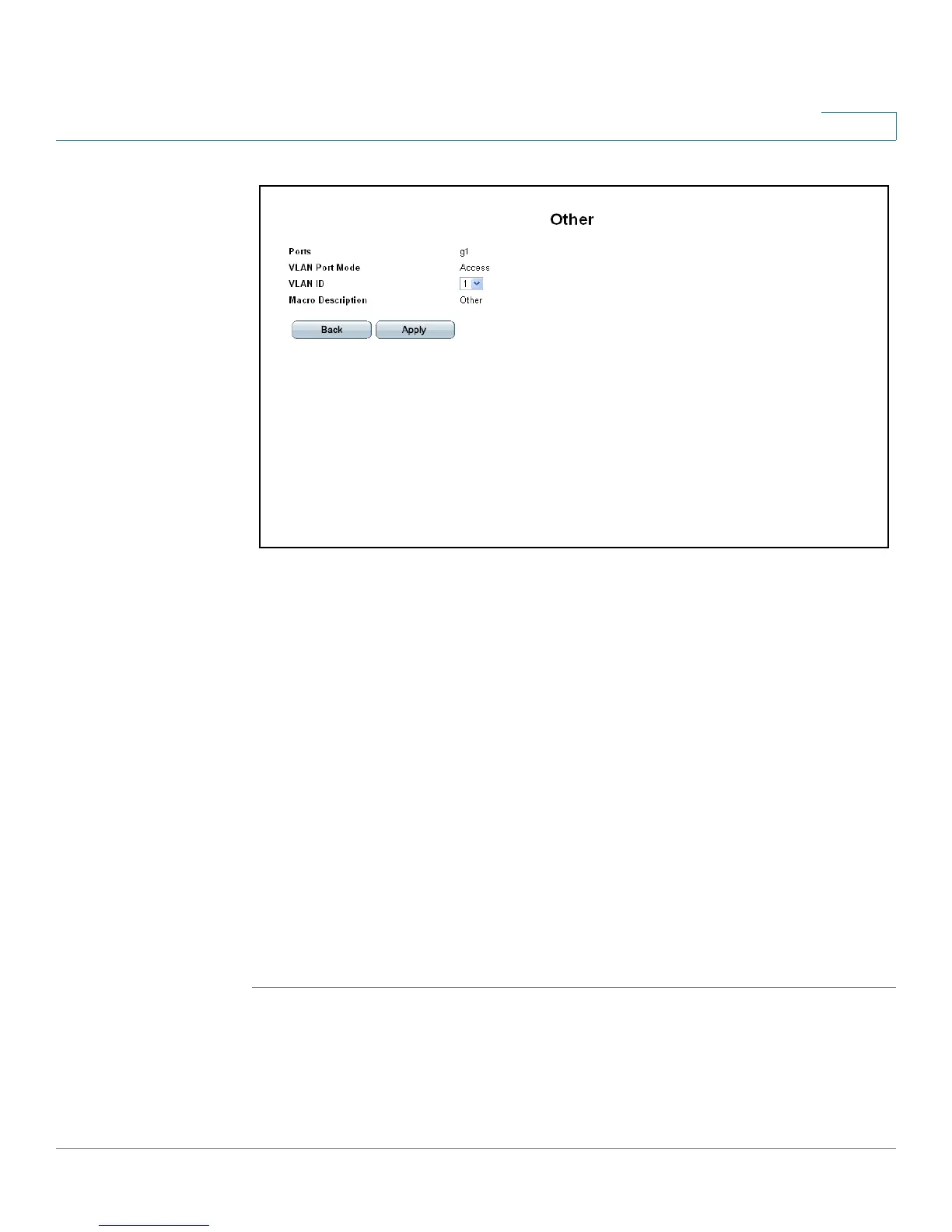

Smart Ports Other Page
The
Edit Smart Port Other Page
contains the following fields:
• Ports — Indicates the port to which Smart Port wizard settings are applied.
• VLAN Port Mode — Indicates the VLAN port mode enabled on the port.
The possible value is:
-
Trunk
— Indicates the port belongs to VLANs in which all VLANs are
tagged, except for one VLAN that is untagged. This is the default setting
for ports that are connected to routers.
• Trunk Native VLAN ID — Defines the VLAN receiving untagged packets at
ingress. The default value is VLAN 1, the user can change it to any other
created VLAN through a drop down list.
• Macro Description — Displays Other, which indicates the port has no
Wizard configured.
STEP 6 Select a VLAN in the
VLAN ID
drop-down list.
STEP 7 Click Apply. The port settings are saved, and the device is updated.
