OPERATION
2
2.4.5 Procedure for storing the editing program to the ABSODEX driver
1) Select "5 STORE" from the edit mode menu.
※
※※
※ For the selection method, follow the mode
selection procedure.
2) The nature of the program being edited (either
"EQL SEG" or "NC") is displayed.
3) Select whether or not to store, and press
.
a) Selecting "Y"
• In case of registration of a new program
The program is stored in the ABSODEX
driver.
• If the program labeled with the same
number already exists
A message is displayed to indicate that the
designated number is already registered.
Select again whether or not to store, and
press
.
If "Y" is selected
The same message as that displayed
during registration of a new program is
displayed, and the program is overwritten in
the ABSODEX driver.
b) Selecting "N"
"5 STORE" in the edit mode menu starts.

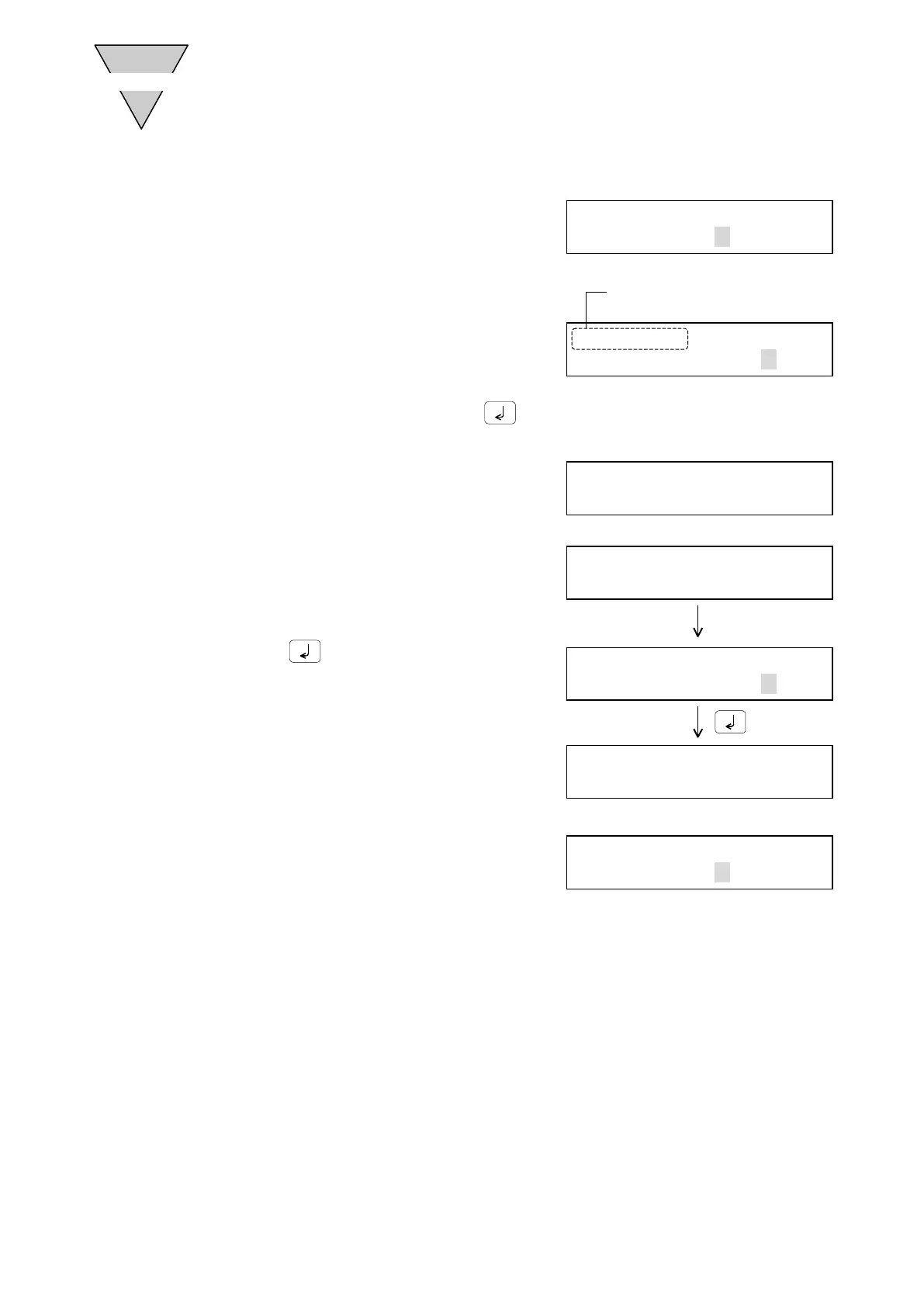

ＥＤＩＴ ＭＯＤＥ
←４ＣＮＴ ５ＳＴＯＲＥ→
ＥＱＬ ＳＥＧ Ｏ１
ＳＴＯＲＥ？ ［Ｙ／Ｎ］
The nature of the program being edited
("EQL SEG" or "NC") is displayed.
＊ＳＴＯＲＥＤ＊
ＳＴＯＲＥ？ ［Ｙ／Ｎ］
ＲＥＧＩＳＴＥＲＥＤ
ＳＴＯＲＥ？ ［Ｙ／Ｎ］
ＥＱＬ ＳＥＧ ０１
ＲＥＷＲＩＴＥ？ ［Ｙ／Ｎ］
＊ＳＴＯＲＥＤ＊
ＲＥＷＲＩＴＥ？ ［Ｙ／Ｎ］
ＥＤＩＴ ＭＯＤＥ
←４ＣＮＴ ５ＳＴＯＲＥ→
