OPERATION
2

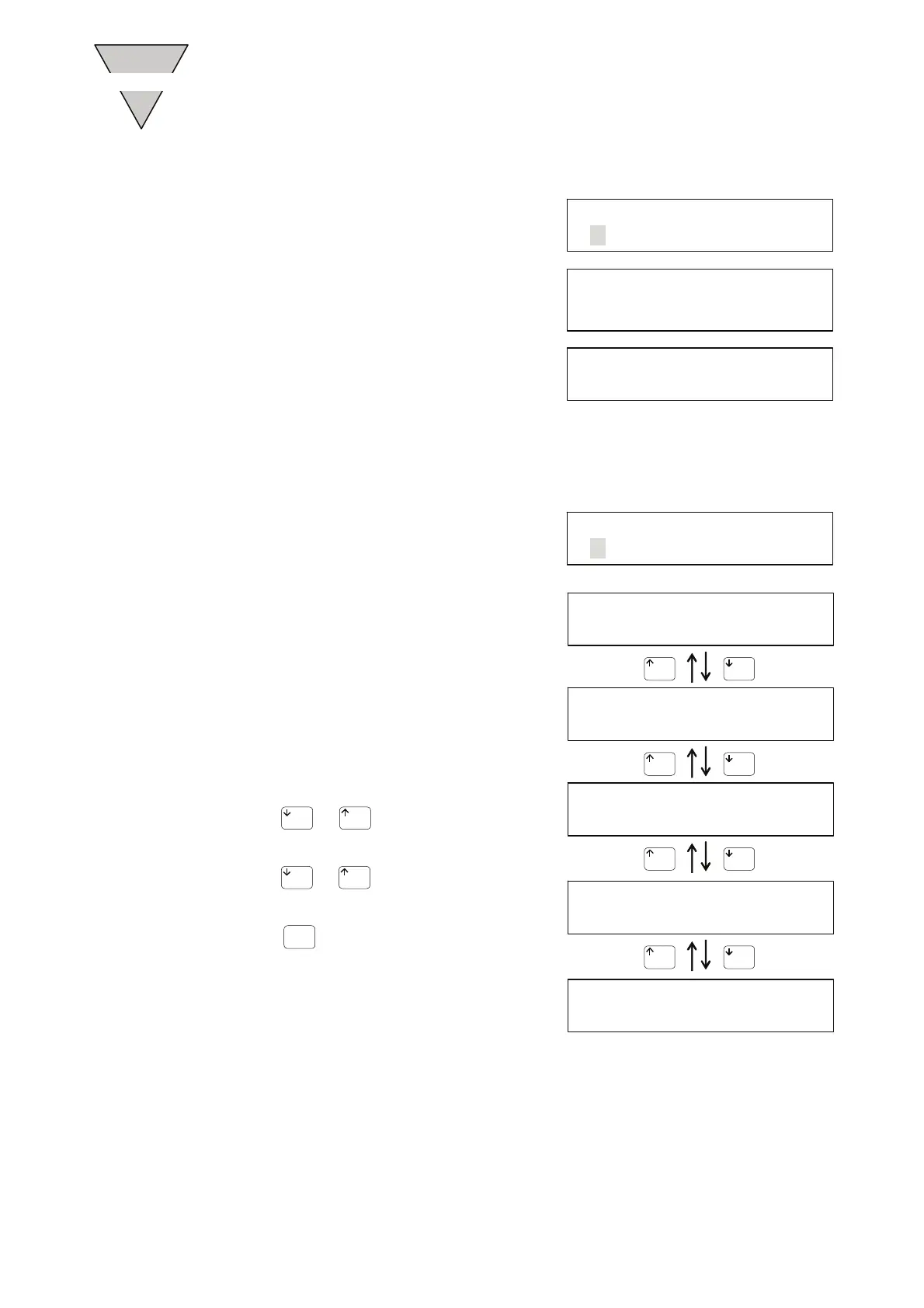

2.5.4 ABSODEX information displaying procedure
[Function for TS/TH-type driver only]
1） Select “4 INFO” from the display mode menu.
※
If a driver other than TS/TH-type is connected, the
message on the right is displayed, and the mode
selection menu is displayed again.
ＤＩＳＰＬＡＹ ＭＯＤＥ
←３ＡＬＡＲＭ ４ＩＮＦＯ
2）
Information to be displayed is selected from the
following.
1: ACTU Displays actuator information
2: DRIV Displays driver information
3:PENDANT Displays teaching pendant
information
ＴＨＩＳ ＭＯＤＥ ＩＳ ＦＯＲ
ＴＳ/ＴＨ ＴＹＰＥ ＯＮＬＹ
ＡＢＳＯＤＥＸ ＩＮＦＯ
１ＡＣＴＵ ２ＤＲＩＶ →
2.5.4.1 Actuator information displaying procedure
1） Select “1 ACTU” from the ABSODEX
information menu.
ＡＢＳＯＤＥＸ ＩＮＦＯ
１ＡＣＴＵ ２ＤＲＩＶ →
2） Then,the actuator model number is displayed.
Following information can be displayed in the
actuator information menu.
1: Actuator model number (exc. options)
2: Actuator serial number
3: Actuator resolver revolution
4: Software version of actuator-side CB
5: Offset value of electrical angle
6: Offset value of mechanical angle
※When there is an alarm, above information may
not be displayed correctly.
Press
or to switch between the
information to display.
Press
or to view reception data
exceeding 16 characters.
Press
MODE
to return to the menu screen.
ＡＣＴＵＡＴＯＲ ＩＮＦＯ
ＡＸ４０２２Ｔ
ＡＣＴＵＡＴＯＲ ＩＮＦＯ
ＭＯＴＯＲ Ｓｅｒ．１２３４５６
ＡＣＴＵＡＴＯＲ ＩＮＦＯ
ＭＯＴＯＲ Ｖｅｒ１．２３
ＡＣＴＵＡＴＯＲ ＩＮＦＯ
Ｃｕｒｒｅｎｔ Ｏｆｆｓｅｔ Ｈ
ＡＣＴＵＡＴＯＲ ＩＮＦＯ
Ｏｒｉｇｉｎ Ｏｆｆｓｅｔ Ｈ’
[SMB-66E]
－ 23 －
