2.7.13.2 Reception data
a) To view reception data exceeding 15 characters, press or .
b) During transmission, the following codes are
checked.
If other codes are entered, the following
message is displayed.
<Codes that can be sent>
･M1 to M6
･S1 to S7,S20
･L1 to L21
(However, L8 and L14 are excluded.)
c) Various values are sent back in response to
the code starting with "L." If there is no
predetermined value, "0" (during normal
operation) is displayed.
If the entry format of the code is wrong, ""
is sent back.
(At this time, an alarm is caused.)
d) If the received data exceeds 256 characters,
the following message is displayed.
Thereafter reception data is displayed as in
regular cases, but the part later than 256
characters is not displayed.
★

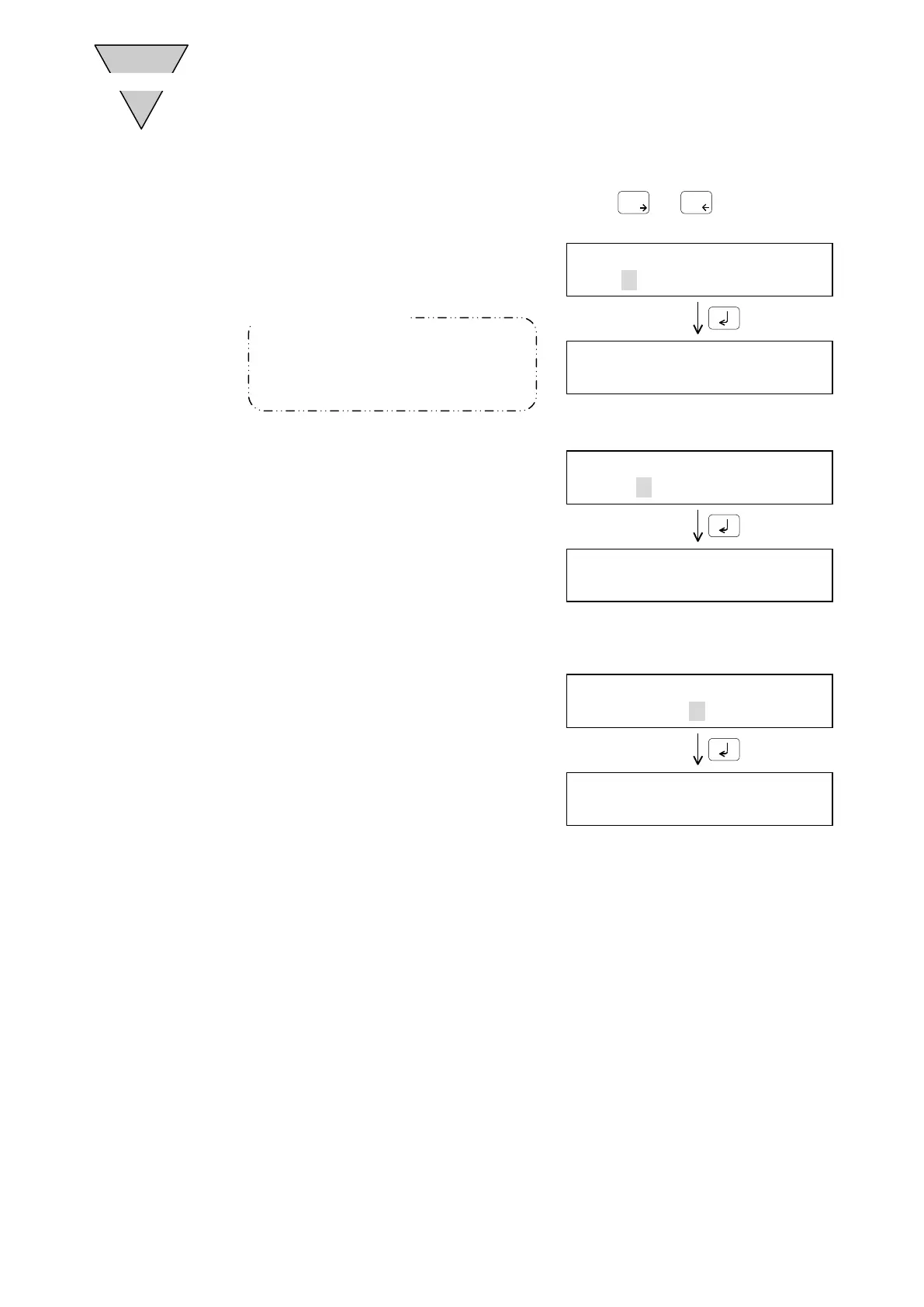

If "L8" is sent
￥
ＴＥＲＭ
＞Ｌ８
Ｌ８
＞ＮＯ ＤＥＦＩＮ ＣＯＤＥ！
★
If "L12" is sent
ＴＥＲＭ
＞Ｌ１２
Ｌ１２
＞＊←
★
If the number of program characters of
program number "10" exceeds 256
ＴＥＲＭ
＞Ｌ１２ １０
ＩＮＣＯＭＥ ＢＵＦＦ ＯＶ
＞Ｌ１２ １０
