５． ALARMS
An error to ABSODEX will display an alarm number in the 7 segment LED on the front of the driver.
At the same time, alarm outputs of I/O (CN3-44 and 45) will also be ON.
(Alarm output is made with the negative logic.)

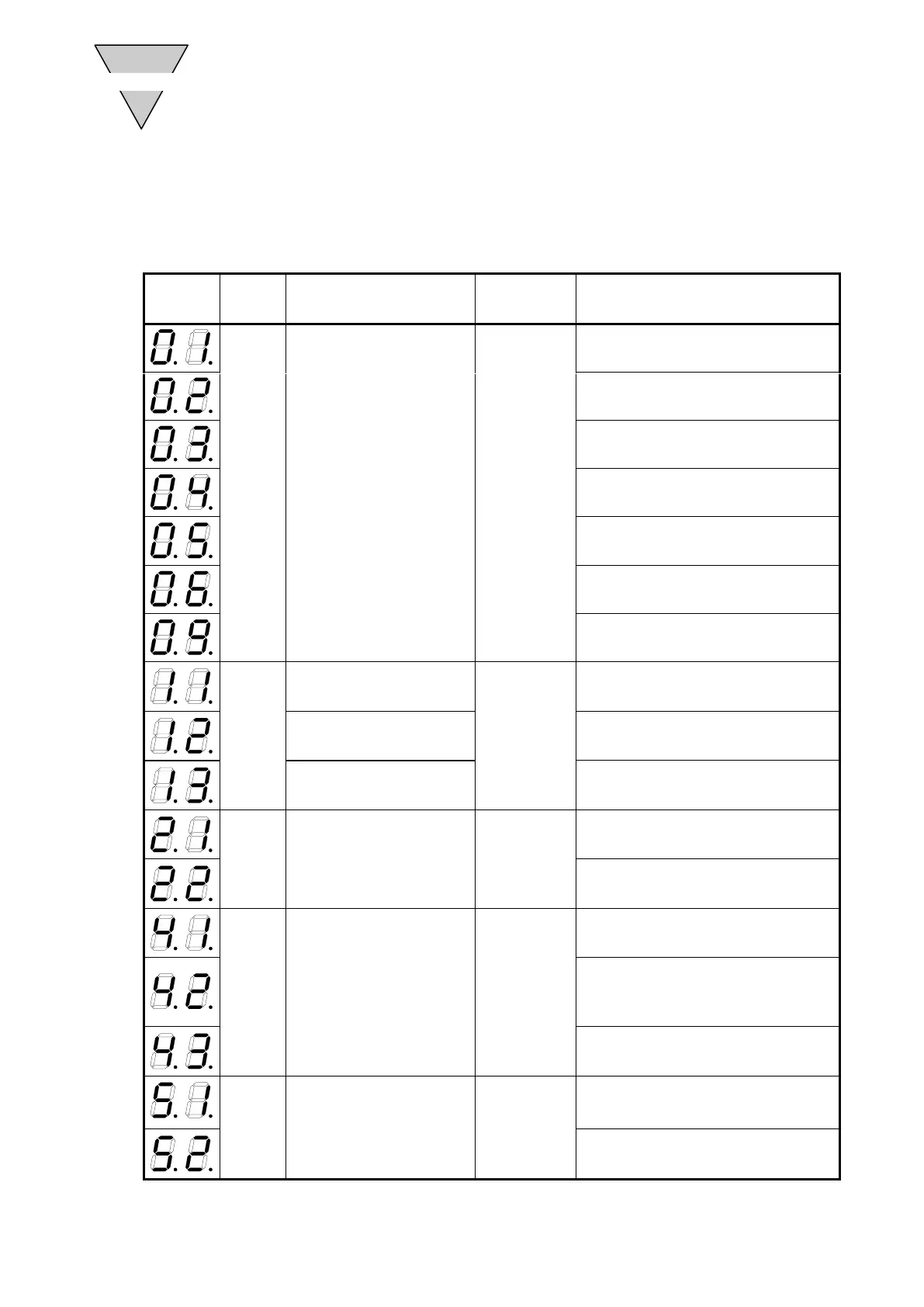

５.１ Alarm Display and Description
ＬＥＤ
Ｄｉｓｐｌａｙ
ＡＬＡＲＭ
Ｎｏ.
Ｄｅｓｃｒｉｐｔｉｏｎ
ＡＬＡＲＭ
Ｏｕｔｐｕｔ
Ｒｅｍａｒｋｓ
0 NC program error
Alarm１
Program data error (M1 mode)
Program selection error
Program data error (M3 mode)
The I/O number is entered while the
program is stored.
Answe
r input command S10 is executed
while no answer is waited for.
Time expiration in pulse travel mode
Other program errors
1
Position deviation over
Alarm 1
Alarm 2
Setting of PRM 19 (upper limit of
position deviation amount) is exceeded.
Speed limit over
Setting of PRM 20 (speed over limit) is
exceeded.
Encoder output max.
frequency over
The maximum encoder output
frequency is exceeded.
2
Regenerative resistor
overheat
Alarm 1
Alarm 2
The power is turned on in a
regenerative resistor overheat error.
A regenerative resistor overheat error is
caused during operation.
4 Actuator overload
Alarm 1
Alarm 2
Error caused by electronic thermal
overload calculation
Error caused by electronic thermal
overload calculation
(The electronic thermal value is 110°C
or over.)
The power module protective function is
activated.
5 Power module abnormal
Alarm 1
Alarm 2
The power is turned on in the presence
of an over-current or a fault signal sent
from the power module.
An over-
current or a fault signal from the
power module is sent during operation.
