Duplo DBM-600T User Manual

1-12
Chapter 1 Before Operation

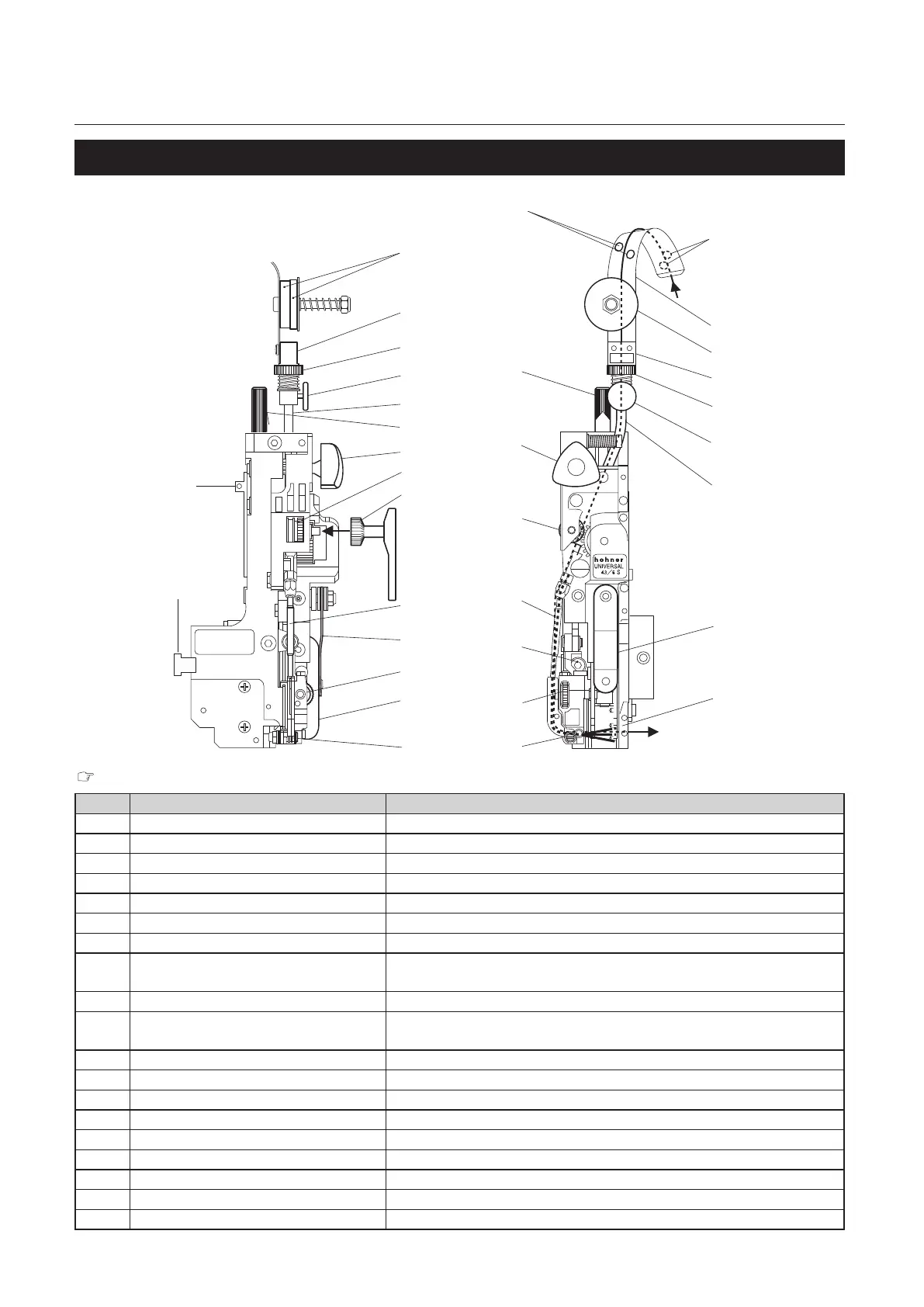

2-6. Stitcher head
[1]
[2]
[2]
[3]
[4]
[5]
[6]
[3]
[4]
[5]
[6]
[7]
[7]
[8]
[8]
[9]
[9]
[10]
[10]
[11]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[15]
[13]
[16]
[14]
”3. Stitcher Head” (p.4-4)
No. Name Function
[1] Wire guide spring Feeds wire to the saddle stitching section.
[2] Wire guide When setting the wire, pass through the wire among the wire guides.
[3] Felt disks Cleans the wire surface and applies a small amount of oil.
[4] Wire return lock Prevents the wire supplied from returning.
[5] Release disk When lowered, releases the wire return lock.
[6] Fixing knob Fixes the wire guide spring to the wire tube.
[7] Wire tube upper Wire path
[8] Stitch length adjustment knob Wire is cut short when turned clockwise, and long when turned
counterclockwise.
[9] Triangular handle For switching whether to stitch or not
[10] Feed wheels Grip the wire when the triangular handle is set to the stitching
position. When rotated with the adjusting handle, wire is fed.
[11] Wire tube lower Wire path
[12] Mounting bolt Secures the stitcher head to the mounting block.
[13] Balance adjustment wheel When rotated, adjusts the left and right leg length of a stitch.
[14] Wire straightener Straightens the wire.
[15] Leaf spring Holds the former.
[16] Former Cuts the wire and bends it into C shape.
[17] Adjusting handle Used when feeding wire manually. (Accessory)
[18] Tenon block Secures the stitcher head to the mounting block.
[19] Clinching block Performs clinching operations.
