7.9.3.1 [Operating mode] [Pulse] - Concentration
In the Concentration setting mode, only the desired active ingredient concentration is
selected. The pump software then automatically calculates the required metering speed of
the pump.
For this purpose, however
, the pulse interval (ml, l / pulse) of the flow meter used and the
concentration of the metering solution in % must first be entered in the configuration level.
It is then possible to select the required active substance concentration in % or the
dosage rate per pulse [l/Imp, ml/Imp, G/Imp] on the operating level.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

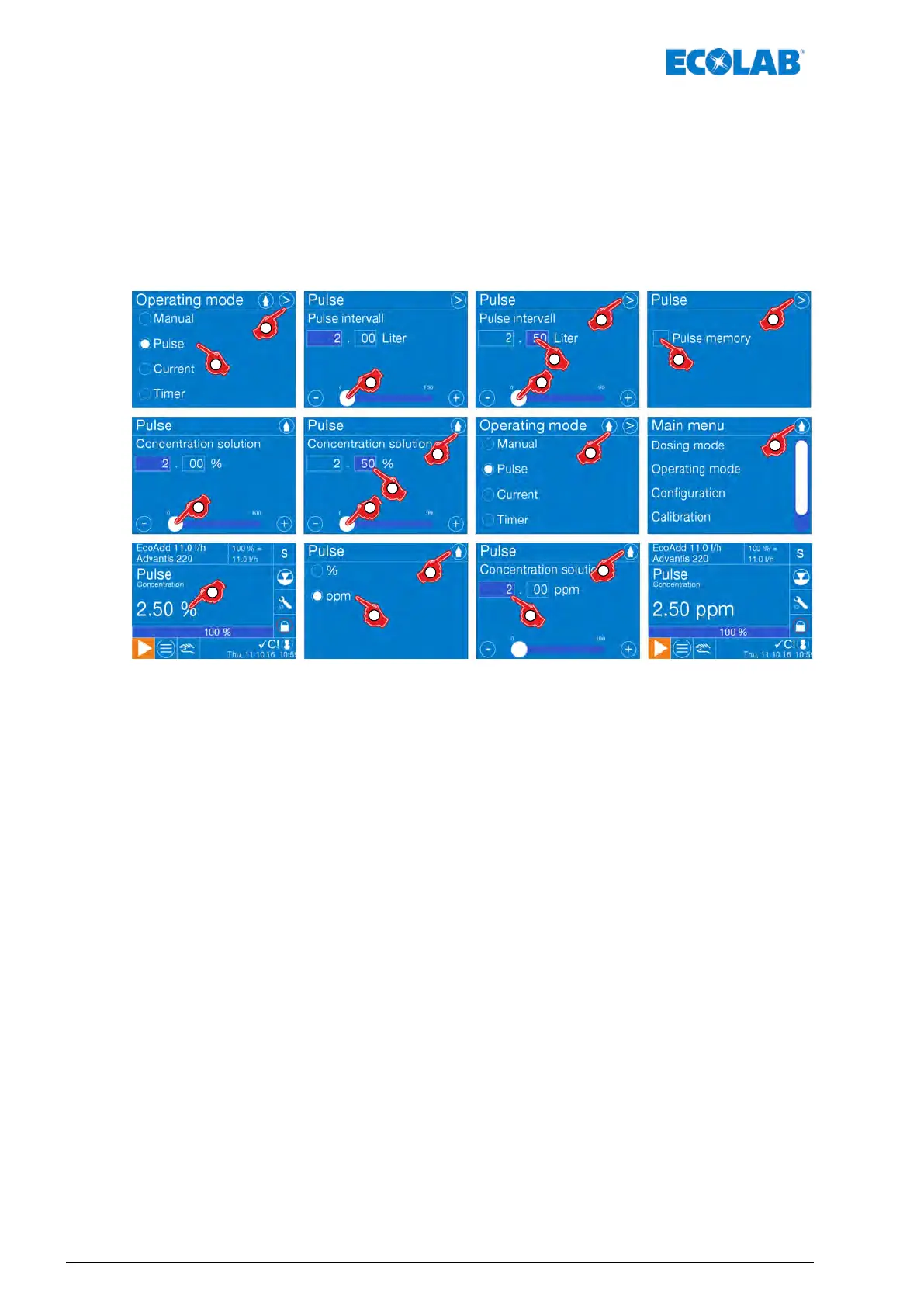

Fig. 38: Operating mode: Pulse
Control / Software
84417102276 Rev. 5-02.2020
