7.10.14.1.1 Metering monitoring
When the function “Metering monitoring” is activated, an alarm is shown in the pump
display if the flow rate falls below an adjustable limit value. Furthermore it can be selected
whether the pump is stopped on alarm or continues running. Note: The menu item
“Metering monitoring” can only be selected if an oval gear meter is connected to the input
provided for this purpose (see
Ä
Chapter 6.4 ‘Electrical installation’ on page 56).
Factory setting: Without metering monitoring

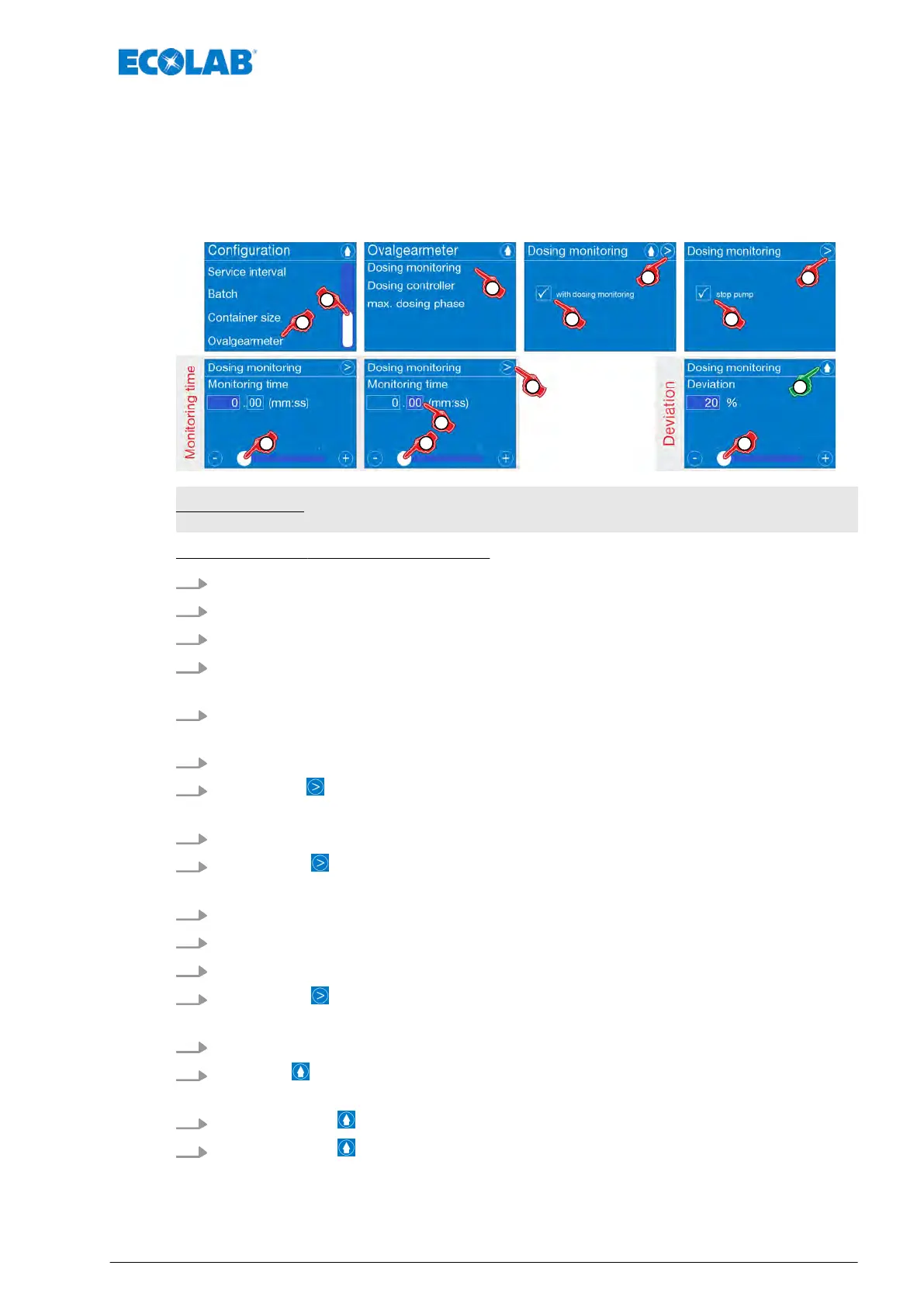

Selection of the [Metering monitoring]:
1.
[Call up the Main menu] :
Ä
Chapter 7.7 ‘Main menu’ on page 73
2.
[Select Configuration] :
Ä
Chapter 7.10 ‘Overview - Configuration’ on page 92
3. Use the scrollbar to scroll to the [Oval gear meter] menu item.
4. [Select Oval gear meter] .
ð
Screen switches to the [selection Oval gear meter].
5. [Select Metering monitoring] .
ð
Screen switches to the [selection Metering monitoring].
6. If required, select the selection field ‘W
ith metering monitoring.’ .
7.
[Click Next]
to save the setting.
ð
Screen change: ‘Metering monitoring
’ / ‘Stop pump’ / ‘Quantity’.
8. If required, select the selection field ‘Stop pump
’ .
9.
[ Click Next]
to save the setting.
ð
Screen change for the setting: ‘Metering monitoring
’ / ‘Monitoring time’.
10. Enter the minutes before the decimal point with the scrollbar
.
11. Select the seconds after the decimal point.
12. Enter the seconds with the scrollbar
.
13.
[ Click Next]
to save the setting.
ð
Screen change for the setting: ‘Metering monitoring
’ / ‘Deviation’.
14. Enter the deviation in percent (%) using the scrollbar
.
15.
Press the
button.
ð
Save and screen change to the configuration overview
.
16.
By pressing the
button, you can return to the [main menu].
17.
By pressing the button, you can return to the [operating display].
