Vital Signs Monitor User Manual Recording
- 109 -
Chapter 17 Recording
A thermal dot matrix recorder is used for the monitor and can support many recording types and
output patient information, measurement data, review data waveform and so forth.

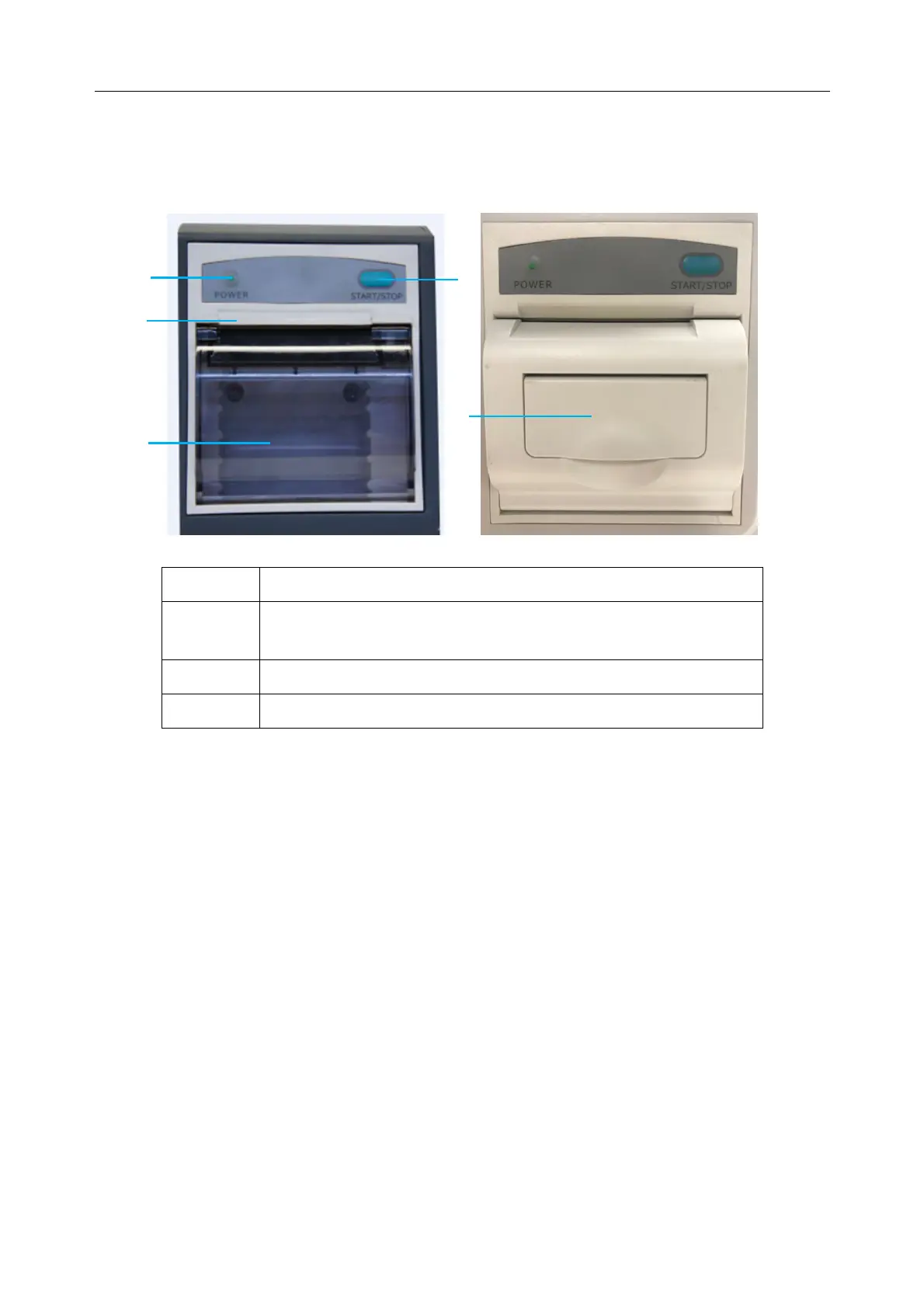

1 Recording indicator
2 Paper feeding key: press this key to start or stop feeding
recording paper without outputting anything on the paper
3 Paper outlet
4 Recorder door
17.1 Performance of the Recorder
Waveform record is printed at the rate of 12.5 mm/s, 25 mm/s or 50 mm/s; default setting is
25 mm/s.
49 mm ~ 50 mm wide printout paper.
Record one SpO
2
waveform; default setting is off.
User-selectable real-time recording time and waveform.
Auto recording interval is set by the user, and the waveform is in accordance with the real
time recording.
NOTE:
It is suggested that the user should not use the recorder when the low battery displays, or
the monitor may be turned off automatically.
17.2 Starting and Stopping Recording
The monitor provides several types of stripe recording. You can start recording following the
procedure below:
1
3
4
2
4
To Next Page
