Using the Auto Take-up
Reel Unit
The Auto Take-up Reel Unit automatically takes up
media as it is printed, improving the efficiency of
unmanned operation.
The Auto Take-up Reel Unit for this printer can take up
media in either of the following directions.

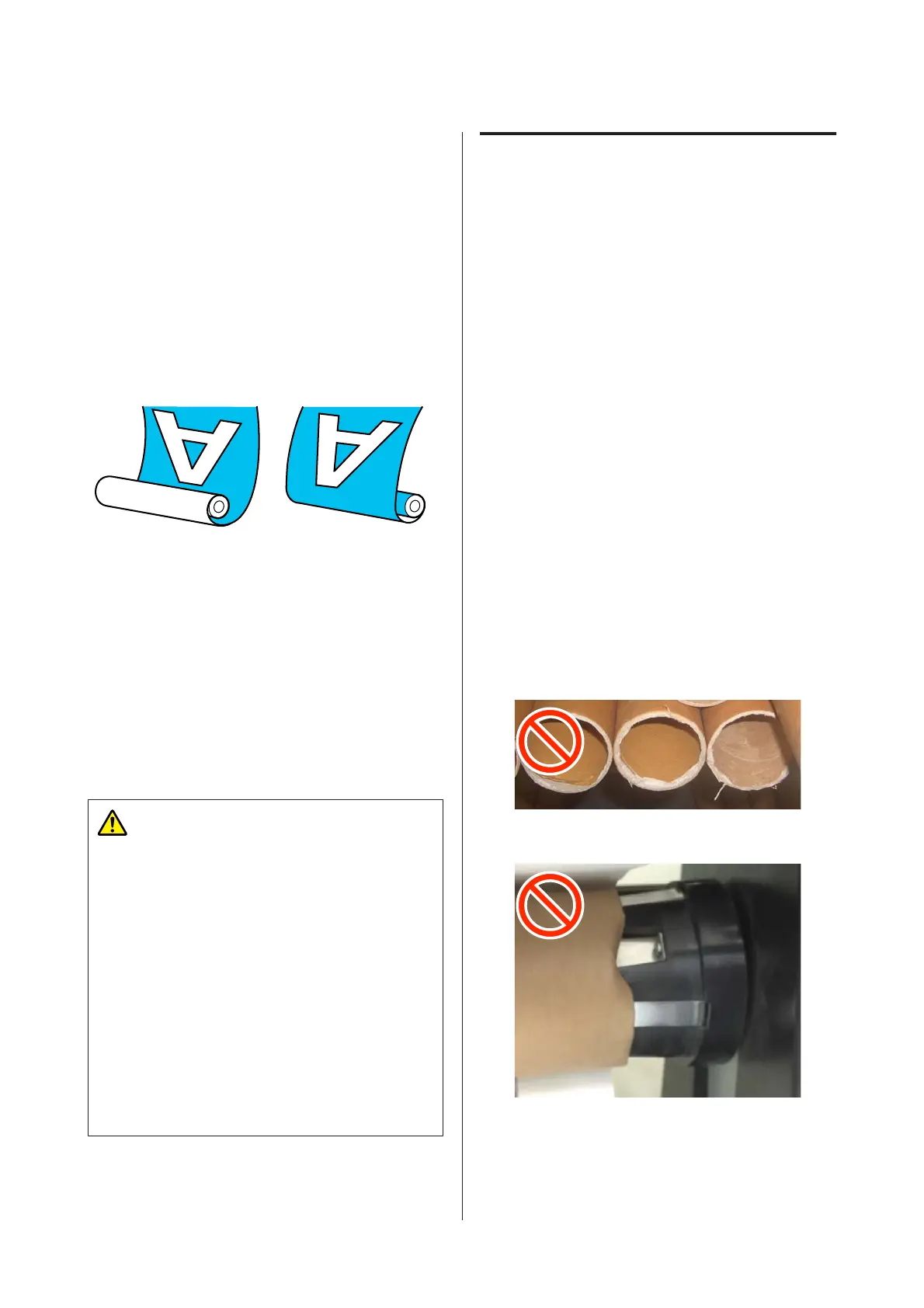

Printed side in Printed side out
Taking-up with printed side in places the printed
surface on the inside of the roll. “Printed side in” is
recommended in most situations.
Taking-up with printed side out places the printed
surface on the outside of the roll.
You can check the procedure in a video on YouTube.
Video Manual
Caution:
❏ Follow the instructions in the manual when
loading media or roll cores or removing media
from the take-up roll.
Dropping media, roll cores, or take-up rolls
could result in injury.
❏ Be sure that your hands or hair do not get
caught in the Media Feeding Unit or Auto
Take-up Reel Unit while it is operating.
Failure to observe these precautions could
result in injury.
❏ Do not put your hand inside the dryer. Failure
to observe the necessary precautions could
result in burns.
Important points for correct
take-up
Observe the following points for correct take-up of
media.
❏ We recommend using a take-up roll core with the
same width as the media. If a take-up roll core of a
different width is used, the take-up roll core may
bend, and the media will be taken up incorrectly.
❏ We recommend “printed side in” for the take-up of
media. “Printed side out” may cause the media to
move around and create a large misalignment with
the roll. When take-up cannot be done correctly
with “printed side out”, do take-up using “printed
side in”.
❏ Media smaller than 36 inches wide may move
around and be taken up incorrectly.
❏ Do not attach take-up roll cores like the ones shown
in the following figure. The take-up tension will be
uneven and the core will spin loosely. As a result, the
paper cannot wind correctly, which may cause
banding in the print results.
Edges are worn
Deformed
SC-F10000 Series User's Guide
Basic Operations
74
