Feasa ICT Series User Manual

FEASA LED ANALYSER
ICT VERSION
Capture Sequence Mode
GetSequenceTimesAll - Get the Duty Cycle of the Sequence for all
fibers
Transmit Receive

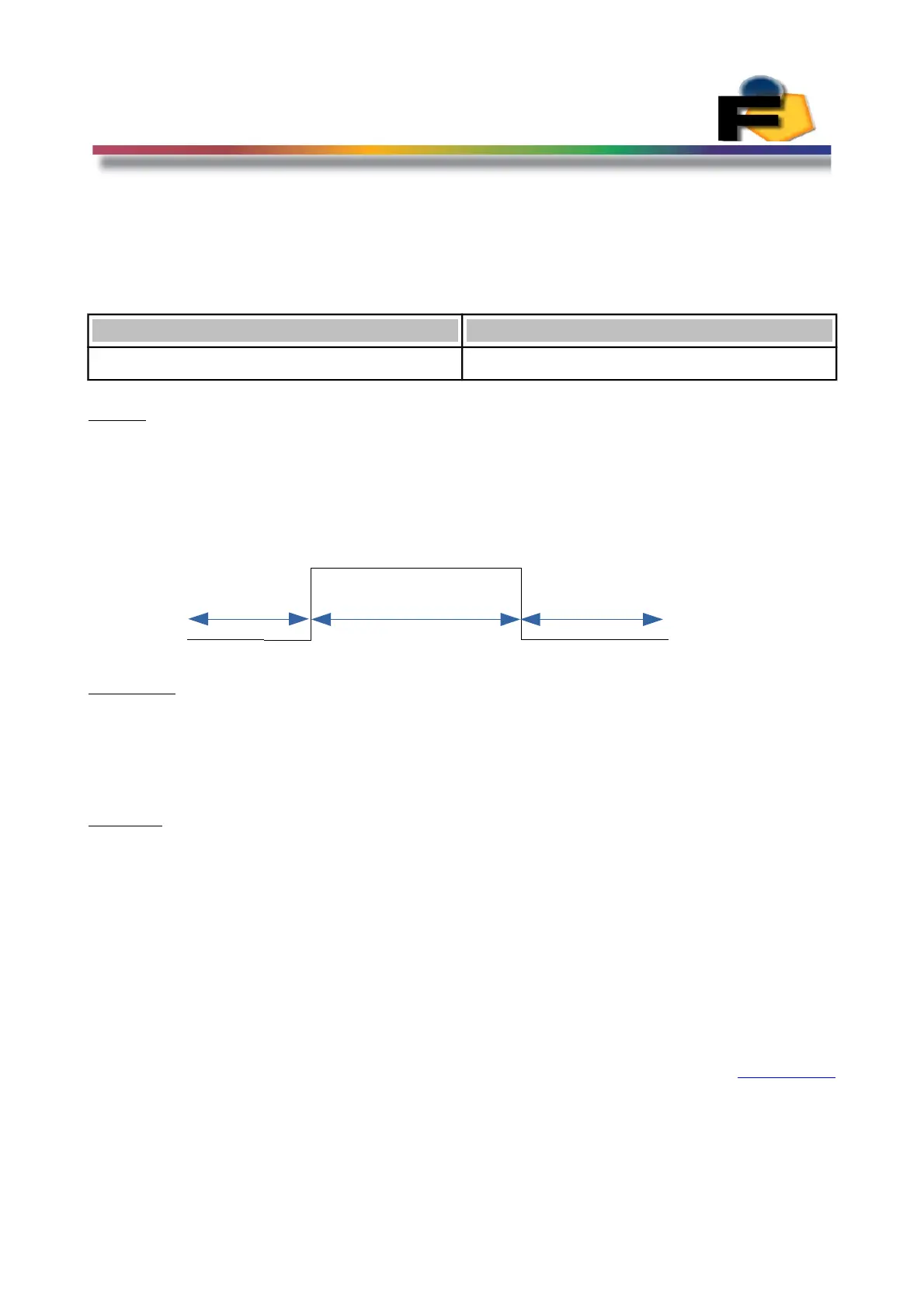

getsequencetimesall Toff1 Ton Toff2
Where:
ALL represents the total number of Fibers used in the sequence capture.
Toff1 represents the time the LED is off at the beginning of the sequence.
Ton represents the time the LED is on during the sequence.
Toff2 represents the time the LED is off at the end of the sequence.
Description
This command returns three time intervals for each Fiber. The times are in milliseconds and
represent the time the LED is 'off' at the beginning, the 'on' time and the 'off' time at the end
of the sequence. A valid capturesequence command must be issued before this command in
order to get valid data. The resolution of the times Toff1, Ton and Toff2 depends on the
sequence capture and sequence wait time settings.
Example:
The PC transmits getsequencetimesall to the LED Analyser to instruct it to output the time
intervals for Fiber 01, Fiber 02, Fiber 03, Fiber 04, ......
getsequencetimesall
Toff1 = 00350ms Ton = 00340 ms Toff2 = 76910ms
Toff1 = 00350ms Ton = 00340 ms Toff2 = 76910ms
Toff1 = 00350ms Ton = 00340 ms Toff2 = 76910ms
Toff1 = 00350ms Ton = 00340 ms Toff2 = 76910ms
.
.
.
.
Back to Index
126
Toff1
Ton
Toff2
1
0
