Feasa ICT Series User Manual

FEASA LED ANALYSER
ICT VERSION
Synchronous Serial Mode
Initialize the LED Analyser
This command will initialize the LED Analyser and make it ready for a Capture command. The
sequence for this command is shown in Figure 21.
Binary 10101010 (0xAA) is clocked into the LED Analyser while the Addr0/LA_Select signal is
held high.
The command is clocked in on the falling edge of SCK.

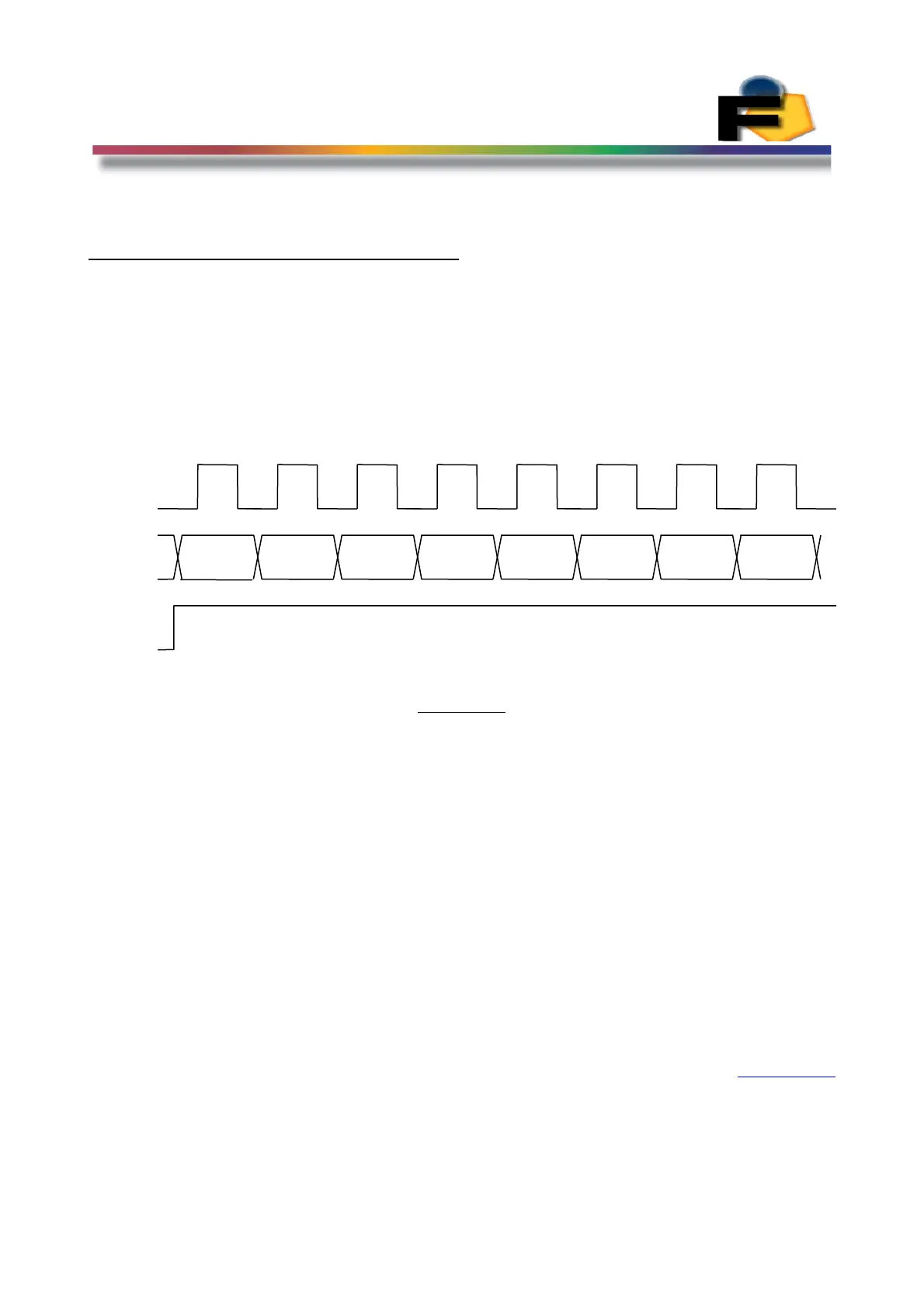

Figure 21.
The signal Addr0/LA_Select must be driven high while 0xAA is clocked into the Analyser.
Back to Index
36
SCK
SIn
LA Select
MSB=1
Bit6=0 Bit5=1 Bit4=0 Bit3=1 Bit2=0 Bit1=1 Bit0=0
