Feasa ICT Series User Manual

FEASA LED ANALYSER
ICT VERSION
Synchronous Serial Mode

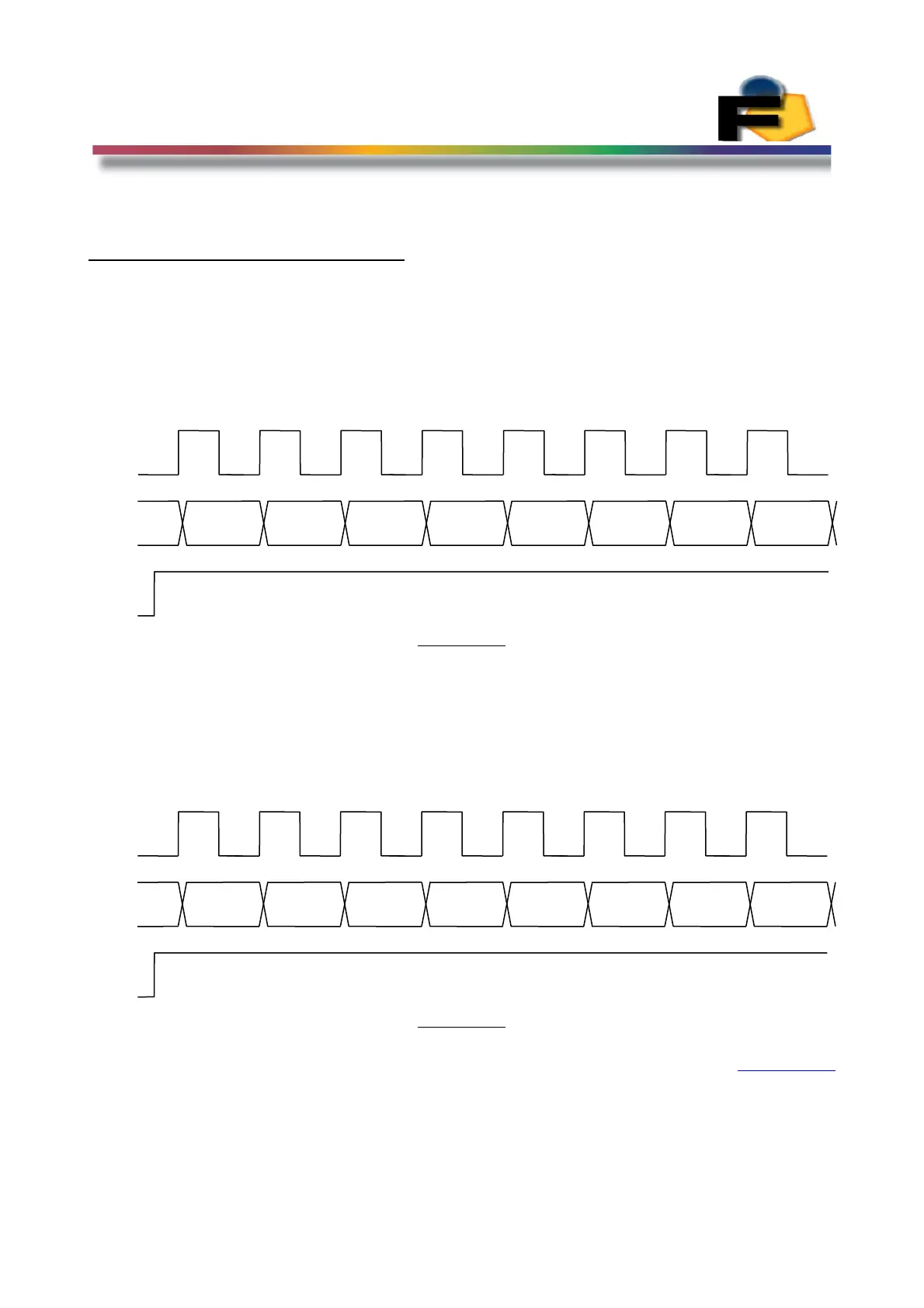

Capture Command Timing
Transmit Command Code to LED Analyser
Figure 23.
Receive Status Code from LED Analyser
Figure 24.
Back to Index
39
SCK
0
SIn
LA Select
1 2 3 4 5 6 7
MSB Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
SCK
0
SOut
LA Select
1 2 3 4 5 6 7
MSB Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
