194
8.6 Page Edge Filler (ADF)
8.6 Page Edge Filler (ADF)
Depending on the state of the documents, the shadow of the scanned document appears in the end portion
of the output image and black thin lines may be generated.
If this is the case, you can improve the output image by using the “Page Edge Filler” function. This func-
tion fills the end portion of the image so that it looks clean.
Configure the settings for the Page Edge Filler as follows:
1. Start up the Software Operation Panel.
Refer to “8.1 Scanner Settings” on page 177.

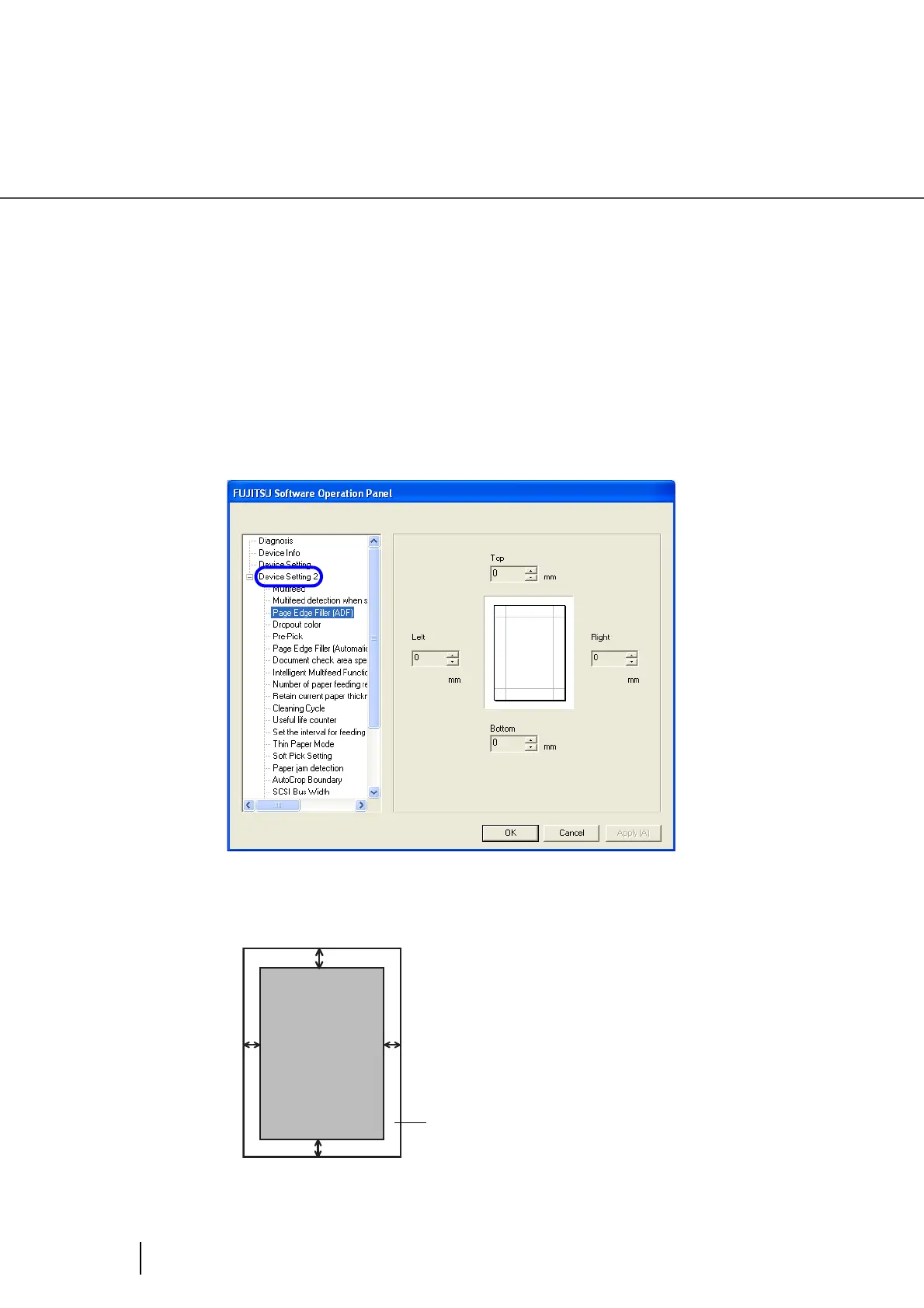

2. Select [Device Setting 2] from left side list in the window, and select
[Paper Edge Filter (ADF)] from its lower level.
3. Specify the length for each end section; top, bottom, right, and left, to fill
the end sections.
D
T
L
R
T : Top edge = 0 ~ 15 mm
D : Bottom edge = -7 ~ 7 mm
R : Right edge = 0 ~ 15 mm
L : Left edge = 0 ~ 15 mm
Filled area
Generated
(can be set in increments of 1mm)
To Next Page
