1 NVMe cable to connector “C2/C3” on the first RAID controller in riser
module 1
2 NVMe cable to connector “C0/C1” on the first RAID controller in riser
module 1

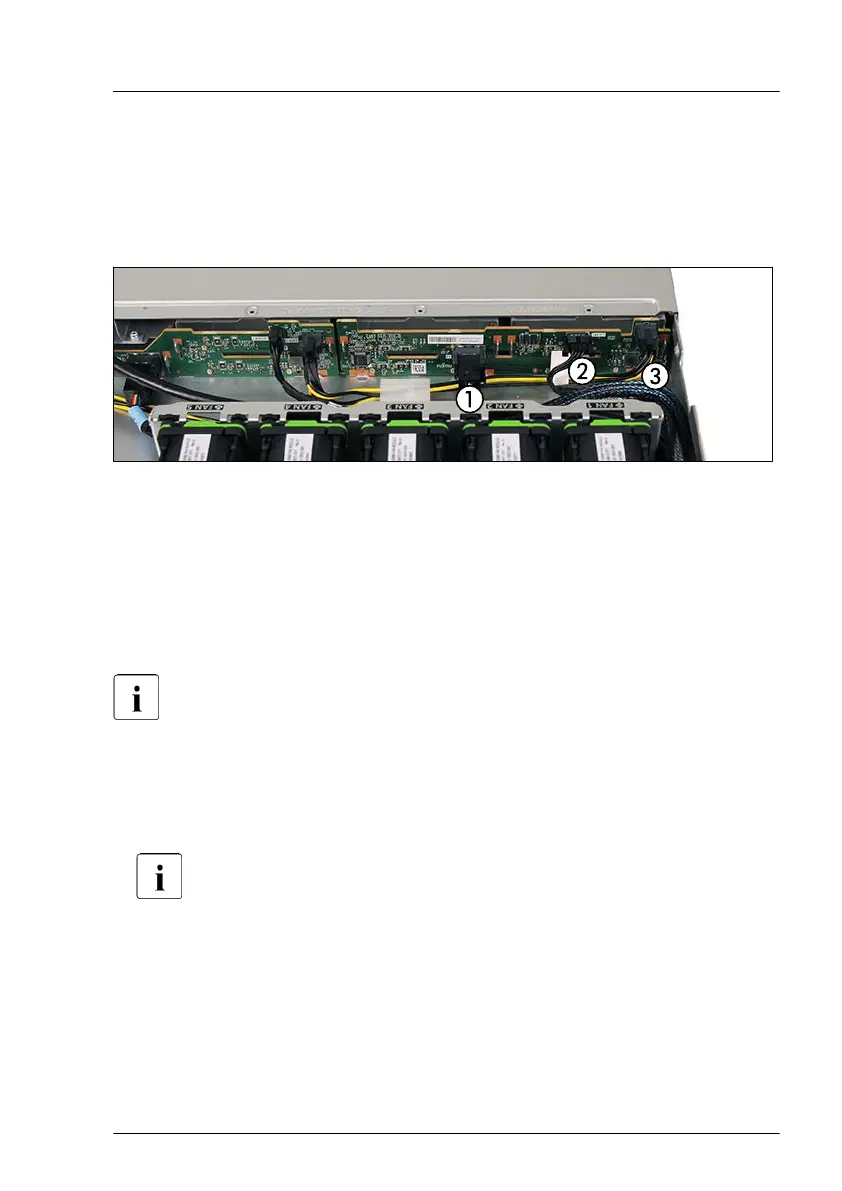

Figure 86: Connecting the cables (SAS/SATA variant)
▶
Connect the following cables to the HDD backplane:
1 SAS cable
2 OOB cable
3 Power cable
For the cable plan, see "Appendix B" on page 363
.
Concluding steps
▶
Insert all HDD/SSD modules, see "Installing a 2.5-inch HDD/SSD module"
on page 140
.
Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
▶
Insert all dummy modules, see "Installing a 2.5-inch dummy module" on
page 143.
▶
"Reassembling" on page 53
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
Hard disk drive (HDD) / solid state disk (SSD)
RX1330 M5 Upgrade and Maintenance Manual 153
