Name: Fujitsu PRIMERGY RX1330 M5
Brand: Fujitsu
Rating: 5 (1 reviews)

To Next Page

To Previous Page

23RX1330M5

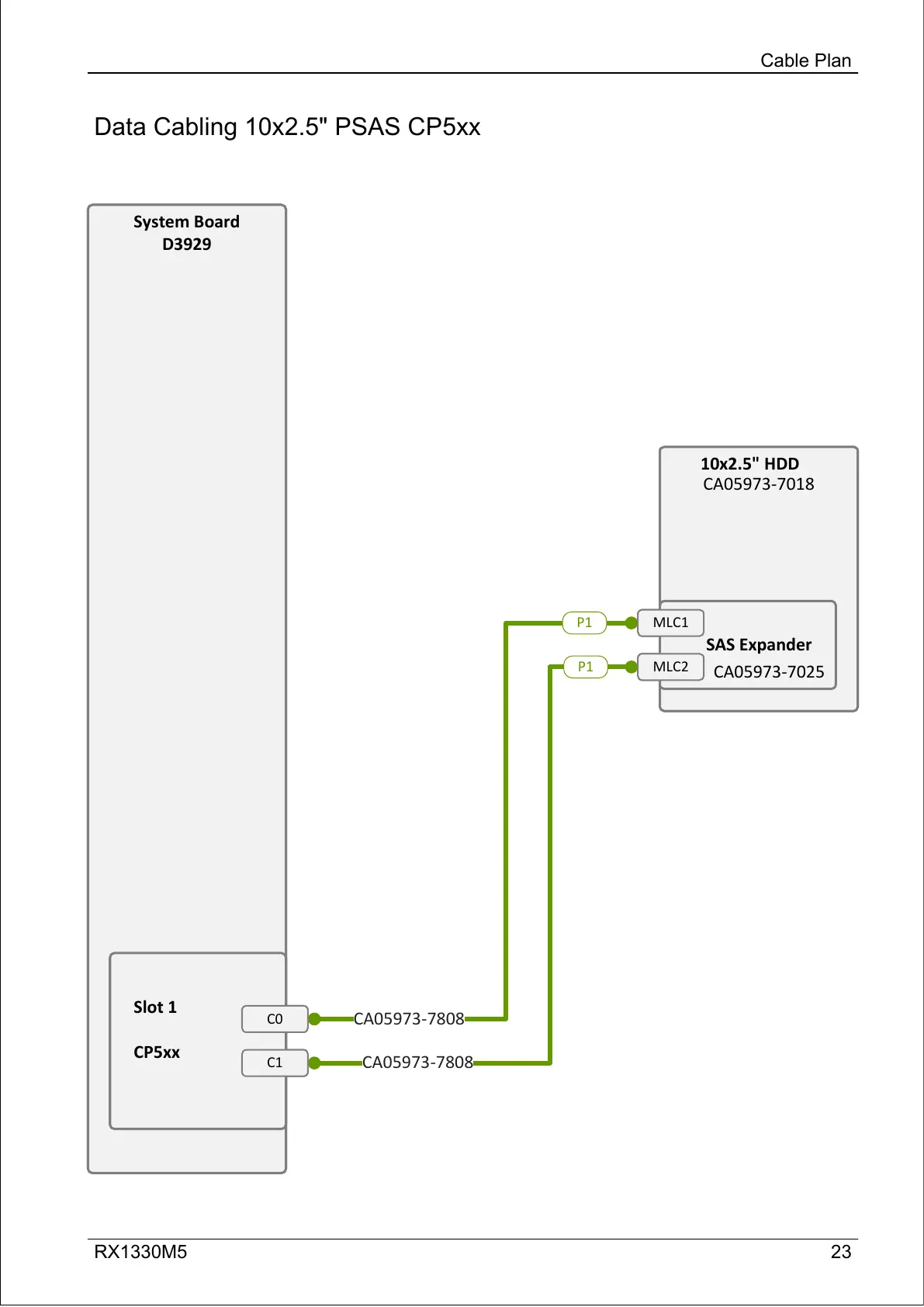

Data Cabling 10x2.5" PSAS CP5xx

Cable Plan

CA05973-7808

10x2.5" HDD

SAS Expander

MLC1

MLC2

CA05973-7018

CA05973-7025

10x2.5" HDD

SAS Expander

MLC1

MLC2

CA05973-7018

CA05973-7025

System Board

D3929

Slot 1

CP5xx

System Board

D3929

Slot 1

CP5xx

Table of Contents7
Introduction17
Concept and Target Groups of this Manual17
Notational Conventions17
Before You Start19
Basic Information19
Proceeding19
Advanced Thermal Design (ATD)19
Installing Optional Components20
Replacing a Defective Component20
Classification of Procedures21
Assignment of Unit Categories21
Customer Replaceable Units (CRU)21
Upgrade and Repair Units (URU)22
Field Replaceable Units (FRU)23
Average Task Duration24
Tools You Need at Hand25
Documentation Overview26
Downloading Manuals26
List of Documents26
Important Information29
Introduction29
Safety Instructions29
Basic Safety Instructions29
Before Starting up30
Installation and Operation30
Batteries33
Working with Optical Disk Drives (Odds) and Media33
Laser Information35
Modules with Electrostatic-Sensitive Devices (ESD Modules)35
Transporting the Server37
Installing the Server in the Rack38
Other Important Information38
Energy Star39
CE Conformity39
FCC Class a Compliance Statement40
Environmental Protection41
Basic Hardware Procedures43
Using Diagnostic Information43
Proceeding43
Locating the Defective Server43
Determining the Error Class44
Locating the Defective Component44
Removing the Front Cover with Lock45
Shutting down the Server46
Disconnecting the Power Cord47
Getting Access to the Component49
Safety Notes49
Extending the Server out of the Rack49
Removing the Server from the Rack50
Removing the Top Cover52
Reassembling53
Safety Notes53
Installing the Top Cover54
Installing the Server in the Rack55
Sliding the Server into the Rack57
Connecting the Power Cord57
Connecting the Power Cord (Standard PSU)57
Connecting the Power Cord (Hot-Plug PSU)59
Switching on the Server60
Installing the Front Cover with Lock61
Handling Riser Modules62
Positions of Riser Modules62
Removing a Riser Module63
Installing a Riser Module64
Handling the Air Duct65
Removing the Air Duct65
Installing the Air Duct66
Basic Software Procedures69
Validation69
Starting the Maintenance Task69
Suspending Bitlocker Functionality69
Disabling the Boot Watchdog70
Removing Backup and Optical Disk Media72
Verifying and Configuring the Backup Software Solution72
Switching on the ID Indicator72
Completing the Maintenance Task73
Updating or Recovering the BIOS and Irmc S673
Verifying System Information Backup or Restore76
Updating Expansion Card Firmware77
Reconfiguring the Backup Software Solution78
Resetting the Boot Retry Counter79
Enabling the Boot Watchdog80
Enabling Replaced Components in the BIOS81
Verifying the System Time Settings82
Viewing and Clearing the System Event Log (SEL)83
Updating the NIC Configuration File in a Linux and Vmware Environment85
Resuming Bitlocker Functionality86
Performing a RAID Array Rebuild87
Looking for MAC/WWN/GUID and SAS Addresses88
Basic Information88
Looking for the MAC Address of a LAN Controller88
Looking for the WWN Address of a Fibre Channel Controller89
Looking for the GUID Address of an Infiniband or Omni-Path Controller90
Looking for SAS Addresses of SAS Controllers for External Devices90
Using the Chassis ID Prom Tool91
Configuring LAN Teaming92
Switching off the ID Indicator93
Performing a Fan Test94
Power Supply Unit (PSU)95
Safety Notes95
Basic Information95
Standard Power Supply97
Replacing the Standard PSU97
Redundant Power Supply101
Installing a Hot-Plug PSU101
Removing a Hot-Plug PSU103
Replacing a Hot-Plug PSU106
Replacing the Power Distribution Board (RX1330 M5)108
Replacing the Power Distribution Board (RX1330 M5S)113
Hard Disk Drive (HDD) / Solid State Disk (SSD)119
Safety Notes119
Basic Information120
Handling Hdds or Ssds Without Installation Frame121
Inch HDD and 3.5-Inch Installation Frame121
Inch HDD/SSD and 2.5-Inch Installation Frame122
Inch HDD/SSD and 3.5-Inch Installation Frame124
Inch HDD Configurations126
Overview of Configurations126
Configuration with up to Four HDD Modules126
Installing 3.5-Inch HDD Modules127
Removing 3.5-Inch HDD Modules129
Replacing a 3.5-Inch HDD Module131
Replacing the 4X 3.5-Inch HDD Backplane133
Inch HDD/SSD Configurations136
Overview of Configurations136
Configuration with up to Four HDD / SSD / Pcie SSD Modules136
Configuration with up to Eight HDD/SSD Modules137
Configuration with up to 10 HDD/SSD Modules138
Installing 2.5-Inch HDD / SSD / Pcie SSD Modules138
Removing 2.5-Inch HDD / SSD / Pcie SSD Modules141
Replacing a 2.5-Inch HDD / SSD / Pcie SSD Module143
Replacing the Left Side 4X 2.5-Inch HDD Backplane145
Replacing the Right Side 4X 2.5-Inch HDD Backplane149
Replacing the 4X 2.5-Inch HDD Backplane (RX1330 M5S)154
Replacing the 10X 2.5-Inch HDD Backplane159
Replacing the SAS Expander Board164
Upgrading Configuration from up to Four to up to Eight 2.5-Inch Hdds/Ssds167
Fans171
Safety Notes171
Basic Information171
Replacing a Fan Module174
Expansion Cards and Backup Units179
Safety Notes179
Basic Information180
Handling Slot Brackets182
Installing Slot Brackets182
Removing Slot Brackets184
Handling SFP+ Transceiver Modules184
Installing SFP+ Transceiver Modules184
Removing SFP+ Transceiver Modules190
Expansion Cards and Riser Cards193
Variants of Riser Modules193
Installing an Expansion Card195
Removing an Expansion Card200
Preliminary Steps201
Suspending Bitlocker Functionality" on Page201
If Applicable, "Removing the Front Cover with Lock" on Page201
Shutting down the Server" on Page201
Disconnecting the Power Cord" on Page201
Getting Access to the Component" on Page201
Replacing an Expansion Card202
Replacing a Riser Card204
Remove the Corresponding Riser Module, See Page205
Upgrading to the Full Height Riser Module206
Flash Backup Unit (FBU)210
Positions of the Fbus210
Installing an FBU211
Removing an FBU216
Replacing an FBU219
Main Memory221
Safety Notes221
Basic Information222
Slots and Features222
General Memory Population Rules223
Installing Memory Modules223
Removing Memory Modules226
Replacing Memory Modules228
Processor (CPU)231
Safety Notes231
Basic Information231
Upgrading or Replacing the CPU232
Replacing the Heat Sink241
Accessible Drives243
Basic Information243
Safety Notes243
Optical Disk Drive (ODD)243
Positions of the ODD243
Storing the ODD Latch247
Installing the ODD247
Removing the ODD251
Replacing the ODD254
Front Panel257
Safety Notes257
Basic Information257
Common Operation Panel (COP)258
Replacing the COP258
Front VGA264
Positions of the Front VGA Module264
Installing the Front VGA in the Front VGA Module264
Replacing the Front VGA in the Front VGA Module269
Installing the Front VGA270
Replacing the Front VGA274
Front USB275
Replacing the Front USB in the Front VGA Module275
Replacing the Front USB278
Serial Interface283
Safety Notes283
Installing the Serial Interface283
Removing the Serial Interface286
Replacing the Serial Interface288
System Board and Components291
Safety Notes291
Basic Information291
CMOS Battery292
Replacing the CMOS Battery292
Trusted Platform Module (TPM)294
TPM Kit294
Position of the TPM295
Installing the TPM295
Removing the TPM298
Replacing the TPM303
Irmc Microsd Card305
Note for Embedded Lifecycle Management (Elcm)305
Installing the Irmc Microsd Card306
Removing the Irmc Microsd Card307
Replacing the Irmc Microsd Card309
M.2 Ssd311
Slots and Bolts for M.2 Ssds311
Installing an M.2 SSD312
Removing an M.2 SSD316
Replacing an M.2 SSD318
Dual Microsd 64GB Enterprise319
Position of the Dual Microsd 64GB Enterprise319
Installing the Dual Microsd 64GB Enterprise319
Removing the Dual Microsd 64GB Enterprise322
Replacing the Dual Microsd 64GB Enterprise324
Replacing the Microsd Card326
System Board328
Replacing the System Board328
Disconnecting the Power Cord" on Page329
Getting Access to the Component" on Page329
Removing the Air Duct" on Page329
Remove the Heat Sink, See "Removing the Heat Sink" on Page332
Install the Heat Sink, See "Installing the Heat Sink" on Page333
Concluding Steps333
Reassembling" on Page334
Connecting the Power Cord" on Page334
Switching on the Server" on Page334
Mechanical Overview337
Server Front337
Inch HDD Configuration337
Inch HDD/SSD Configuration337
Server Rear339
Server Rear with Standard PSU339
Server Rear with Hot-Plug Psus340
Server Interior341
Servers with Standard PSU341
Servers with Hot-Plug Psus342
Connectors and Indicators343
Connectors and Indicators on the System Board343
System Board D3929343
List of Used Cables366
List of Used Cables (Continuation)367
Basic Cabling 4X3.5368
Basic Cabling 4X2,5" and 8X2.5369
Basic Cabling 4X Pcie SSD + 4X HDD370
Basic Cabling 10X2.5371
Power Cabling 4X3.5" Std372
Power Cabling 4X3.5" Red373
Power Cabling 4X2.5" and 8X2.5" Std374
Power Cabling 4X2,5" and 8X2.5" Red375
Power Cabling 4X Pcie SSD + 4X HDD Red376
Power Cabling 10X2.5" Red377
Data Cabling 4X3.5378
Data Cabling 4X3.5" PSAS379
Data Cabling 4X3.5" PRAID Cp/Ep5Xx380
Data Cabling 4X2.5381
Data Cabling 4X2.5" and 8X2.5" PSAS Cp5Xx382
Data Cabling 4X2.5" and 8X2.5" PRAID Cp/Ep5Xx383
Data Cabling 4X Pcie SSD + 4X HDD SATA384
Data Cabling 4X Pcie SSD + 4X HDD SAS385
Data Cabling 10X2.5" PSAS Cp5Xx386
Data Cabling 10X2.5" PRAID Cp/Ep5Xx387
SERIAL Ext388
Dual Microsd 64GB Enterprise389
List of Used Cables393
Basic Cabling 4X2,5394
Basic Cabling 4X Pcie SSD395
Power Cabling 4X2.5" Std396
Power Cabling 4X2.5" Red397
Power Cabling 4X Pcie SSD Red398
Data Cabling 4X2.5399
Data Cabling 4X2.5" PSAS Cp5Xx400
Data Cabling 4X2.5" PRAID Cp/Ep5Xx401
Data Cabling 4X Pcie SSD PRAID Ep5Xx402
SERIAL Ext403
Dual Microsd 64GB Enterprise404
