10.2 Basic information
10.2.1 Slots and features
CPU
Slot 2
Slot 1
external connectors
LAN 1
Management
LAN
VGA
Shared LAN 1
USB 2.0
USB 2.0
USB 3.2
Gen 2
DIMM 2A
DIMM 1A
DIMM 2B
DIMM 1B
Micro
SD
SSD1
M.2
M.2
SSD2
TPM
Slot 3
iRMC
S6
JP3
PWR1
FRONT
PWR2
P30
ROC
INDICATE
CSS
SATA
ODD
Front VGA
SMBSYS
USB 5
SATA
0-3
PC98
SERIAL
Intel
C256
USB 3.2
Gen 2
LAN 2
FAN1
SYS
FAN2
SYS
Battery
FAN3
SYS
HDD
LED
FAN4
SYS
FAN5
SYS
FAN6
SYS
ODD
PWR
PANEL
TYPE C
FRONT
JP2 JP1
Clear RTC

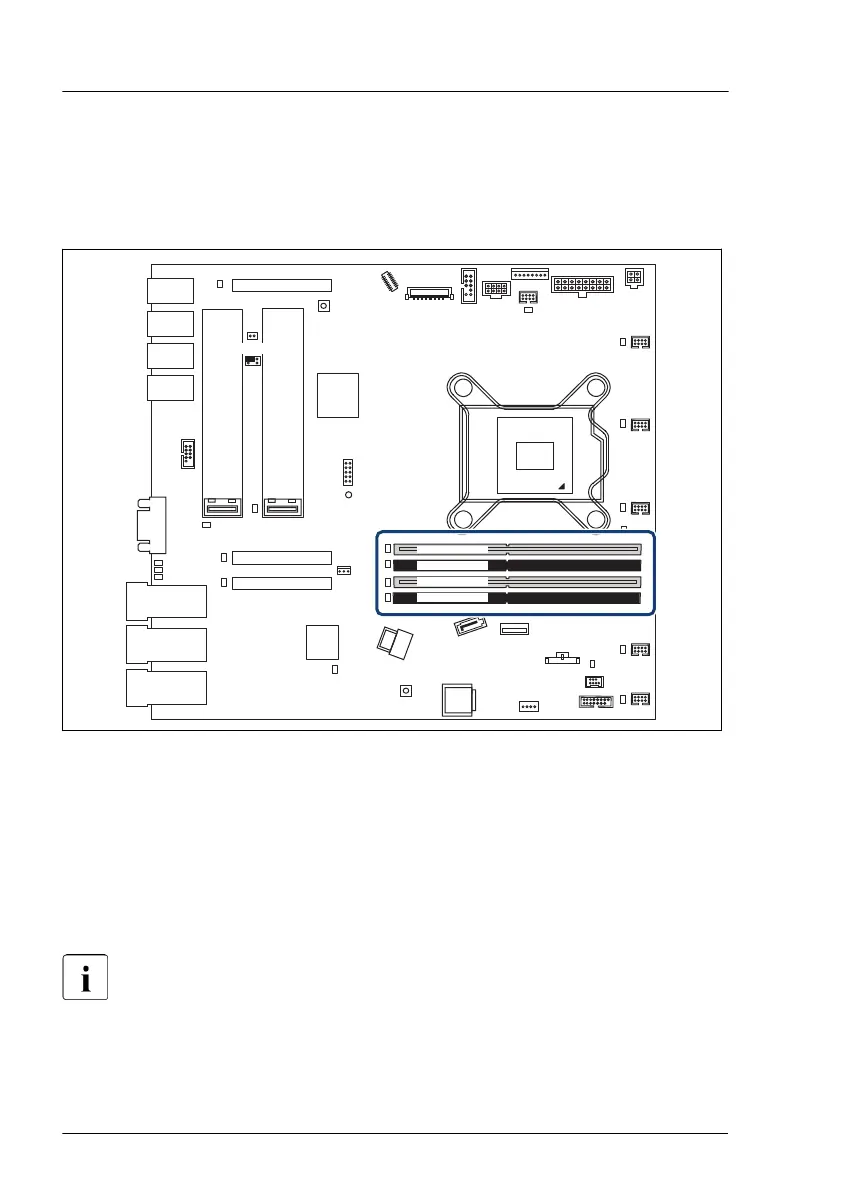

Figure 167: Slots of the main memory
–
Dual DDR4 memory architecture
–
Four memory DIMM sockets
–
Up to four DDR4 UDIMMs with up to 128
GB
The notation of the CPU, memory channels and DIMM sockets correspond to
the silk print on the system board.
For system relevant information, see the hardware configurator of your
server available online at the following address:
https://www.fujitsu.com/emeia/products/computing/servers
For Japan:
https://www
.fujitsu.com/jp/products/computing/servers/primergy/
Main memory
222 Upgrade and Maintenance Manual RX1330 M5
