16.1.3.2 Servers with hot-plug PSUs

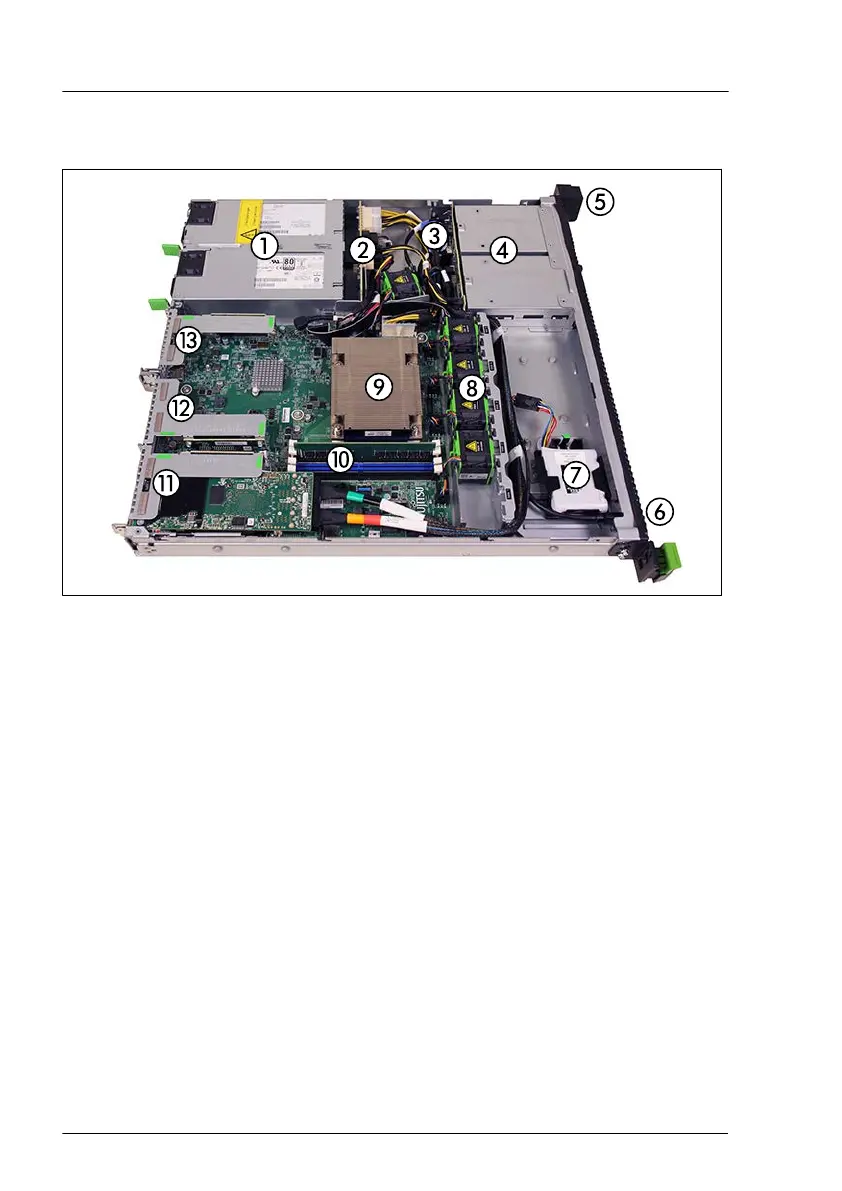

Figure 271: Interior (example RX1330 M5S)
1 Up to two PSUs / dummy cover
2 PDB
3
HDD backplane
4 Up to 4x 2.5-inch HDDs/SSDs / dummy
modules
5 COP
6 Front VGA connector
7 FBU
8 Fan modules
9 CPU
10 Main memory
11 Riser module 1
12 Riser module 2
13 Riser module 3
The front VGA connector (6) is an option.
Appendix A
342 Upgrade and Maintenance Manual RX1330 M5
