13RX1330M5S

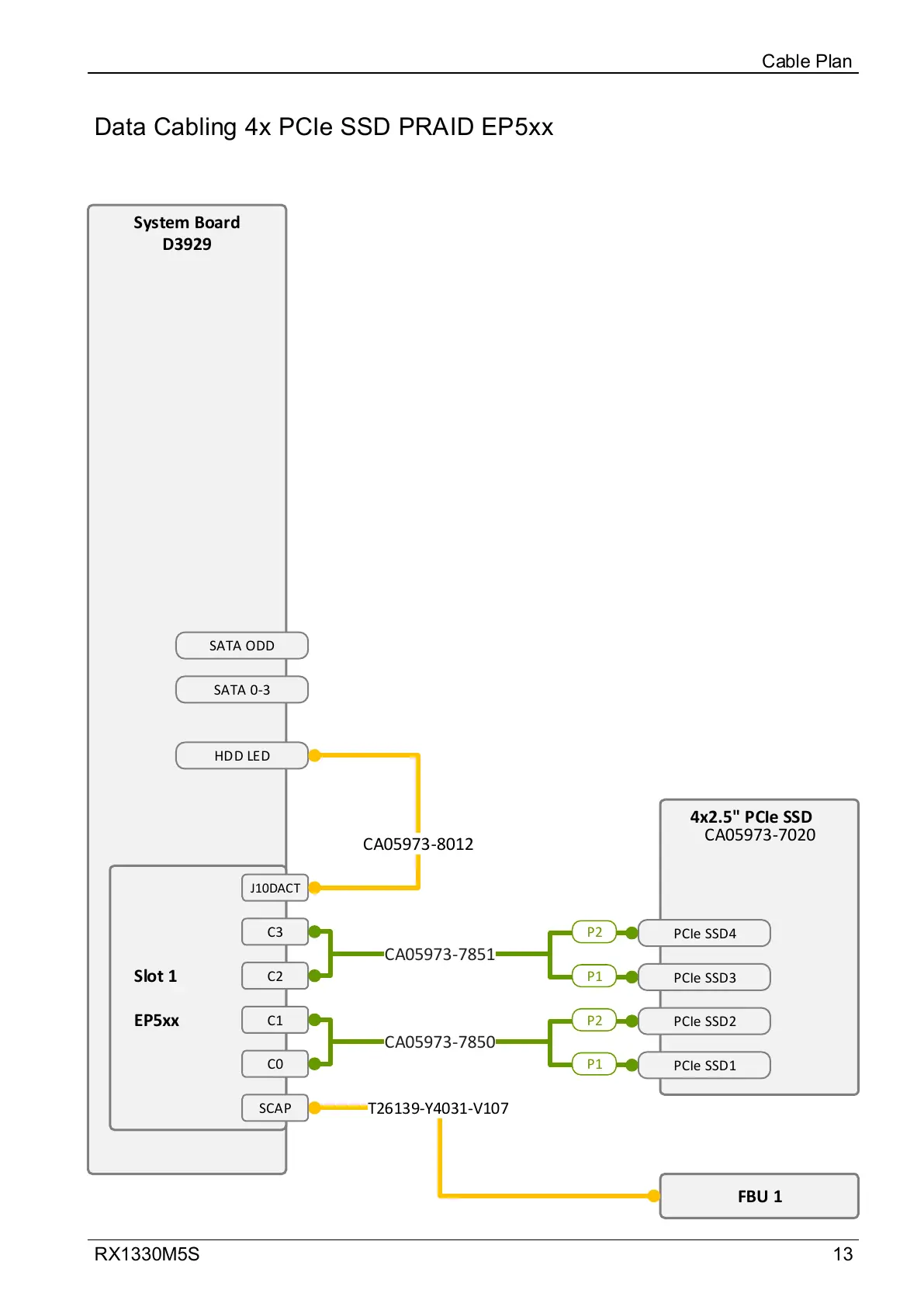

Data Cabling 4x PCIe SSD PRAID EP5xx

Cable Plan

FBU 1

T26139-Y4031-V107

System Board

D3929

SATA ODD

HDD LED

SATA 0-3

Slot 1

EP5xx

SCAP

J10DACT

CA05973-8012

4x2.5" PCIe SSD

PCIe SSD4

PCIe SSD1

CA05973-7020

PCIe SSD3

PCIe SSD2

CA05973-7851

CA05973-7850
