Removing a riser module

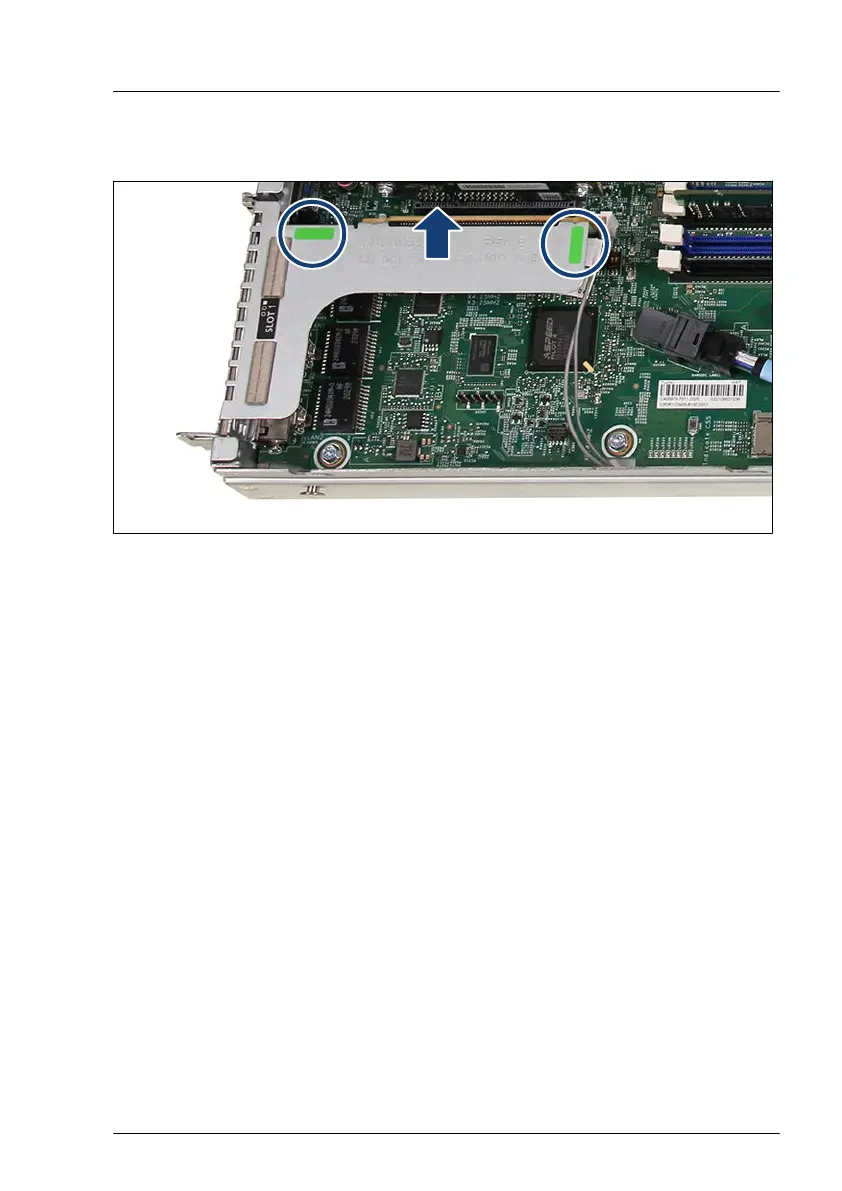

Figure 19: Removing a riser module (example riser module 1)
â–¶
If necessary
, disconnect the cables from the other components.
â–¶
Carefully pull out the corresponding riser module upward using the two
touch points (see circles).
Basic hardware procedures
RX1330 M5
Upgrade and Maintenance Manual
63
62
64
