11RX1330M5

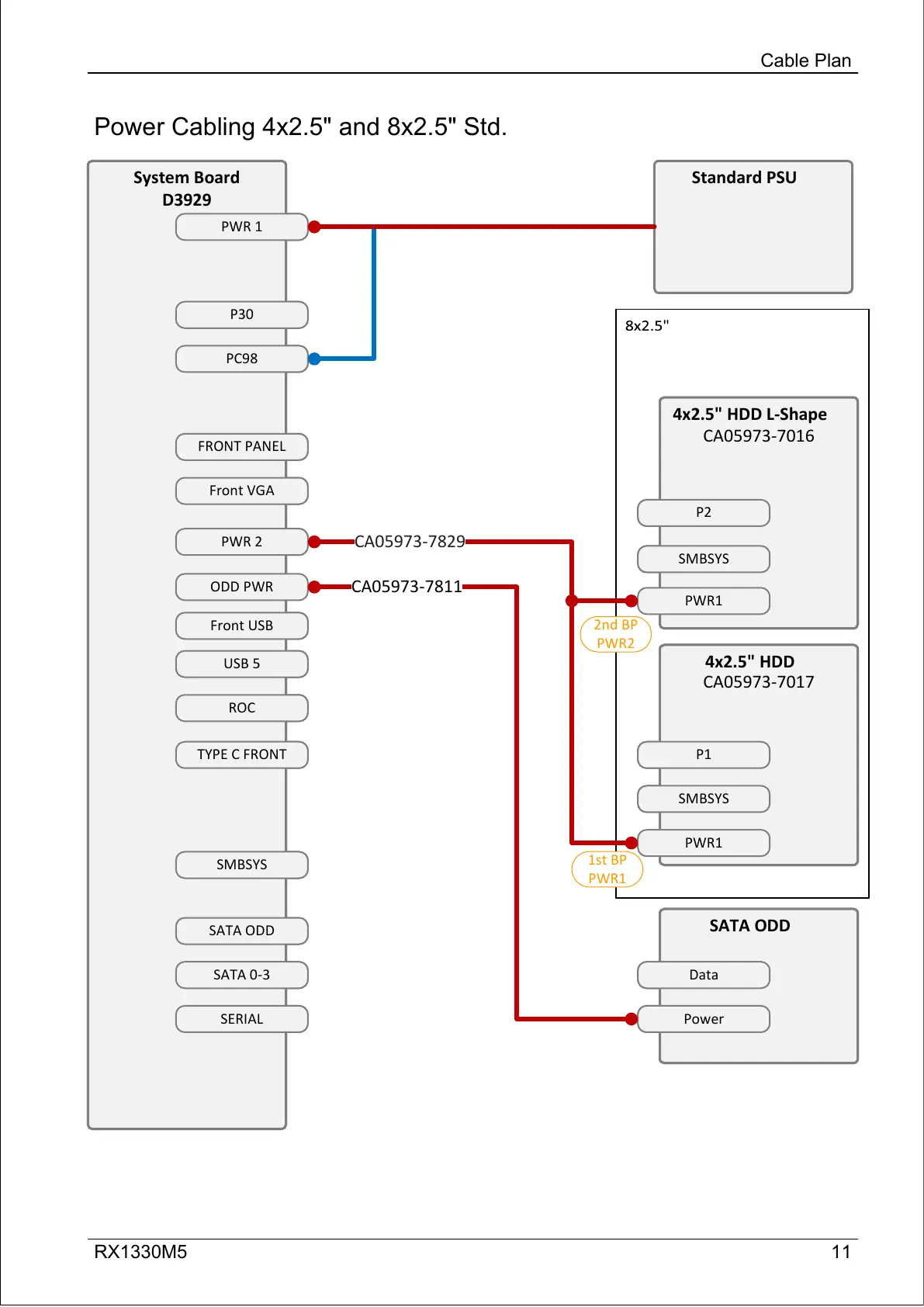

Power Cabling 4x2.5" and 8x2.5" Std.
Cable Plan
System Board
D3929
PWR 1
P30
PWR 2
TYPE C FRONT
FRONT PANEL
Front USB
USB 5
Front VGA
SMBSYS
SATA ODD
SATA 0-3
SERIAL
PC98
ROC
System Board
D3929
PWR 1
P30
PWR 2
TYPE C FRONT
FRONT PANEL
Front USB
USB 5
Front VGA
SMBSYS
SATA ODD
SATA 0-3
SERIAL
PC98
ROC
ODD PWR
4x2.5" HDD L-Shape
P2
SMBSYS
CA05973-7016
4x2.5" HDD L-Shape
P2
SMBSYS
CA05973-7016
4x2.5" HDD
P1
SMBSYS
CA05973-7017
4x2.5" HDD
P1
SMBSYS
CA05973-7017
Standard PSU
PWR1
PWR1
CA05973-7829
SATA ODD
Data
Power
SATA ODD
Data
Power
CA05973-7811
1st BP
PWR1
2nd BP
PWR2
