7.5.9 Replacing the SAS expander board
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Preliminary steps
▶
"Locating the defective server" on page 43
.
▶
If applicable, "Removing the front cover with lock" on page 45.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 49.
Removing the defective SAS expander board

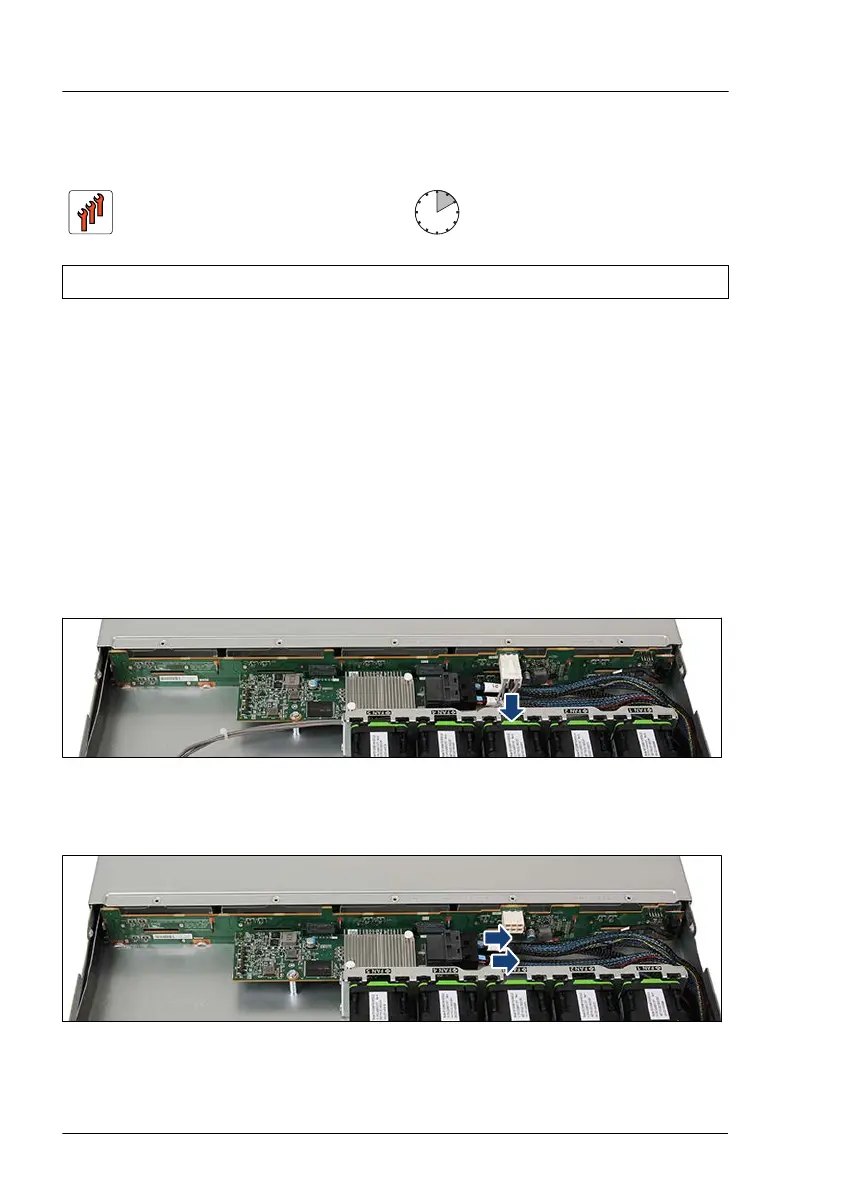

Figure 105: Disconnecting the power cable
▶
Disconnect the power cable from the HDD backplane.
Figure 106: Disconnecting the cables from the SAS expander board
▶
Disconnect all cables from the SAS expander board.
Hard disk drive (HDD) / solid state disk (SSD)
164 Upgrade and Maintenance Manual RX1330 M5
