Fujitsu PRIMERGY RX1330 M5 User Manual

4RX1330M5

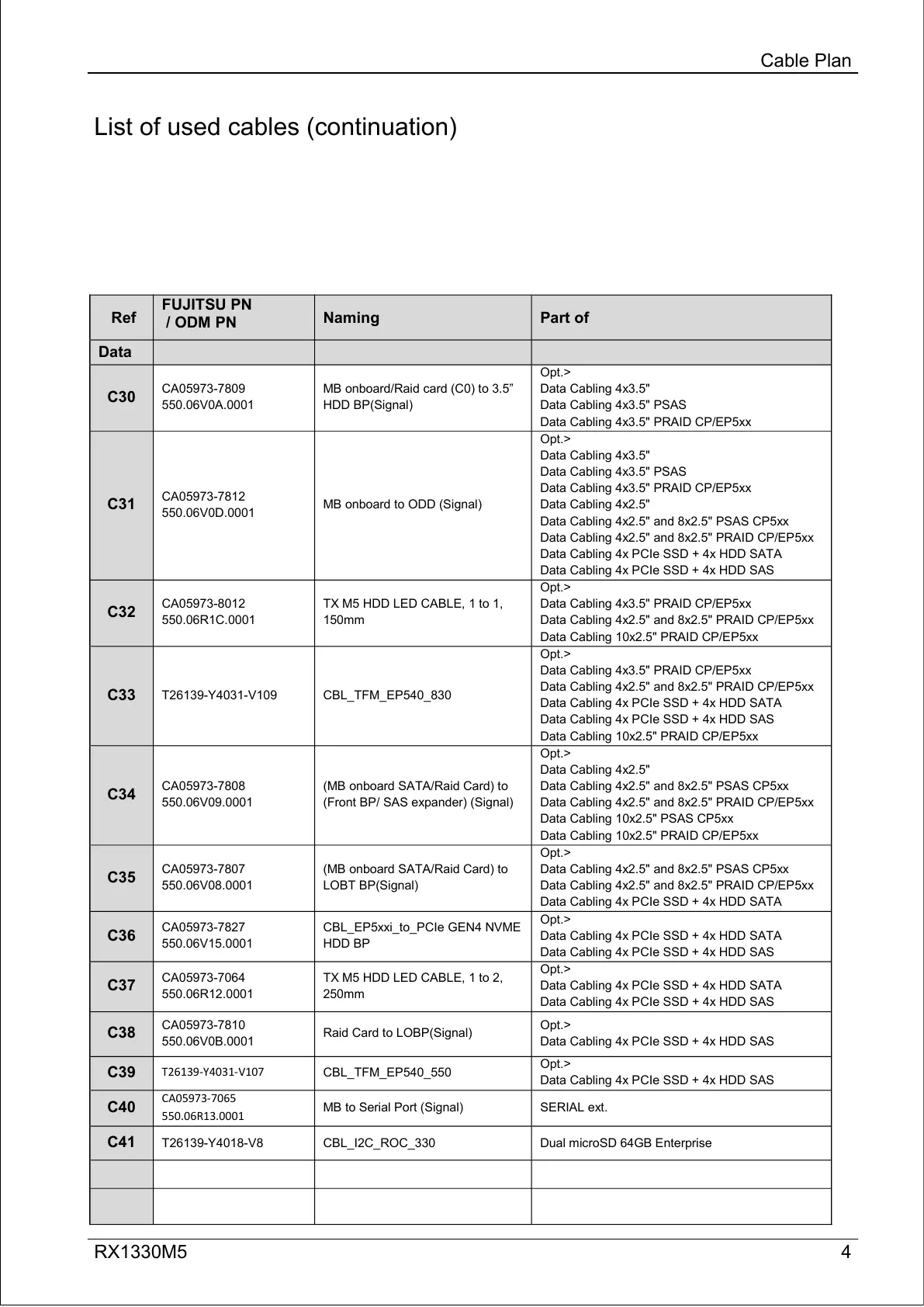

List of used cables (continuation)
Cable Plan
Ref
FUJITSU PN
/ ODM PN
Naming
Part of
Data
C30
CA05973-7809
550.06V0A.0001
MB onboard/Raid card (C0) to 3.5”
HDD BP(Signal)
Opt.>
Data Cabling 4x3.5"
Data Cabling 4x3.5" PSAS
Data Cabling 4x3.5" PRAID CP/EP5xx
C31
CA05973-7812
550.06V0D.0001
MB onboard to ODD (Signal)
Opt.>
Data Cabling 4x3.5"
Data Cabling 4x3.5" PSAS
Data Cabling 4x3.5" PRAID CP/EP5xx
Data Cabling 4x2.5"
Data Cabling 4x2.5" and 8x2.5" PSAS CP5xx
Data Cabling 4x2.5" and 8x2.5" PRAID CP/EP5xx
Data Cabling 4x PCIe SSD + 4x HDD SATA
Data Cabling 4x PCIe SSD + 4x HDD SAS
C32
CA05973-8012
550.06R1C.0001
TX M5 HDD LED CABLE, 1 to 1,
150mm
Opt.>
Data Cabling 4x3.5" PRAID CP/EP5xx
Data Cabling 4x2.5" and 8x2.5" PRAID CP/EP5xx
Data Cabling 10x2.5" PRAID CP/EP5xx
C33
T26139-Y4031-V109
CBL_TFM_EP540_830
Opt.>
Data Cabling 4x3.5" PRAID CP/EP5xx
Data Cabling 4x2.5" and 8x2.5" PRAID CP/EP5xx
Data Cabling 4x PCIe SSD + 4x HDD SATA
Data Cabling 4x PCIe SSD + 4x HDD SAS
Data Cabling 10x2.5" PRAID CP/EP5xx
C34
CA05973-7808
550.06V09.0001
(MB onboard SATA/Raid Card) to
(Front BP/ SAS expander) (Signal)
Opt.>
Data Cabling 4x2.5"
Data Cabling 4x2.5" and 8x2.5" PSAS CP5xx
Data Cabling 4x2.5" and 8x2.5" PRAID CP/EP5xx
Data Cabling 10x2.5" PSAS CP5xx
Data Cabling 10x2.5" PRAID CP/EP5xx
C35
CA05973-7807
550.06V08.0001
(MB onboard SATA/Raid Card) to
LOBT BP(Signal)
Opt.>
Data Cabling 4x2.5" and 8x2.5" PSAS CP5xx
Data Cabling 4x2.5" and 8x2.5" PRAID CP/EP5xx
Data Cabling 4x PCIe SSD + 4x HDD SATA
C36
CA05973-7827
550.06V15.0001
CBL_EP5xxi_to_PCIe GEN4 NVME
HDD BP
Opt.>
Data Cabling 4x PCIe SSD + 4x HDD SATA
Data Cabling 4x PCIe SSD + 4x HDD SAS
C37
CA05973-7064
550.06R12.0001
TX M5 HDD LED CABLE, 1 to 2,
250mm
Opt.>
Data Cabling 4x PCIe SSD + 4x HDD SATA
Data Cabling 4x PCIe SSD + 4x HDD SAS
C38
CA05973-7810
550.06V0B.0001
Raid Card to LOBP(Signal)
Opt.>
Data Cabling 4x PCIe SSD + 4x HDD SAS
C39
T26139-Y4031-V107
CBL_TFM_EP540_550
Opt.>
Data Cabling 4x PCIe SSD + 4x HDD SAS
C40
CA05973-7065
550.06R13.0001
MB to Serial Port (Signal)
SERIAL ext.
C41
T26139-Y4018-V8
CBL_I2C_ROC_330
Dual microSD 64GB Enterprise
