16.1.3 Server interior
16.1.3.1 Servers with standard PSU

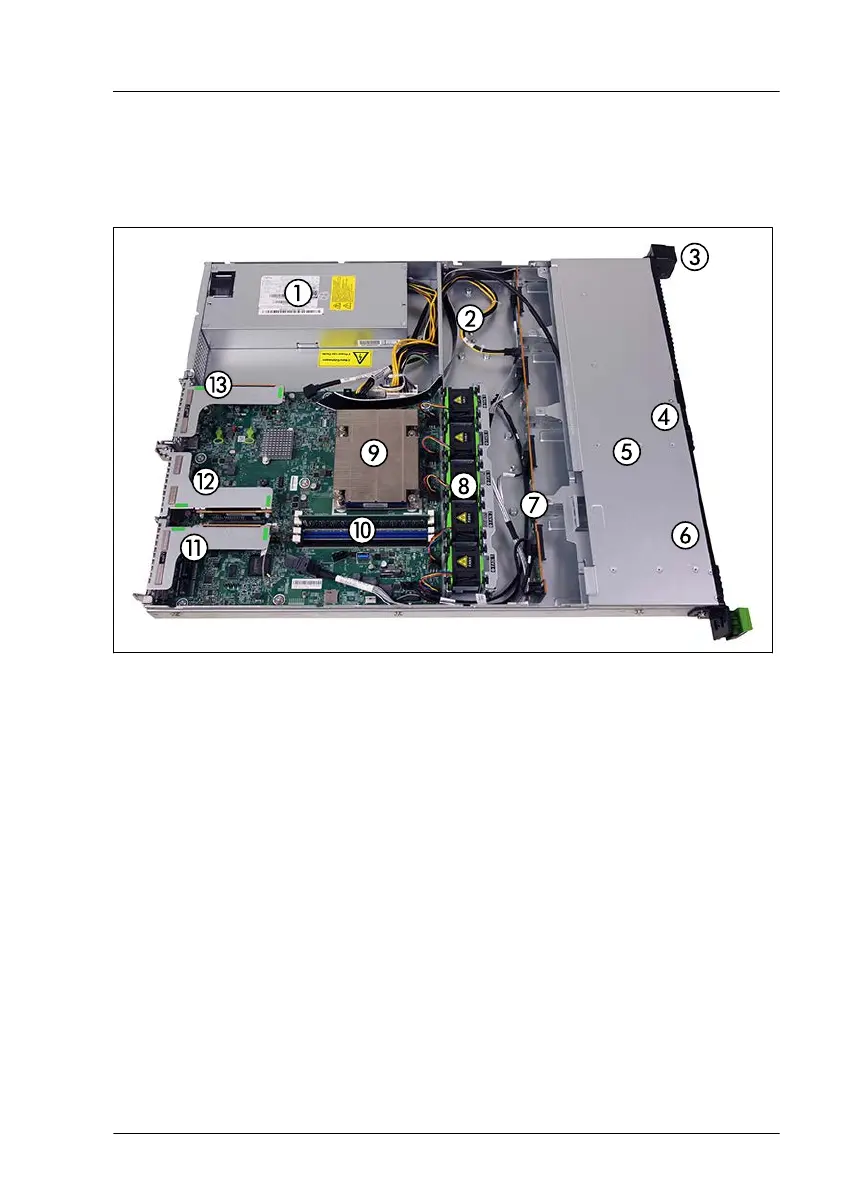

Figure 270: Interior (example 4x 3.5-inch HDDs)
1 Standard PSU
2 Up to two FBUs
3
COP
4 Front VGA module
5 Up to 4x 3.5-inch HDDs / dummy
modules
6 ODD / dummy cover
7 HDD backplane
8 Fan modules
9 CPU
10 Main memory
11 Riser module 1
12 Riser module 2
13 Riser module 3
The front VGA connector in the front VGA module (4) and the ODD (6) are
options.
Appendix A
RX1330 M5 Upgrade and Maintenance Manual 341
