Checking the indicators on the components, see "Connectors and
indicators" on page 343.
–
Checking the onboard indicators on the system board using the Indicate
CSS button, see
"Using the CSS button on the system board" on page 45.
Using the CSS button on the system board
If the system has been powered off, the onboard indicators guides you to the
defective component.
CAUTION
It is mandatory to disconnect all power cords from the system in order to
use the Indicate CSS functionality.
▶
Shut down and switch off the server
.
▶
Disconnect all power cords from the system.
▶
Press the Indicate CSS button to highlight defective components. The
indicator next to the defective component lights up.
4.2 Removing the front cover with lock
The front cover with lock is an option.

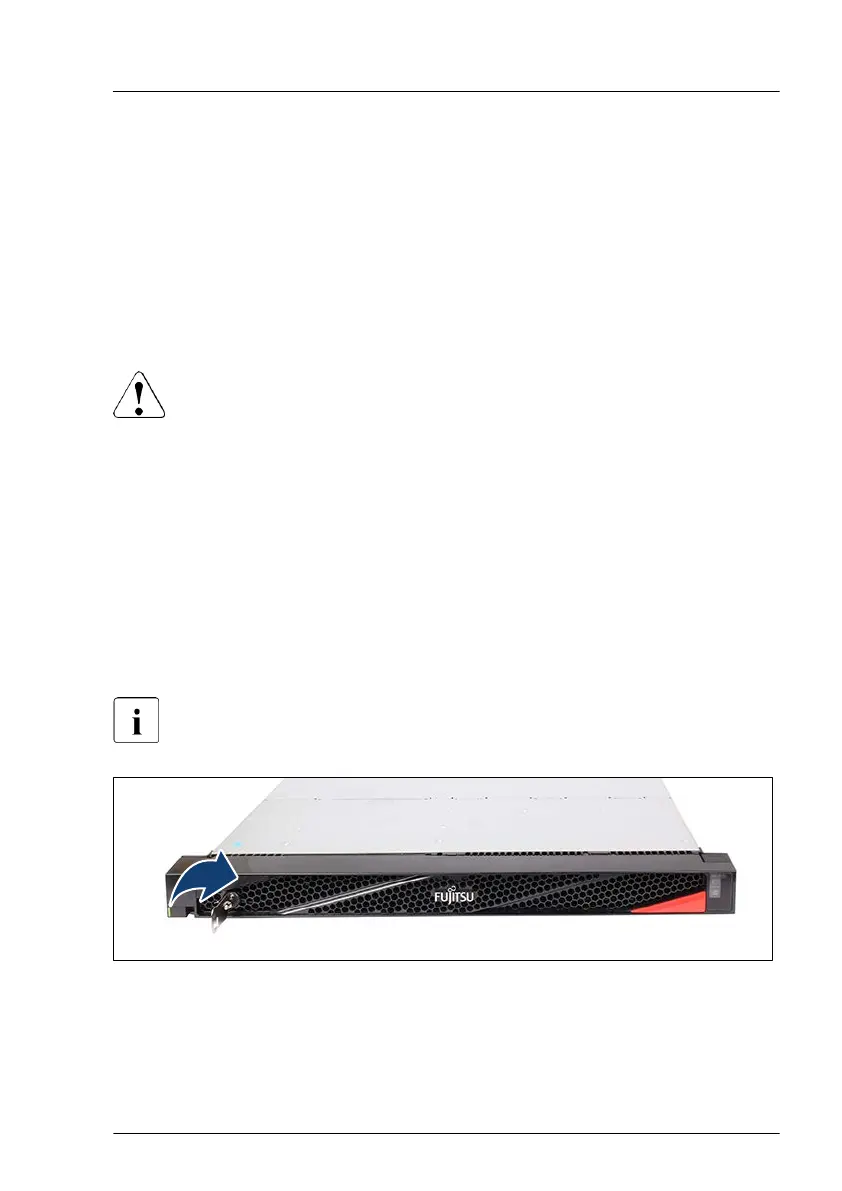

Figure 2: Removing the front cover with lock (A)
▶
Insert the key.
▶
T
urn the key in open position.
Basic hardware procedures
RX1330 M5 Upgrade and Maintenance Manual 45
