16.1.2.2 Server rear with hot-plug PSUs

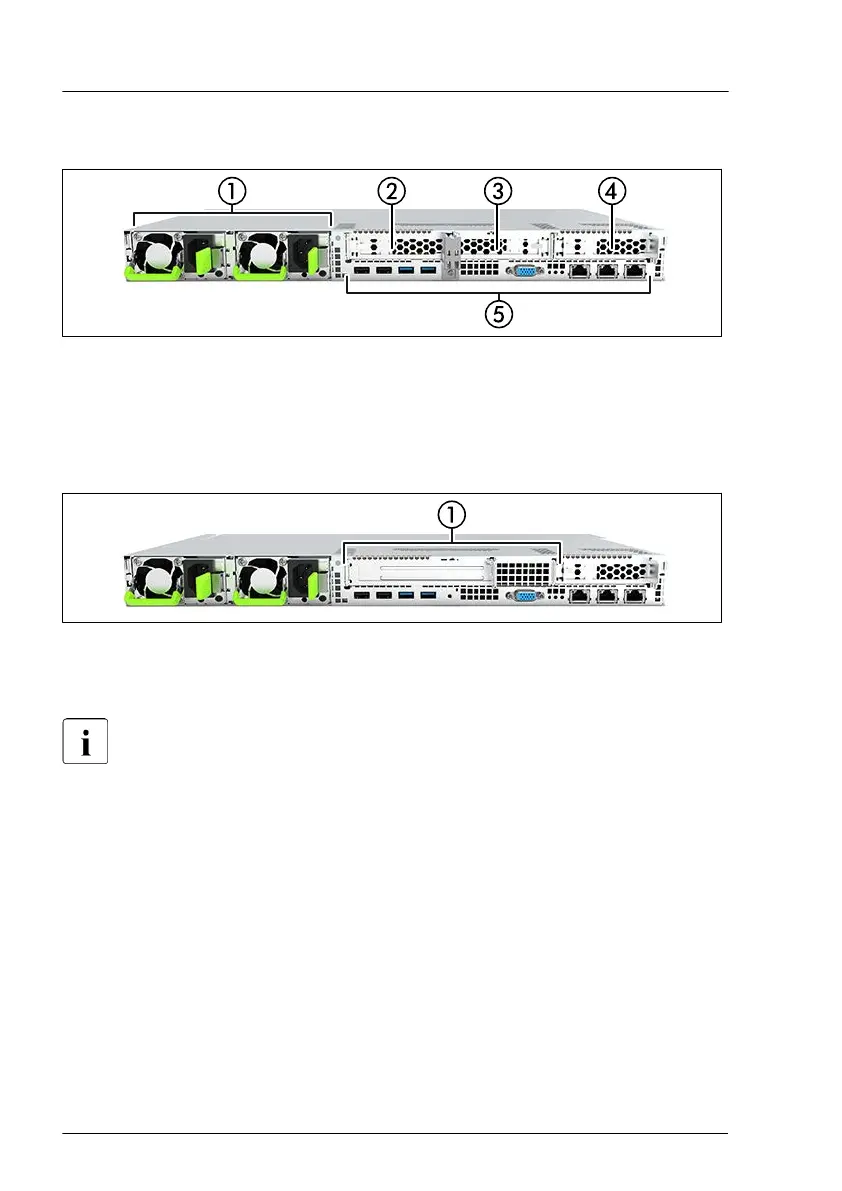

Figure 268: Server rear with hot-plug PSUs
1 Up to two hot-plug PSUs / dummy
cover
2
PCIe slot 3 / riser module 3
3
PCIe slot 2 / riser module 2
4 PCIe slot 1 / riser module 1
5 I/O panel
Figure 269: Server rear with full height riser module
1 Full height riser module
As an option, a full height riser module can be installed. In this case the
slot 2 is not available and slot 3 can be equipped with a full height
expansion card.
Appendix A
340 Upgrade and Maintenance Manual RX1330 M5
