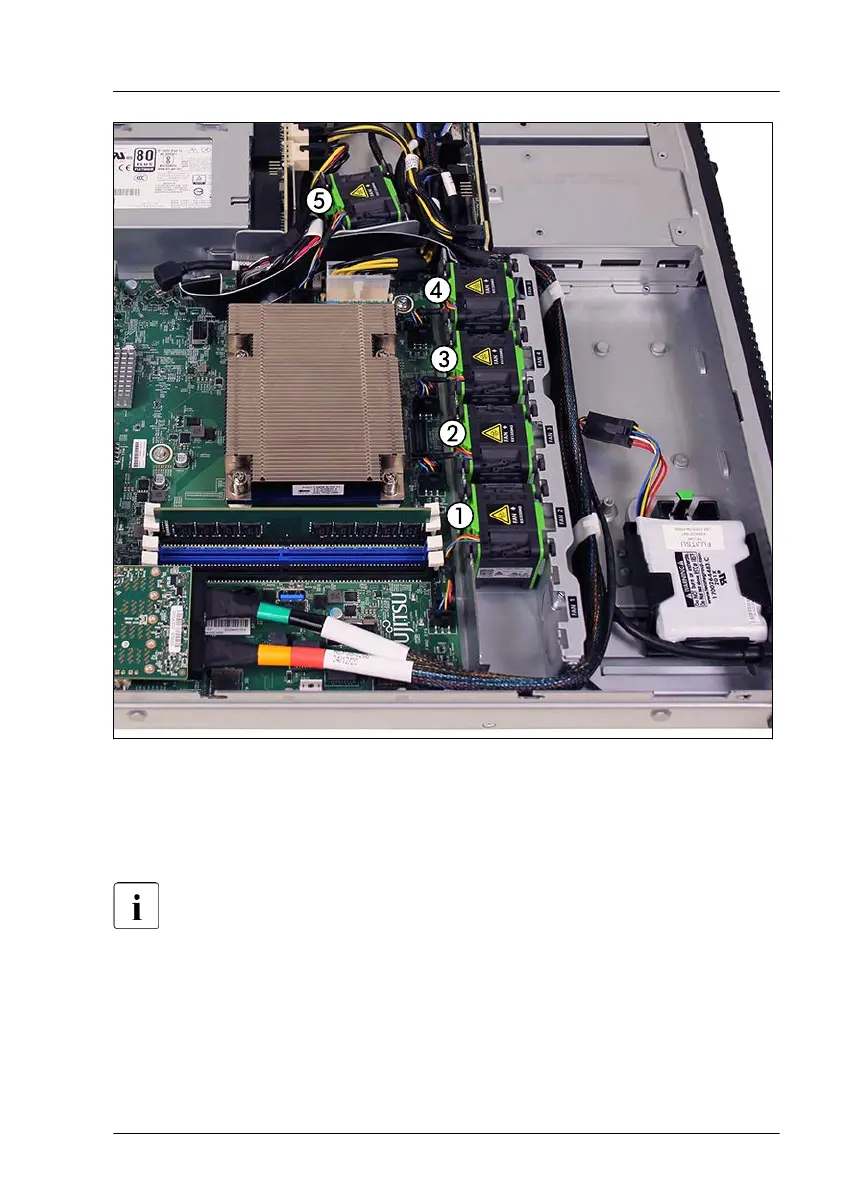

Figure 116: Numbering of single rotor fans (RX1330 M5S)

1 Fan 1

Fan 2

Fan 3

4 Fan 4

5 Fan 5

For the RX1330 M5S, the bay "Fan 1" remains empty and the fans are

installed in the bays "FAN 2" to "FAN 6".

Fans

RX1330 M5 Upgrade and Maintenance Manual 173
