Removing the defective front USB
▶
Disconnect the front USB cable from the system board connector "TYPE C
FRONT ".

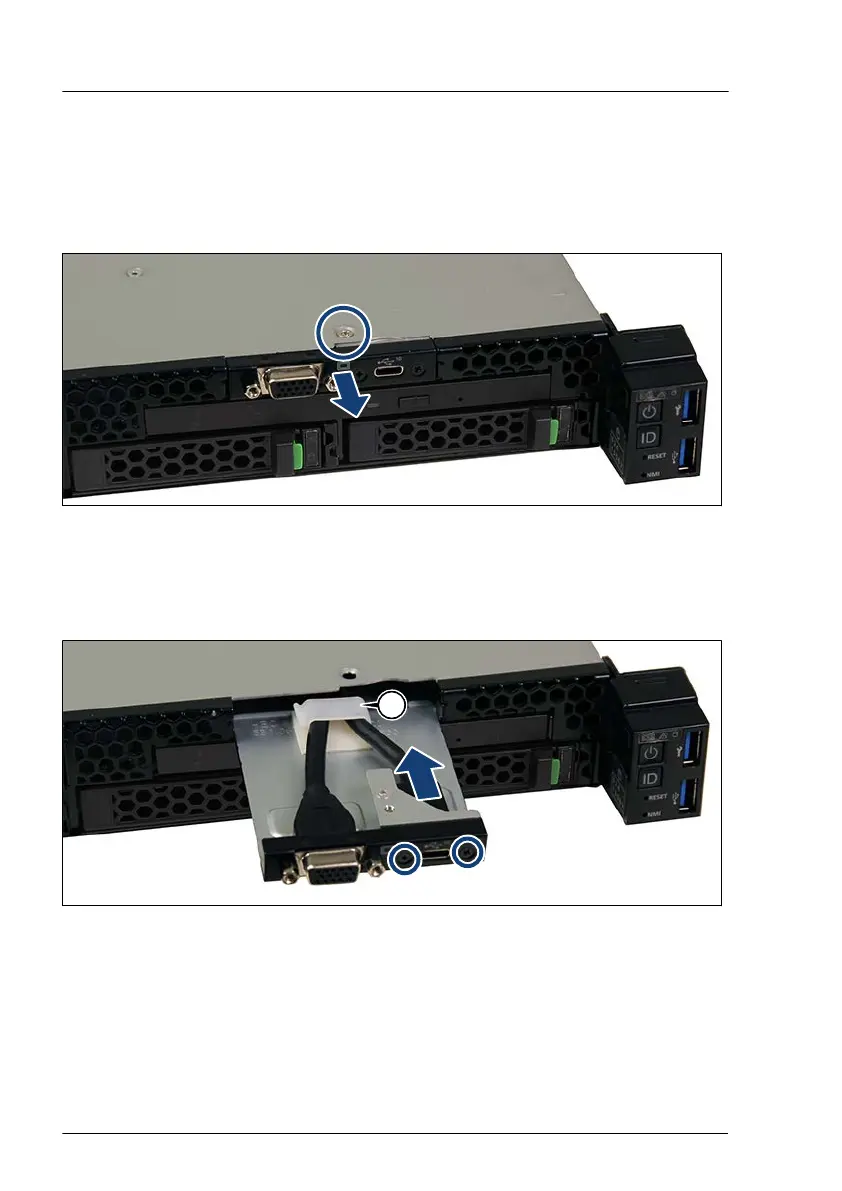

Figure 221: Removing the front VGA module
▶
Remove the screw (see circle).
▶
Pull out the front VGA module.
A
Figure 222: Removing the front USB connector
▶
Remove the two screws (see circles).
▶
Remove the front USB cable from the cable clamp (A).
▶
Pull the front USB connector out of the recess in the front VGA module.
▶
Thread the front USB cable through the opening and remove it.
Front panel
276 Upgrade and Maintenance Manual RX1330 M5
