PanaFlow™ LC User’s Manual 145
Appendix H. Foundation Fieldbus Communication
H.4 Resource Block
The Resource Block provides common information about the XMT1000 Foundation Fieldbus implementation.
The user can find FF revision numbers, set passwords and configure the
NAMUR NE107 bit map.
H.4.1 FF Revision

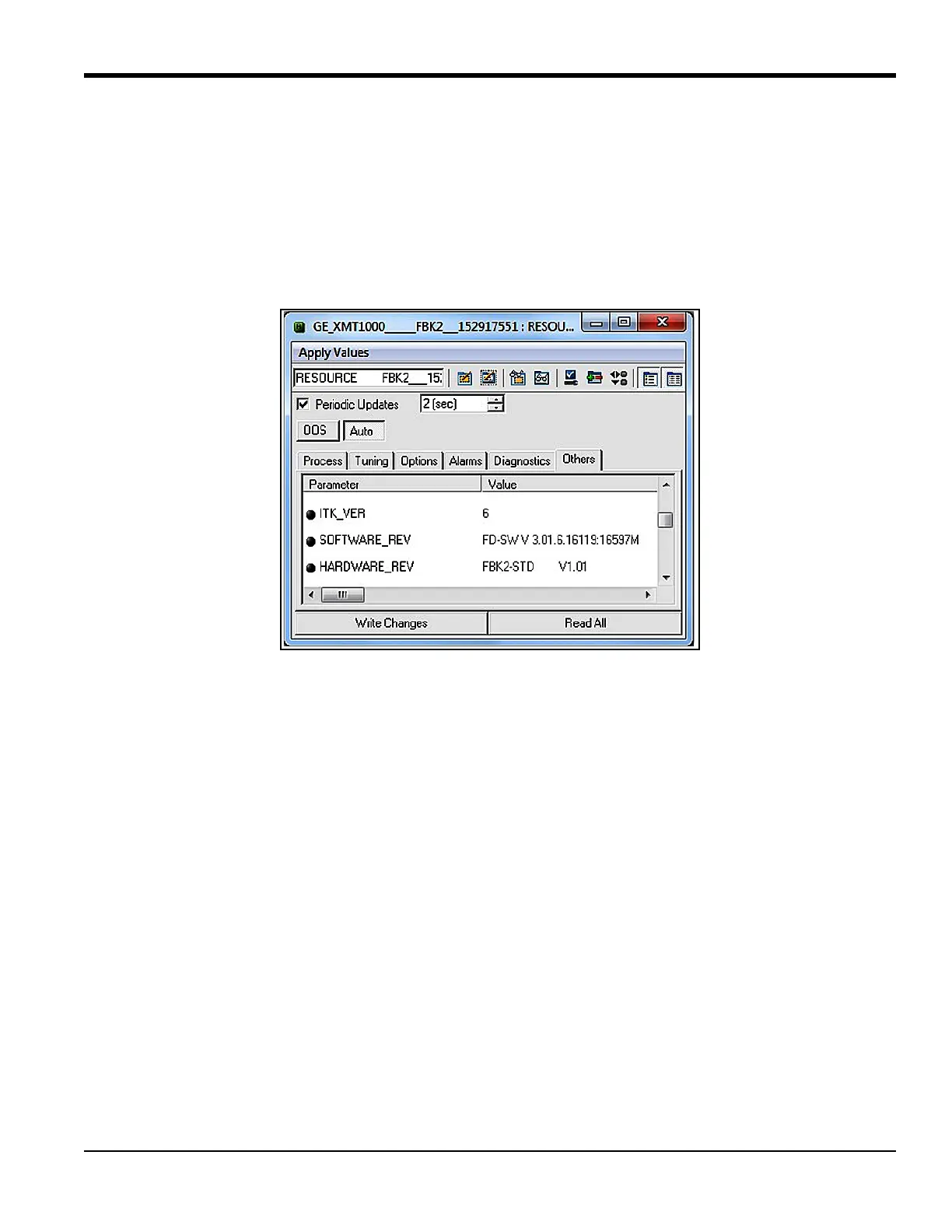

Figure 131 below shows the Foundation Fieldbus SW and HW versions in the XMT1000 Resource Block, and
includes an FF Revision for both.
Figure 131: FF Revision in XMT1000 Resource Block
