IMPORTANT: If the keypad has not been pressed for 5 minutes, the XMT1000 exits the Program and returns to
displaying measurements. Because changes can only be retained after the user confirms them,
the meter discards any unconfirmed configuration changes.
3.4 System Settings
3.4.1 Selecting Units
The operator can select the preferred units of measurements. Use steps as in section “Log-in and Primary
Pages” to navigate to the System settings page. Then highlight [Unit Settings] and press [ENTER], you will now
have measurement types listed as in the Figure 54 below, for which you can select your preferred respective
units.

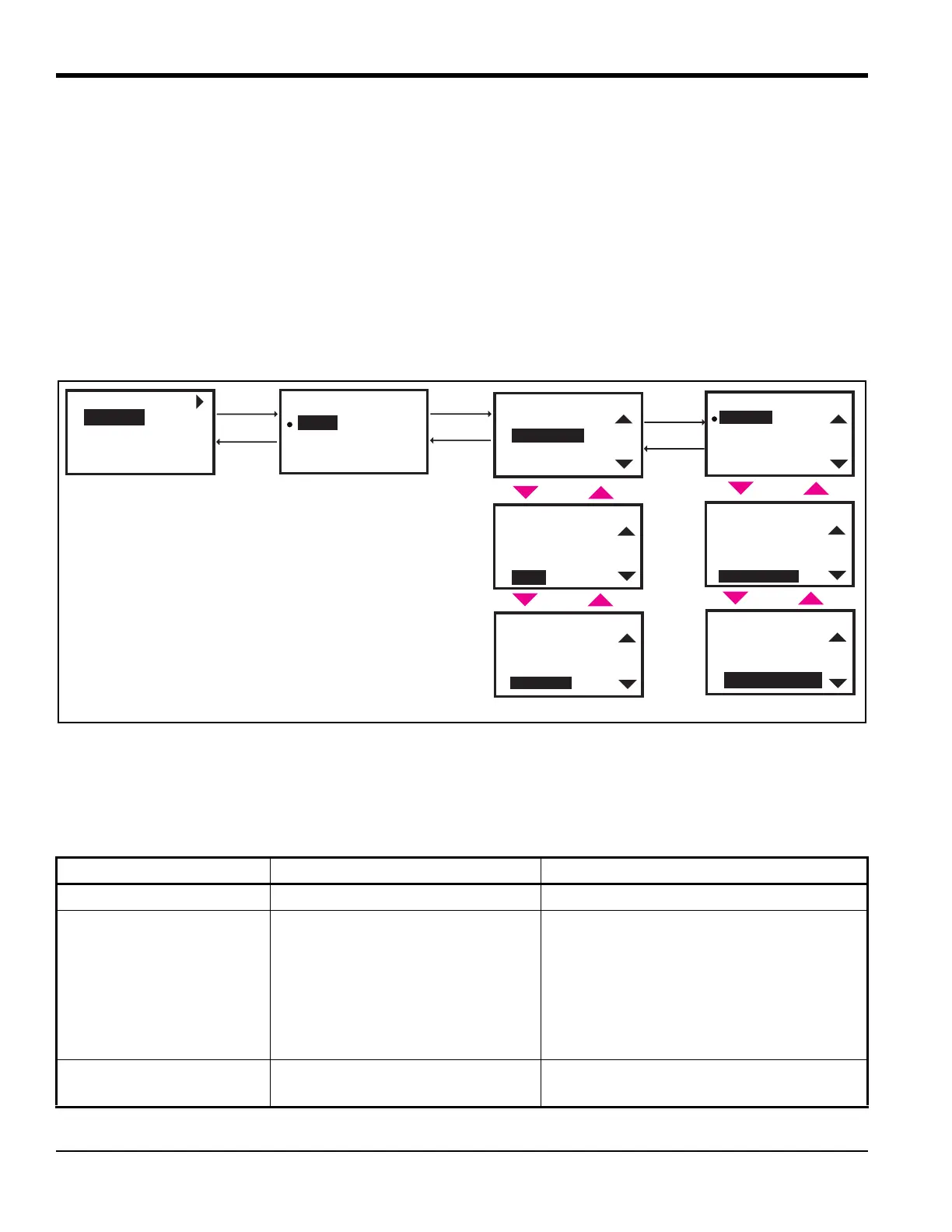

Figure 54: Selecting Units
3.4.1a Supported Unit Groups and Units
The Table 2 specifies the unit groups and its respective units supported in XMT1000.
Table 2: Unit groups and supported units
Unit Group Supported Metric Units Supported English Units
Velocity Units m/s ft/s
Volumetric Units m³/s, m³/min, m³/h, m³/d, L/s,
L/min, L/h, ML/d
ft³/s, ft³/min, ft³/h, ft³/d, gal/s, gal/min,
gal/h, gal/d, bbl/s, bbl/min, bbl/h, bbl/d,
kgal/min, kgal/h, kgal/d, kbbl/min, kbbl/h,
kbbl/d, ac-ft/min, ac-ft/h, ac-ft/d, ac-in/s,
ac-in/min, ac-in/h, ac-in/d, impgal/s,
impgal/min, impgal/h, impgal/d, Mbbl/d,
Mimpgal/d, Mgal/d
Standard Volumetric Units SL/s, SL/min, SL/hr, SL/d, Sm³/s,
Sm³/min, Sm³/hr, Sm³/d
SCFH, SCFM, SBBLD, SBBLH, SBBLM,
SBBLS, SCFD, SCFS
English/Unit Groups
Velocity
Mass
Volumetric (Std)
Volumetric (Act)
English/Unit Groups
Vol Totalizer
Mass Totalizer
Dimensions
Angle
Unit Groups/ActVol
U.S Gallons/sec
9
2
9
or
Unit Groups/ActVol
Cubicft/min
Cubicft/hr
Cubicft/sec
English/Unit Groups
Angle
Density
Pressure
Temperature
Unit Groups/ActVol
9
2
U.S Gallons/min
U.S Gallons/hr
U.S Gallons/day
U.S Kilo Gallons/min
U.S Kilo Gallons/hr
U.S Kilo Gallons/day
U.S Megs Gallons/day
9
2
Metric
English
Meter Units
Cubicft/day
System
View Error Log
Meter Settings
Meter Units
Reset Error Log
Operator Access or Higher
To Next Page
