PanaFlow™ LC User’s Manual 29
Chapter 2. Installation

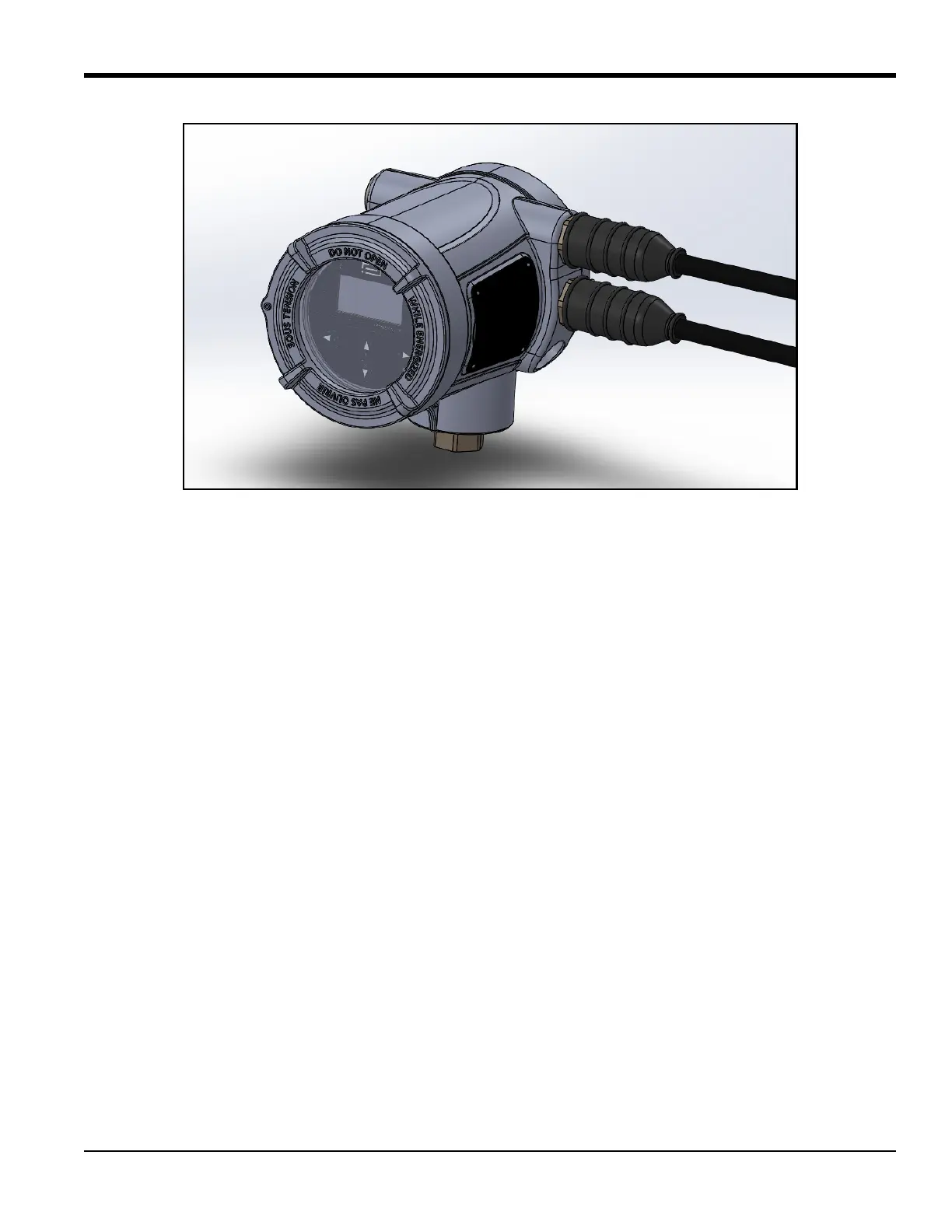

Figure 42: PanaFlow LC Single Channel Set
2.11.3 Two Channel Set Up
Components of a two channel PanaFlow LC will be a meter head, 4 transducer cables and two sets of
transducers, 2 channel junction box and clamping fixtures. Mount meter head to a two inch post using
included hardware or another location following local electrical and building codes.
Install transducers as mentioned in Section 2.7 through Section 2.9. Prepare to wire transducer cables.
Note: US/ Canada installations will be required to provide conduit per their particular location. European
installations will include armored cable.
2.11.3.1 Transducer Wiring (ATEX installations)
1. Thread ends of armored cable into the meter head and the other into the junction box on the back of
the transducer (see Figure 1 on page 1 for reference).
2. Terminate connections of the transducer end of each cable to each of your clamp on transducers.
3. At the meter end of the cable secure the red wire of channel one downstream RG62 cable to the CH1
(red box in Figure 41) DN terminal of the XMT1000 backplane.
4. Secure Black wire of channel one downstream RG62 cable to the CH1 (red box in Figure 41) RTN
terminal directly below the DN terminal of the XMT1000 backplane.
5. Secure red wire of channel one upstream RG62 cable to the CH1 (red box in Figure 41) UP terminal of
the XMT1000 backplane.
6. Secure Black wire of channel one upstream RG62 cable to the CH1 (red box in Figure 41) RTN
terminal directly above the UP terminal of the XMT1000 backplane.
7. At the meter end of the cable secure the red wire of channel two downstream RG62 cable to the CH2
(blue box in Figure 41) DN terminal of the XMT1000 backplane.
