PanaFlow™ LC User’s Manual 11
Chapter 2. Installation
Figure 9 below shows a completed even-traverse installation without the transducers. Proceed to the section
on mounting the transducers later in this chapter.

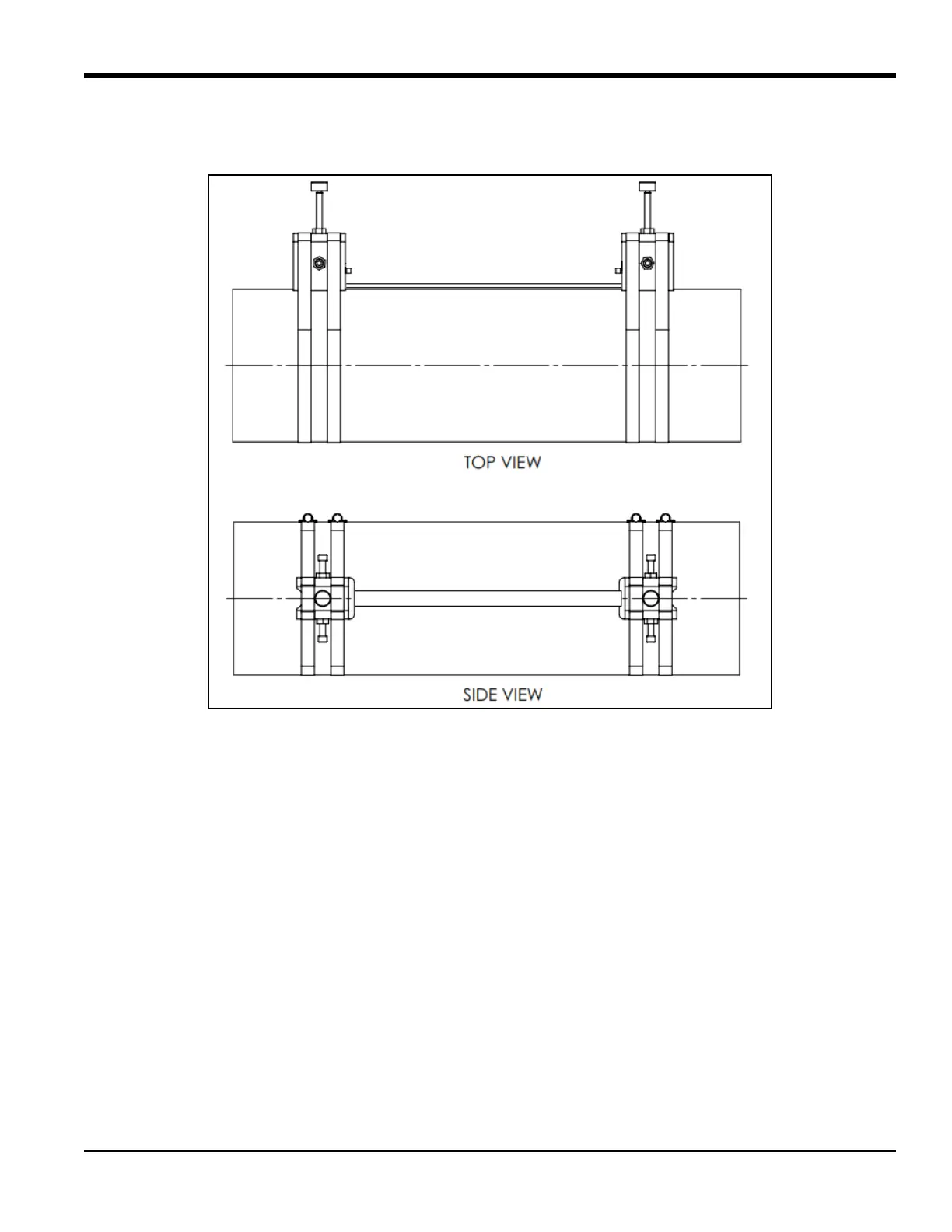

Figure 9: Finished SCF Installation without Transducers
2.6.2 Odd Number of Traverse Method
Note: The instructions in this section can also be used for a multiple-traverse method. However, you must use
an ODD number of traverses. The distance the signal travels from one side of the pipe wall to the
opposite side of the pipe wall is considered one traverse. For installations with more than one traverse,
contact BHGE for assistance.
The procedure for mounting the SCF for the odd number of-traverse method includes marking the pipe for
the required transducer spacing, fastening the fixture to the pipe, and then mounting the transducers into
the fixture.
To install the SCF odd traverse, complete the following steps:
1. Ensure the location of your clamping fixture has been properly scoped out following the criteria in
Section 2.6: Precautions.
Note: For simplicity, all figures will show the clamping fixture oriented on the horizontal plane (3 o'clock and 9
o'clock positions). Exact orientation will depend on the piping upstream and downstream of the fixture
determined in Section 2.6: Precautions.
