Chapter 2. Installation
26 PanaFlow™ LC User’s Manual

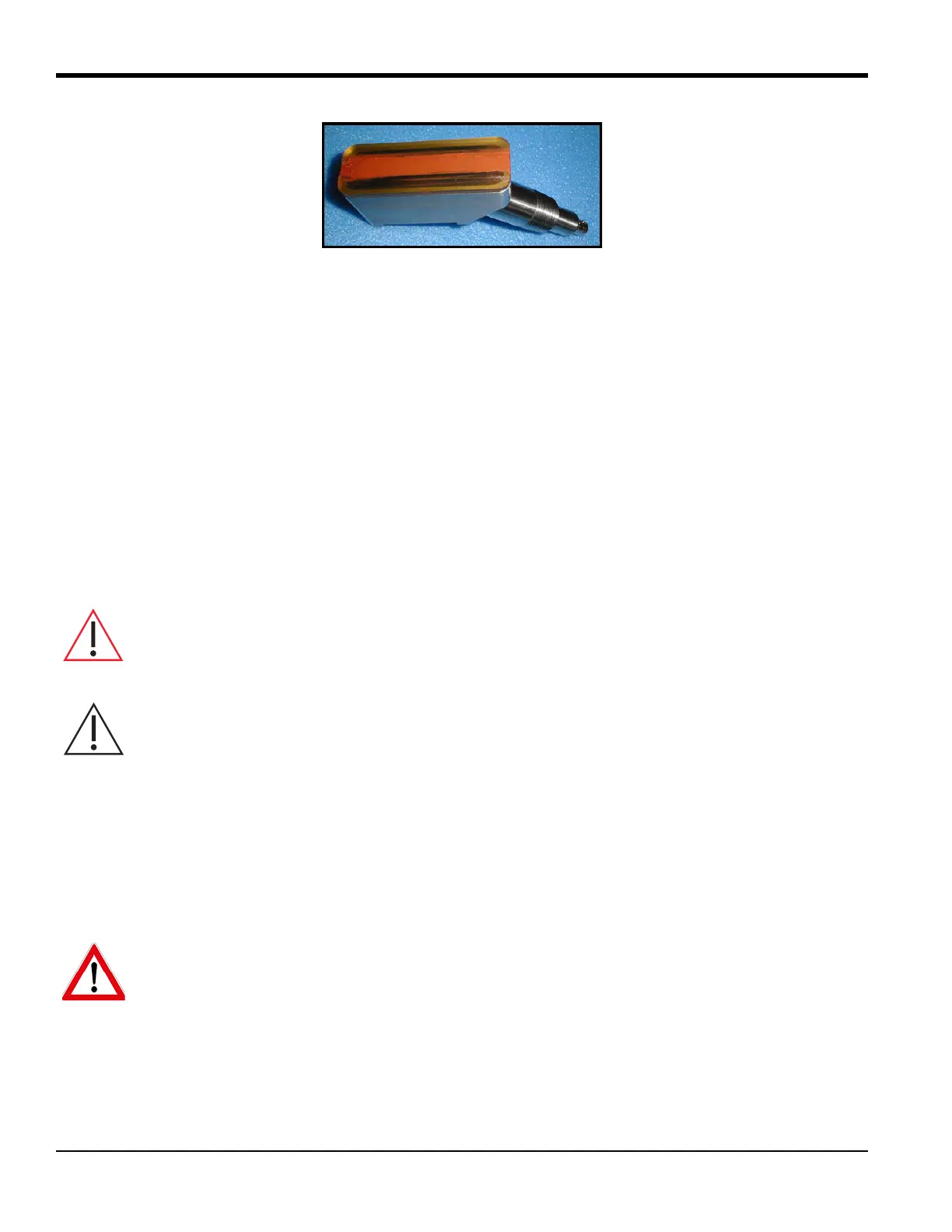

Figure 38: Couplant on Transducer Face
Note: Do not slide the transducer with couplant along the surface of the pipe when mounting the transducer.
3. With one hand, mount one transducer into the PI fixture. With the other hand, tighten the
thumbscrew, gradually pushing the transducer down to the pipe surface. Use a wrench to tighten the
backing nut to prevent loosening due to vibration and thermal expansion.
IMPORTANT: Do not use pliers or a wrench on the thumbscrew.
4. Repeat step 3 for the other transducer.
2.10 Making Electrical Connections
The PanaFlow LC utilizes the XMT1000 Transmitter module. For information regarding electrical
connections required for setup of the XMT1000 Transmitter, please refer to the included PanaFlow LC User's
Manual.
2.11 Transducer Wiring
The PanaFlow™ LC is a 1, 2 or 3 channel clamp-on ultrasonic flowmeter. For three channel applications there
will be an additional Aluminum or Stainless-Steel junction box for transducer connections. The transducer
wiring installation for either of these junction boxes will be the same. The Figure 39 below shows both
boxes:
WARNING! Make sure all covers, with their O-ring seals, are installed and the set screws
tightened before applying power in a hazardous environment.
Attention European Customers! To meet CE Mark requirements, all cables must be installed as
described in Appendix D, CE Mark Compliance.
WARNING! Make sure that there is no power in the XMT1000 meter and it is not plugged.
Failure to do so may result in electrical shock that can cause injury, or death.
