Chapter 2. Installation
4 PanaFlow™ LC User’s Manual
2.2 Unpacking the PanaFlow LC System
Before removing the PanaFlow™ LC from its box, please inspect both the box and the instrument carefully.
Each instrument manufactured by BHGE is warranted to be free from defects in material and workmanship.
Before discarding any of the packing materials, account for all components and documentation listed on the
packing slip. The discarding of an important item along with the packing materials is all too common. If
anything is missing or damaged, contact BHGE Customer Care immediately for assistance.
The PanaFlow LC flowmeter shall consist of one set of XMT1000 Electronics, a pair of transducer cables, a
pair of clamp on transducers and a clamping fixture to mount the transducers to a pipe.
Due to a variety of configurations your kit may include additional cables, clamping fixtures, transducers and
junction boxes.
Please refer to your packing slip and ordered parts string and lists for your specific components.
The PanaFlow™ LC is supplied with both a serial number label and a certification label for identification of
the instrument (see Figure 3 below and Figure 4 on page 5).

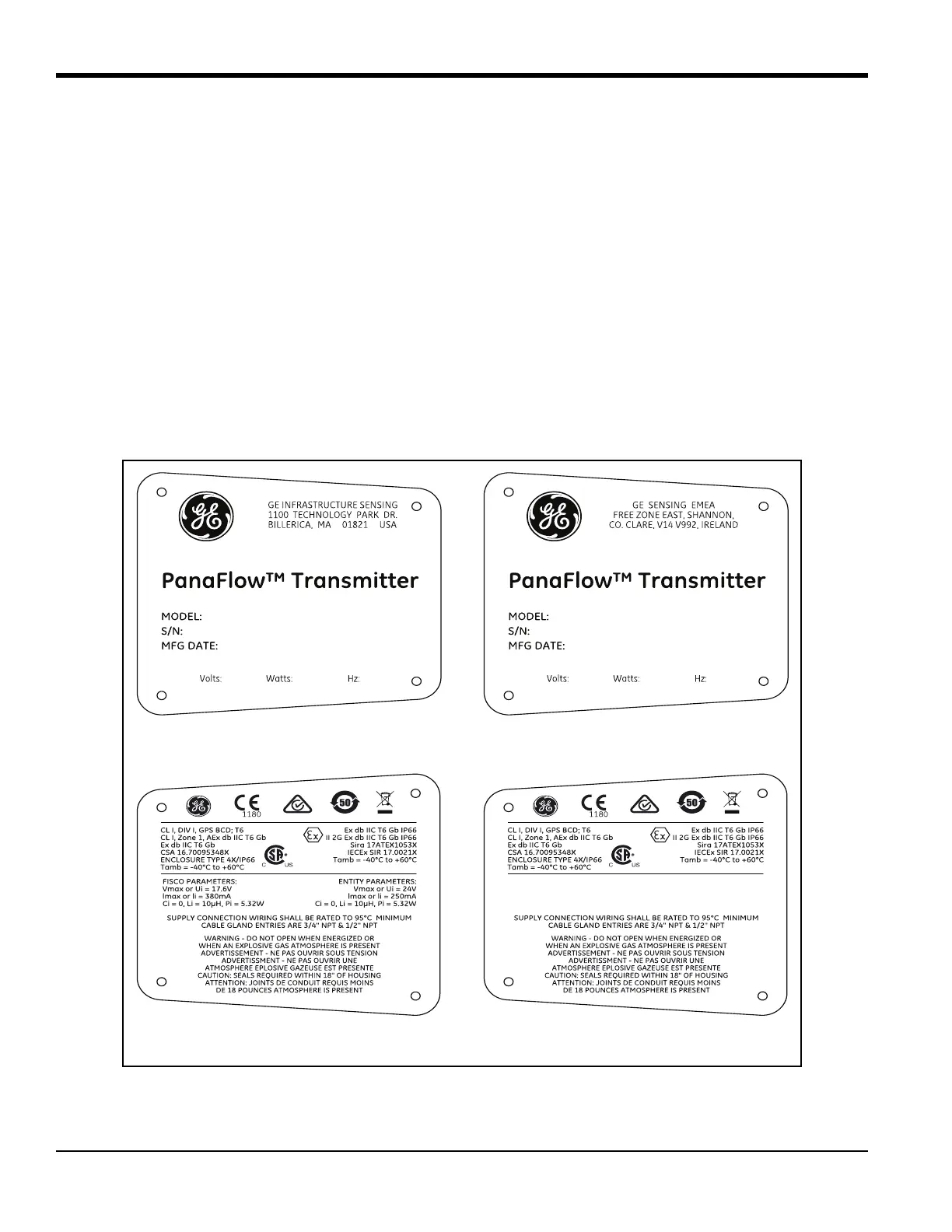

Figure 3: Typical XMT1000 Labels (Aluminum Enclosure)
Model & Serial Number (Boston) Model & Serial Number (Shannon)
Certification (US/CAN, IECEx/ATEX)
[FISCO]
Certification (US/CAN, IECEx/ATEX)
[Standard]
To Next Page
