GE Baker Hughes PanaFlow LC XMT1000 User Manual

PanaFlow™ LC User’s Manual 69
Chapter 3. Programming
3.6.6c Programming Advanced Channel Settings
1. Refer to Clamp-on Calibration procedure for calibrating zero flow [Delta-T Offset].
2. Refer to Section 3.6.7a Fluid Speed of Sound Calibration for Calibrating sound speed.
3. Scroll and highlight [Peak Detection] and press [ENTER]. Select [Automatic] for the meter to
automatically pick the [Peak %]. If you frequently see E6: Cycle Skip errors, please contact Factory.
3.6.7 Fluid Speed of Sound Calibration
In order to perform Speed of sound (SOS) calibration it’s necessary to install Vitality
TM
PC Software
application ver. 1.5.0 or later. SOS calibration procedure is described in the CAL-TRIM-TEST section of Vitality
Help manual which can be launched from application’s main menu.
The XMT1000 can calibrate the fluid speed of sound (SOS) after installation, provided the operator knows the
fluid SOS under the current flow conditions. The measured fluid SOS should be within the accuracy
specification after following the standard installation procedures. This SOS calibration is for fine-tuning of
the XMT1000 meter under the on-site installation conditions and maintaining the high accuracy
performance.
3.6.7a Fluid SOS calibration procedure
SOS calibration will be done on each channel. After calibration, the measured SOS from each channel, and
the composite channel, shall read within ±1 ft/s (or 0.3 m/s) of expected value. Calibrate the fluid SOS as per
below procedure.
Calibration Procedure:
1. Open BHGE Vitality. Click on
[Connect].
2. Select instrument model and communication Port.

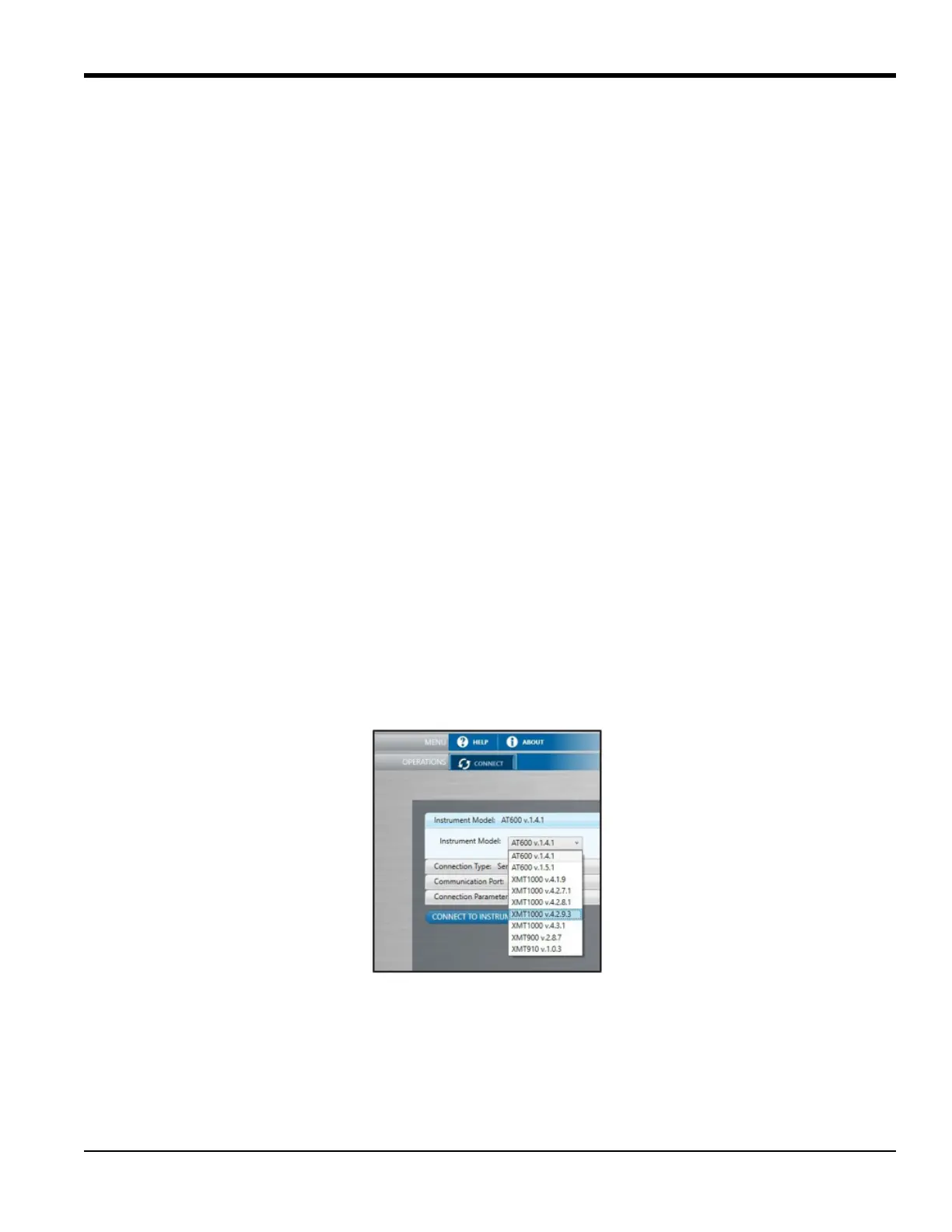

Figure 76: Vitality screen
3. Click on
[CONNECT TO INSTRUMENT].
4. Change Access Level to Operator and enter respective
[Password]. Click on [Change Access Level].

GE Baker Hughes PanaFlow LC XMT1000 Specifications

General

Category	Measuring Instruments
Accuracy	±0.5% of reading
Pipe Size Range	2 to 48 inches
Temperature Range	-40 to 150°C (-40 to 302°F)
Outputs	4-20 mA
Enclosure	NEMA 4X (IP66)
