V00657

External Trip A

IA< Start

Ext Prot Reset

I< Only

CB Open & I<

Prot Reset & I<

Pole Dead A

External Trip A

ZCD IA<

CBFExtPhAStart

CBFExtPhBStart

CBFExtPhCStart

CB Fail Alarm

External Trip B

IB< Start

Ext Prot Reset

I< Only

CB Open & I<

Prot Reset & I<

Pole Dead B

External Trip B

ZCD IB<

CB Fail Alarm

External Trip C

IC< Start

Ext Prot Reset

I< Only

CB Open & I<

Prot Reset & I<

Pole Dead C

External Trip C

ZCD IC<

CB Fail Alarm

Note on SR Latches

All latches are reset dominant and are triggered on the positive edge . If

the edge occurs while the reset is active , the detection of the edge is

delayed until the reset becomes non -active.

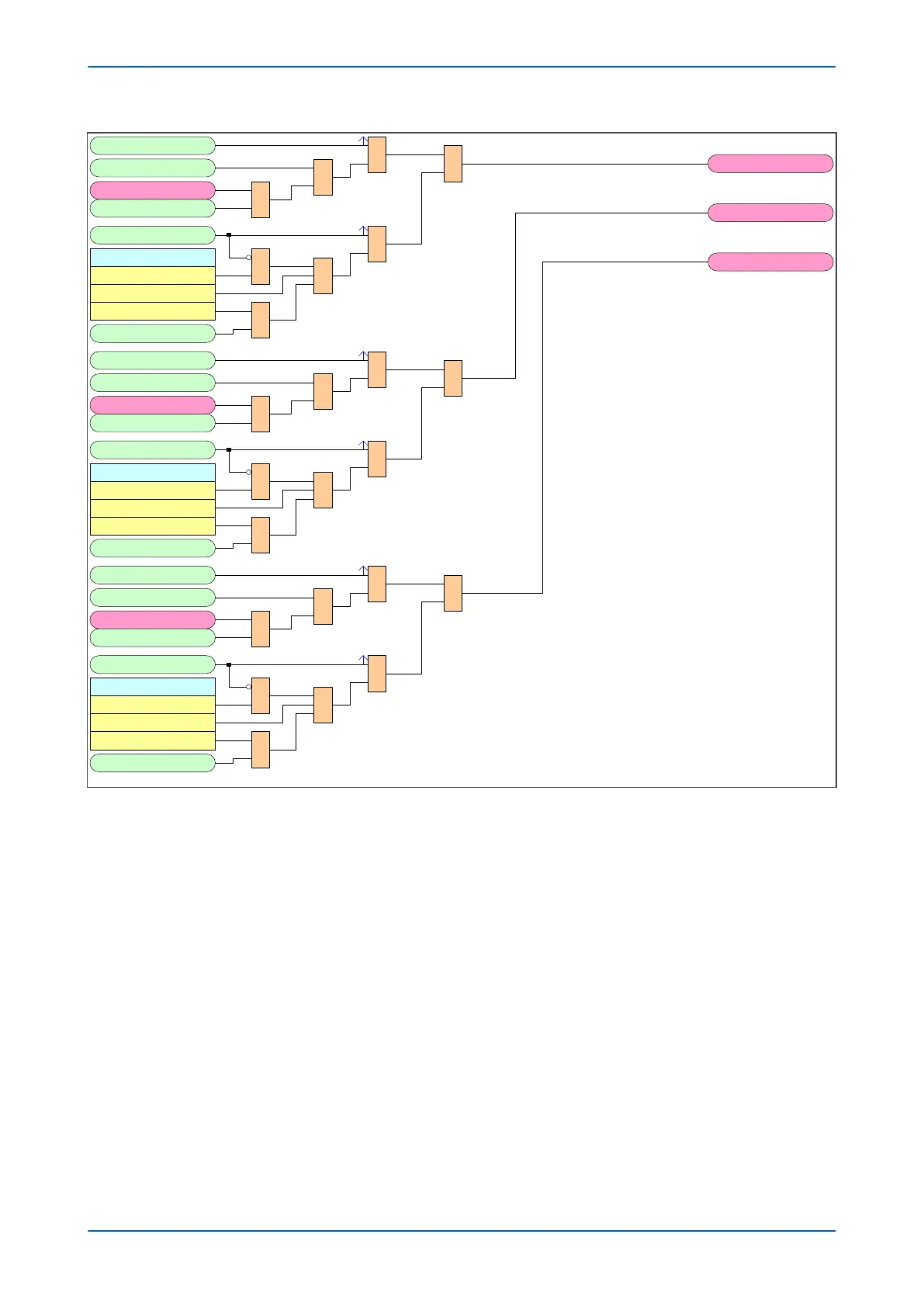

Figure 103: Circuit Breaker Fail logic - single phase start

Chapter 8 - CB Fail Protection P14x

188 P14xEd1-TM-EN-1
