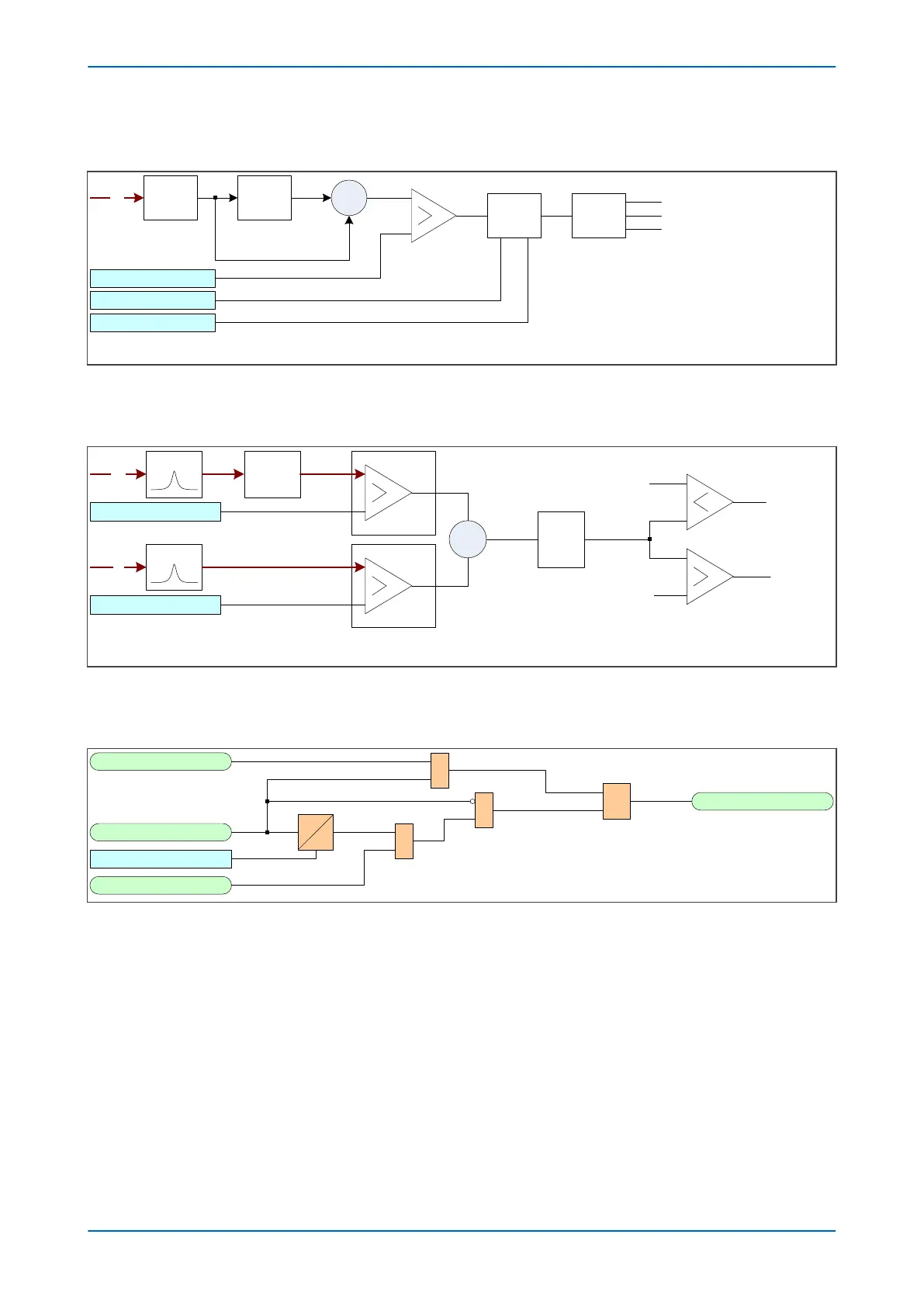

5.2.2 FAULT TYPE DETECTOR LOGIC

V00906

Average

low pass

filter

FTD> VN

NRMS

Permanent

RMS

FTD> Time Window

FTD> Fault Count

Pulse

Counter

Decision Intermittent

Disturbance

Figure 142: Fault Type Detector Logic

5.2.3 DIRECTION DETECTOR LOGIC - STANDARD MODE

V00907

Dir>Vnf Thresh

220Hz

Add 90°

phase shift

Sign filter

Dir>Inf Thresh

220Hz Sign filter

Forward (faulty)

Reverse (healthy)

tran

-0.1

0.04

Note: In standard mode , Qtran comparison threshold is fixed at -0.1 for the

forward direction and +0.04 for the reverse direction.

Figure 143: Direction Detector Logic - Standard Mode

5.2.4 TRANSIENT EARTH FAULT DETECTION OUTPUT ALARM LOGIC

V00909

TEF Alarm Logic

TEF> Start

Reset TEF

TEF Alarm Output

TEF> tRESET

Figure 144: TEFD output alarm logic

P14x Chapter 12 - Power Protection Functions

P14xEd1-TM-EN-1 273
