7.6 CB CONTROL LOGIC
V01208
Init close CB
1
CB Control
Disabled
Local Opto+Local
Opto
Local+Remote
Remote Opto+Remote
Opto+Rem+Local
HMI Trip
HMI Close
1
&
Init Trip CB
& &
1
AR In Progress
Auto Close
&
&
S
R
Q
1
S
R
Q
& CB Cls Fail
Close pulse
Control Close
Pulsed output latched in HMI
Close in Prog
Delayed control close time
S
R
Q
& Man CB Trip Fail
Control Trip
Enable opto -initiated CB trip and close
Reset Close Dly
1
1
Ext. Trip 3ph
Control Trip
Trip Command In
CB Open 3 ph
CB Closed 3 ph
CB Healthy
Man CB Unhealthy
Man No Checksync
Man Check Synch
1
&
&
1
Voltage models only
AR models only
CB healthy window
C/S window

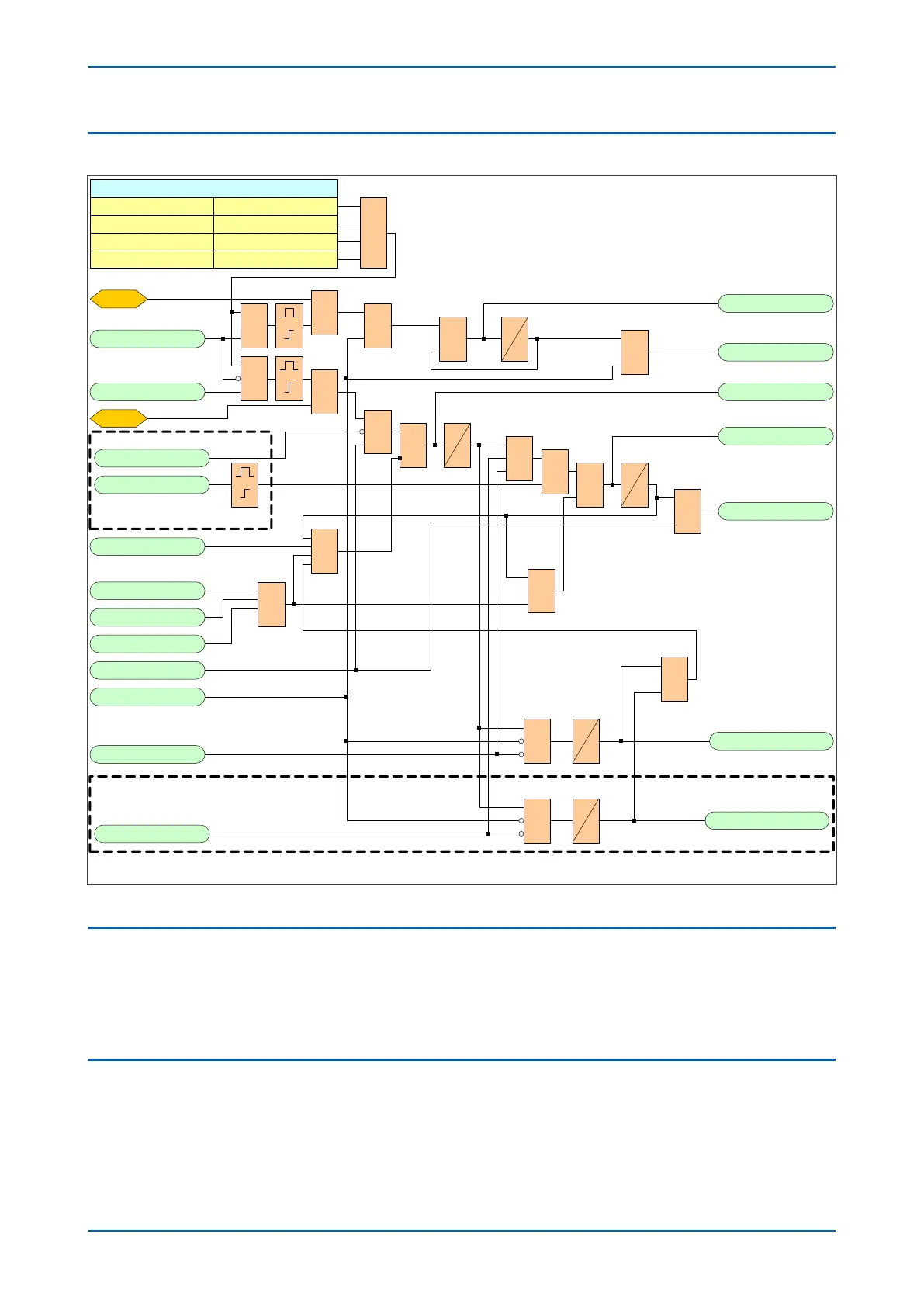

Figure 166: CB Control logic
7.7 SYNCHRONISATION CHECK
Where the check synchronism function is set, this can be enabled to supervise manual circuit breaker Close
commands. A circuit br
eaker Close command will only be issued if the Check Synchronisation criteria are satisfied.
A time delay can be set with the setting Sys Check time. If the Check Synchronisation criteria are not satisfied
within the time period following a Close command the device will lockout and alarm.
7.8 CB HEALTHY CHECK
A CB Healthy check is available if required. This facility accepts an input to one of the opto-inputs to indicate that
the break
er is capable of closing (e.g. that it is fully charged). A time delay can be set with the setting CB Healthy
Time. If the CB does not indicate a healthy condition within the time period following a Close command, the device
will lockout and alarm.
Chapter 14 - Monitoring and Control P14x
328 P14xEd1-TM-EN-1
