GE MiCOM P143 Agile User Manual

DANH
Source
DANH Redbox
DANH DANH DANH
A frame B frame
C frame
Switch
Singly Attached
Nodes
D frameD frame
D frameD frameD frame
V01030

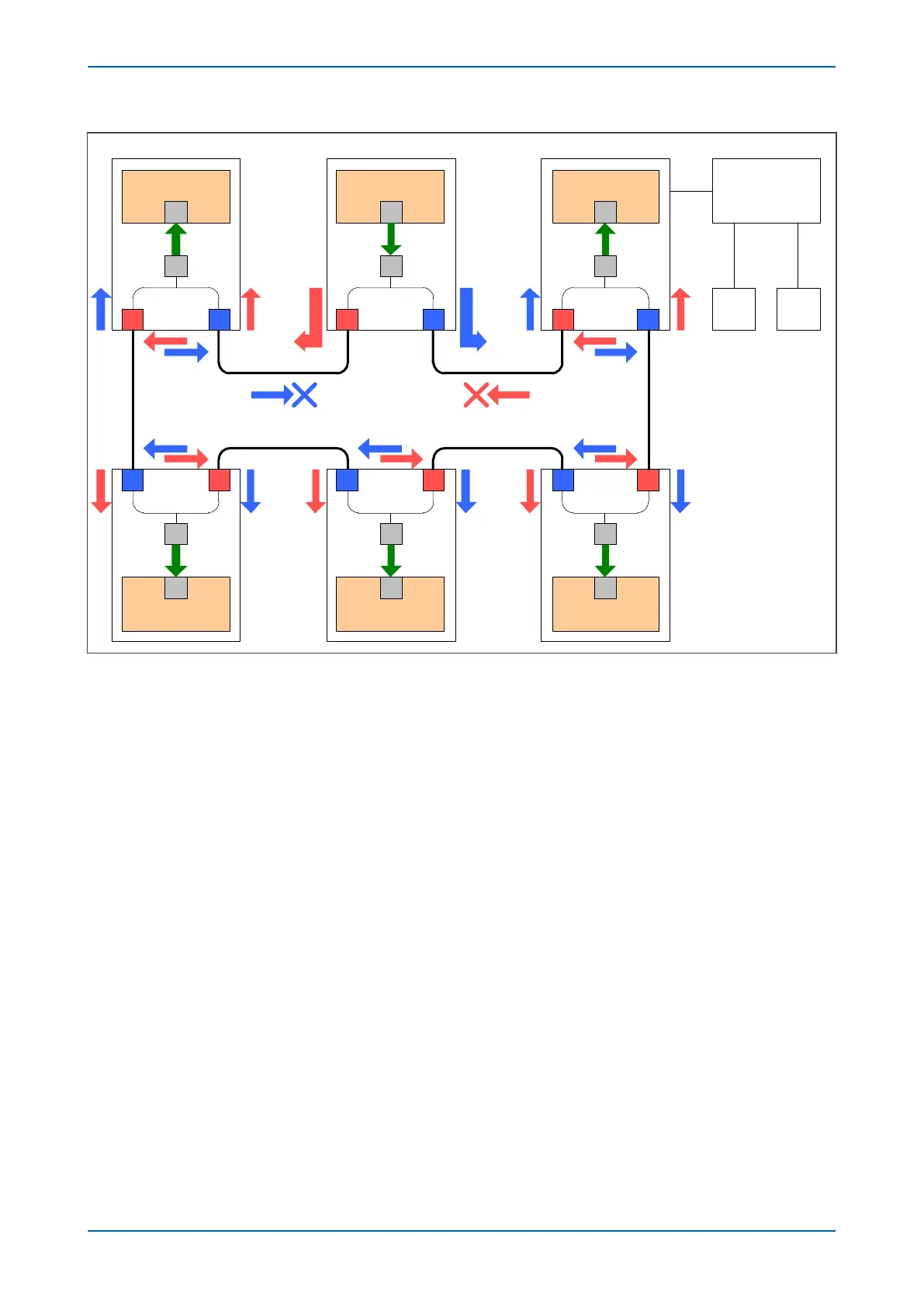

Figure 192: HSR multicast topology
Only about half of the network bandwidth is available in HSR for multicast or broadcast frames because both
duplicate frames A & B circulate the full ring.
5.3.2 HSR UNICAST TOPOLOGY
With unicast frames, there is just one destination and the frames are sent to that destination alone. All non-
r
ecipient devices simply pass the frames on. They do not pr
ocess them in any way. In other words, D frames are
produced only for the receiving DANH. This is illustrated below.
Chapter 18 - Communications P14x
392 P14xEd1-TM-EN-1
