August 2003
7-20 Logging Data
Displaying Log Data in Graphical Form
To view a log in graphical form, be sure the log is highlighted in
the left window of the Log Manager. Then scroll to the View
menu and press
[ENTER]. Scroll to the Graph option and press
[ENTER].

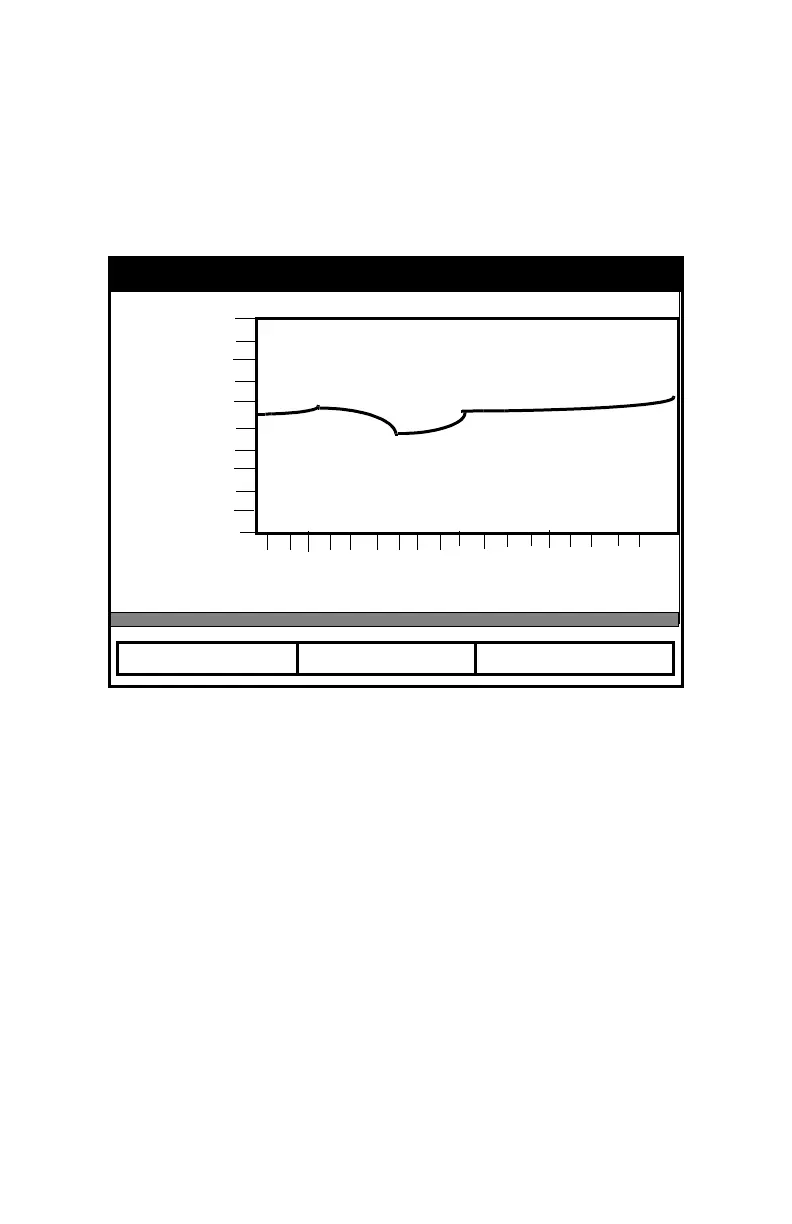

Figure 7-13: The Log Graph Display Window
The Select Measurement window opens and lists the log
measurement parameters. If a log contains more than one
measurement, you must select which measurement to plot from
the list displayed. Once you have chosen the measurement
parameter, press
[F3] (View). The screen now appears similar to
Figure 7-13 above. (Press
[F2], Cancel, to leave the window
without viewing the graph.)
• If you wish to alter the graph scale, press [F1] (Scale) and go to
page 7-21.
• If you wish to alter the time scale, press [F2] (Time) and go to
page 7-22.
• To leave the window, press [F3] (Exit).
AAA.LOG (Dew Point, °C)
-52.0
Time Exit
2003/03/01
2003/03/01
13:23:41 PM
13:53:41 PM
Scale
To Next Page
