Chapter 5: Interfaces
1 Signalizing Leds
The signalization LEDs are placed in the front of the equipment. These LEDs indicate
the status of the ports, as explained below.
For T1000 switches, the number above each LED means the port associated to it
 LINK LED: Indicates the port status. LED off means port down and LED on
means connection with equipment;
o Green colour means Gigabit port speed;
o Orange colour means 100 Mbps port speed.
 TX LED: Indicates transmission of data. If on, there is transmission of data
from the port, and if off, there is no transmission;
 RX LED: Indicates receive of data in the port. If on, there is reception of data
in the port, and if off, there is no reception.

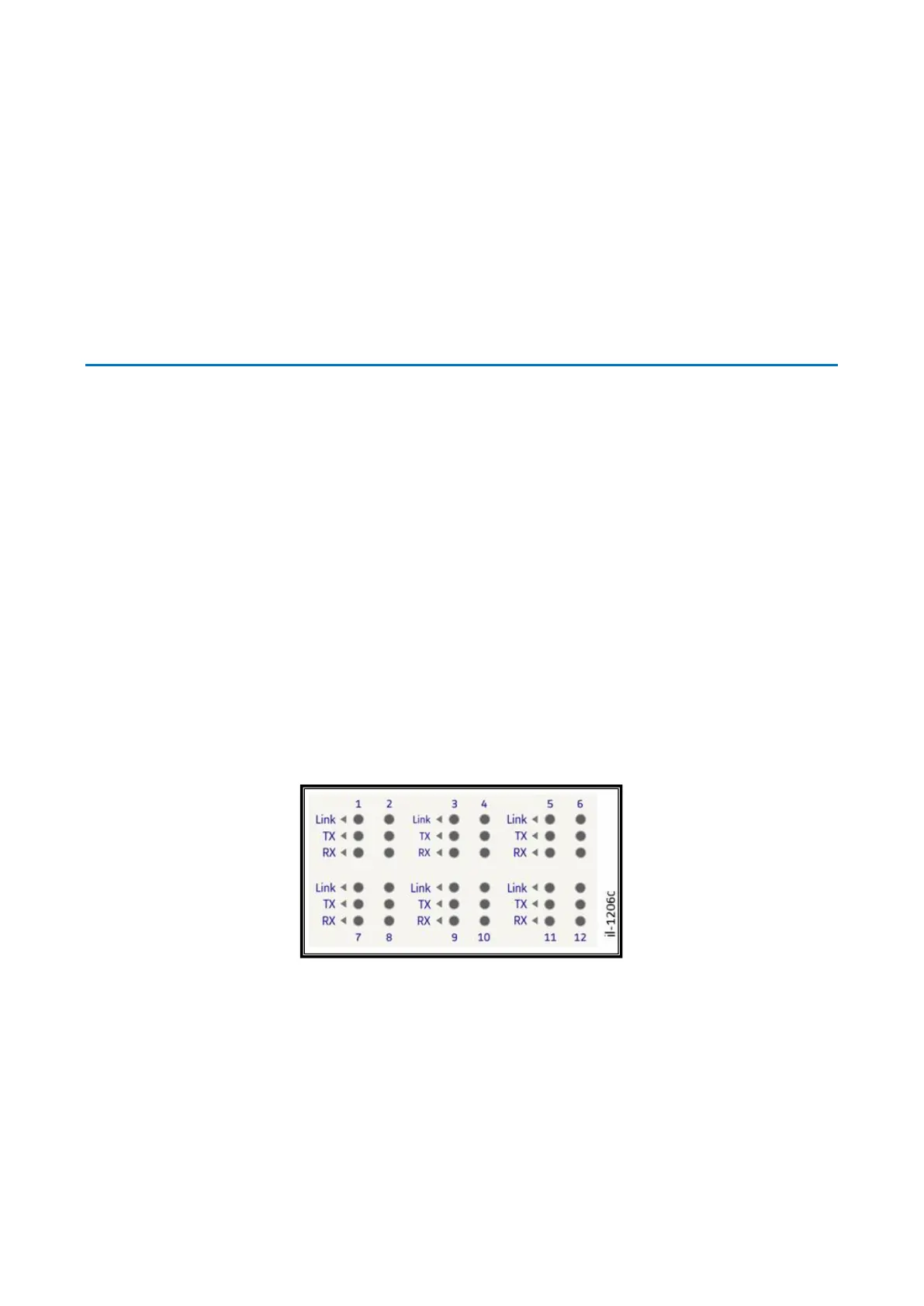

Figure 68: HMI LED matrix of T1000 Switches
For S2020 and S2024G switches, the number in the left of each LED means port
number associated to it.
 LINK LED: Indicates port status. LED off means port down. LED on means
connection with equipment;
o Green colour means Gigabit port speed;
