GE S2020 User Manual

GE Reason Switches
Chapter 6 – Operation
REASON SWITCHES-TM-EN-3
123
2 Local Operation – USB Interface
Reason Switches allow using USB (Universal Serial Bus) cable connection to configure
the equipment and monitor running settings at the equipment. If used, this interface
would require a computer with a USB communication port and Serial communication
software.
Reason Switches connector is a female B-type USB connector a male B-type USB
connector must be used at this interface.

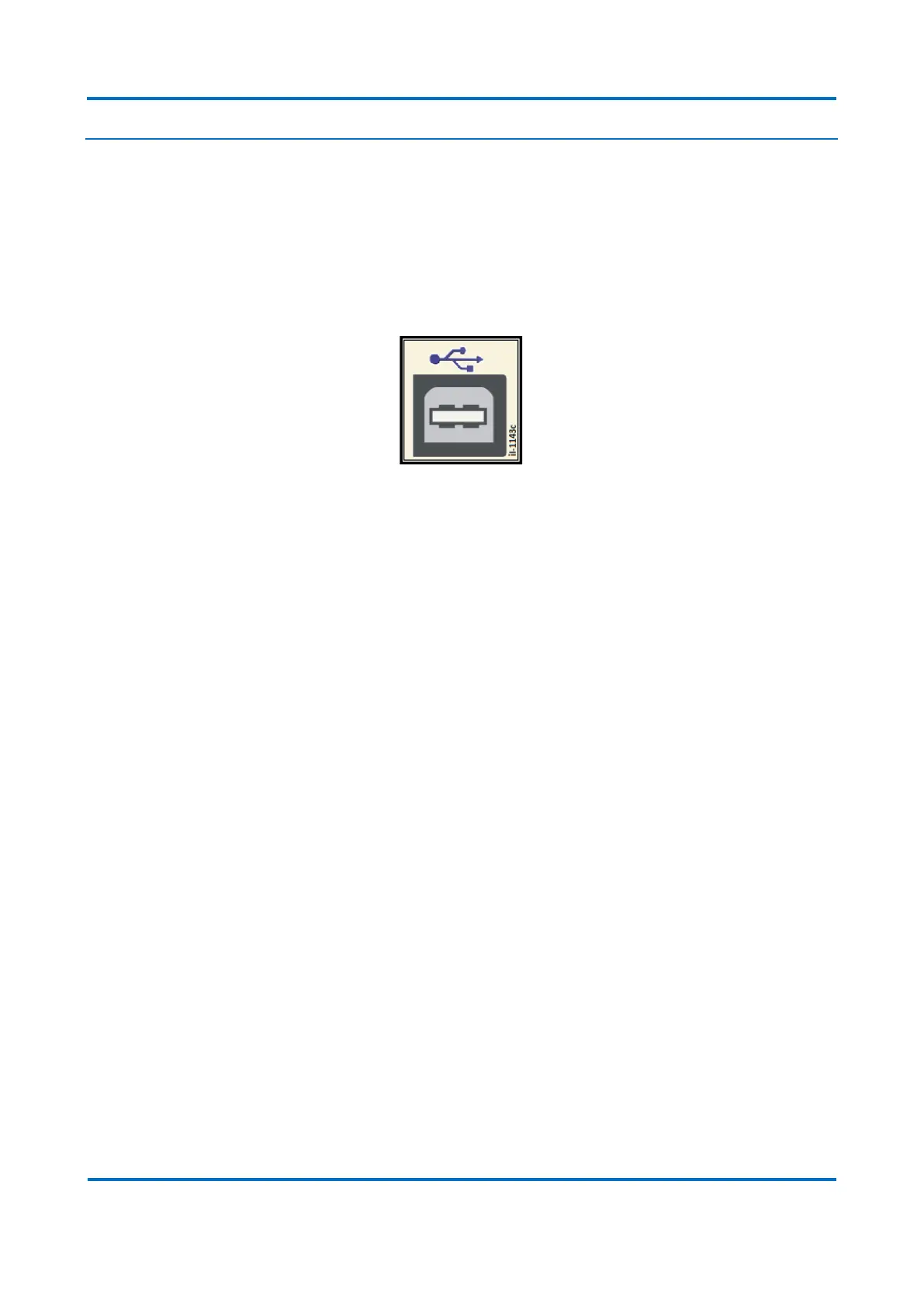

Figure 77: B-type USB connector at Reason Switches
When using the USB interface, it is necessary to configure the USB port serial
communication parameters at the computer used to communicate with the
equipment. Serial parameter must be as follow:
 Speed: 115200;
 Data bits: 8;
 Stop bits: 1;
 Parity: None;
 Flow control: None.
Allowed commands at the main menu are:
 clear reset functions;
 configure enter configuration mode;
 copy copy from source to destination;
 delete delete one file in flash: file system;
 dir directory of all files in flash: file system;
 disable turn off privileged commands;
 do to run exec commands in configuration mode;
