D
IRECTION 5813707-100, REVISION 2 HAWAII™ SERVICE MANUAL
5-2 Chapter 5 - Venue Go™Components and Function (Theory)
PRELIMINARY
Section 5-2
General Information
5-2-1 Introduction
The Venue Go™ system is a compact portable ultrasound scanner that can be used with both phased
array and linear array ultrasound probes.
Weighing less than 6 kg (13.2 lb), the Venue Go™ ultrasound scanner is extremely versatile and -
depending upon the installed software - can be used for various imaging modes. These include:
• 2D Gray Scale and 2D Color Flow imaging
• M-Mode Gray Scale imaging
• Color M-Mode
• Doppler
• Different combinations of the above modes
.
5-2-2 Venue Go™ Mechanical Design
Venue Go™ Portable scanner has an adjustable stand. The rear stand allows the system to be placed
on a flat horizontal surface to allow tilting the system within a range of 20 to 70 deg.(+/- 5 deg.) from
horizon.
The system's angle when placed on the cart is adjustable at an angle between 0-40 degrees, while
maintaining maximal drift of +/- 5 deg.
It is connected to the Cart via mounting attachment with simple release mechanism.
The Cart enables the user to control the swivel and tilt of the scanner via the Cart front handle or by
holding the screen.
The height of the Cart can be easily adjusted with a single hand and stopped when the handle is
released.

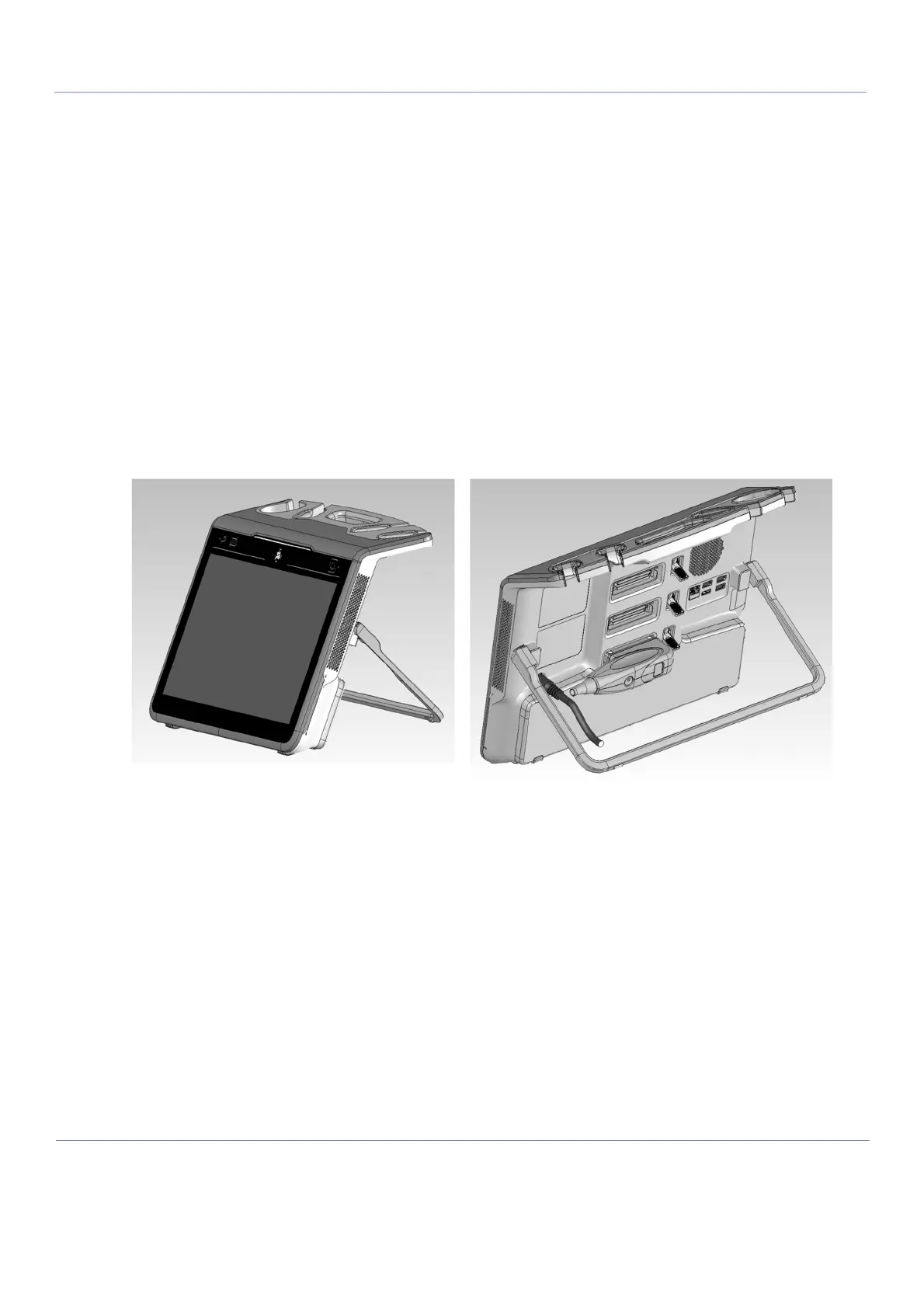

Figure 5-1 Venue Go™ System - General View
