IRECTION 5813707-100, REVISION 2 VENUE™ SERVICE MANUAL
8-10 Chapter 8 - Replacement Procedures
PRELIMINARY
8-2-5 Probe Lever Replacement Procedure
8-2-5-1 Tools
Phillips screwdriver of appropriate size
8-2-5-2 Time Required
5 min
8-2-5-3 Preparations
1.) Shut down the Venue Go™ ultrasound unit, as described in Power Shutdown.
2.) Prepare stable flat surface covered with a soft material (such as foam or thick cloth) to prevent
scratches to the display.
3.) Dismount Venue Go™ system from cart as described in Mounting / Dismounting System on Cart
and place it on a previously prepared surface with the display facing down.
8-2-5-4 Probe Lever Removal Procedure
1) Remove back cover.
2) Remove C-PSB.
3) Turnover the removed C-PSB unit, and identify the 2 screws holding the requested probe lever cap.
Note: Each lever is held by 2 screws
Refer to Table 9-16 on page 9-17.
• Back Cover Removal Procedure
• C-PSB Removal Procedure

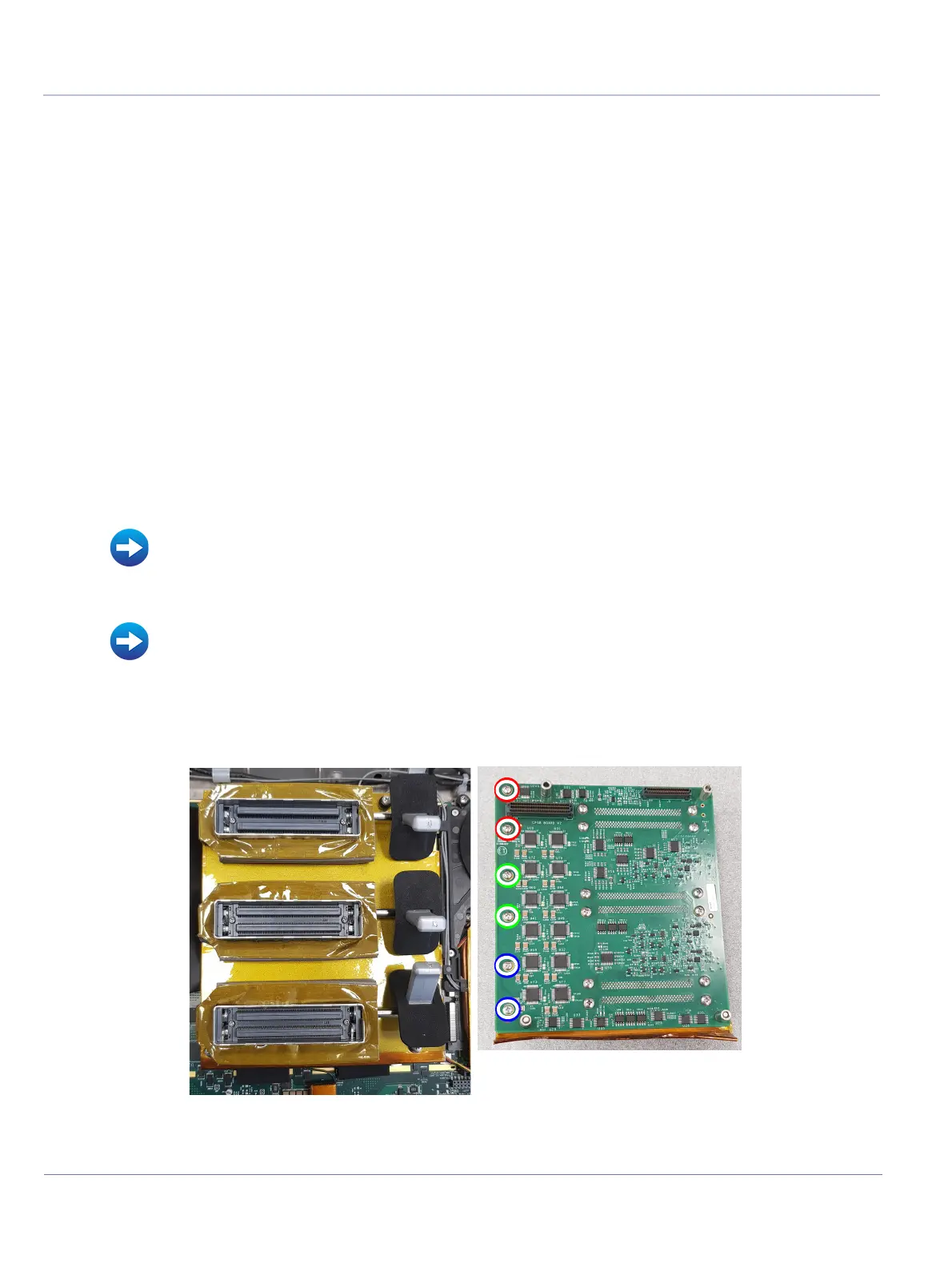

Figure 8-81 Turn-over the Removed C-PSB Unit; Identify the Probe-lever Screws
