ADV200 WA • Quick start up guide - Specification and installation 131
5. Position the optional card in the dedicated Slot (in the example, the EXP-IO
card is inserted in Slot 1).
Align the ends of the card (D) in the slots and then fully insert the connector of
the card in the connectors of the drive (E).
6. Fasten the card with the screw + washer (provided with the optional card) in
housing (F) as shown in the gure.

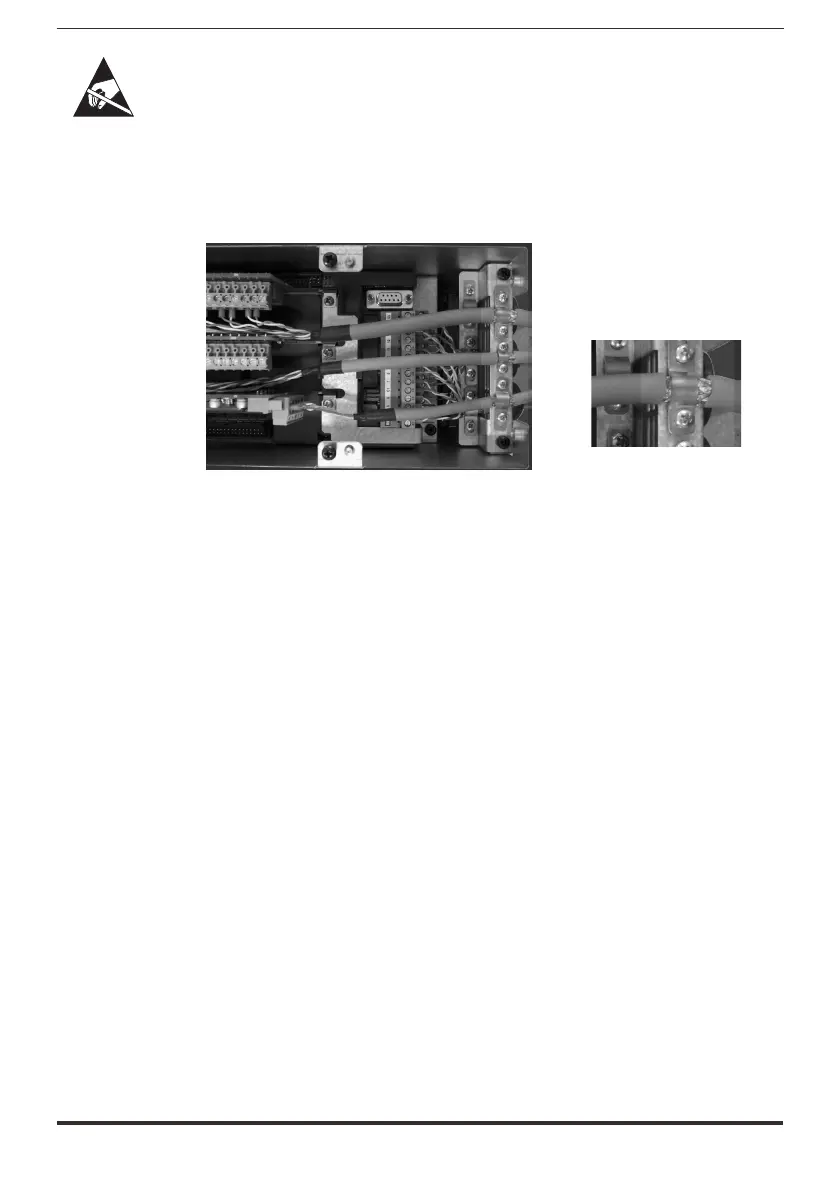

10.5.2 Shielding of optional card connections
Fasten the shield of the
cables to the omega sections
as showed on gure.
