ADV200 WA • Quick start up guide - Specification and installation 17
4 - Mechanical installation
The Drive must be mounted on a wall that is constructed of heat resistant material.
While the Drive is operating, the temperature of the Drive’s cooling ns can rise to a
temperature of 158° F (70°C).
Le drive doit être monté sur un mur construit avec des matériaux résistants à la chaleur.
Pendant le fonctionnement du drive, la température des ailettes du dissipateur thermique peut
arriver à 70°C (158° F).
Because the ambient temperature greatly affects Drive life and reliability, do not install
the Drive in any location that exceeds the allowable temperature.
Étant donné que la température ambiante inue sur la vie et la abilité du drive, on ne devrait
pasinstaller le drive dans des places ou la temperature permise est dépassée.
Be sure to remove the desicant dryer packet(s) when unpacking the Drive. (If not
removed these packets may become lodged in the fan or air passages and cause the
Drive to overheat).
Lors du déballage du drive, retirer le sachet déshydraté. (Si celui-ci n’est pas retiré, il em-
pêche la ventilation et provoque une surchauffe du drive).
Protect the device from impermissible environmental conditions (temperature, humidity,
shock etc.).
Protéger l’appareil contre des effets extérieurs non permis (température, humidité, chocs etc.).

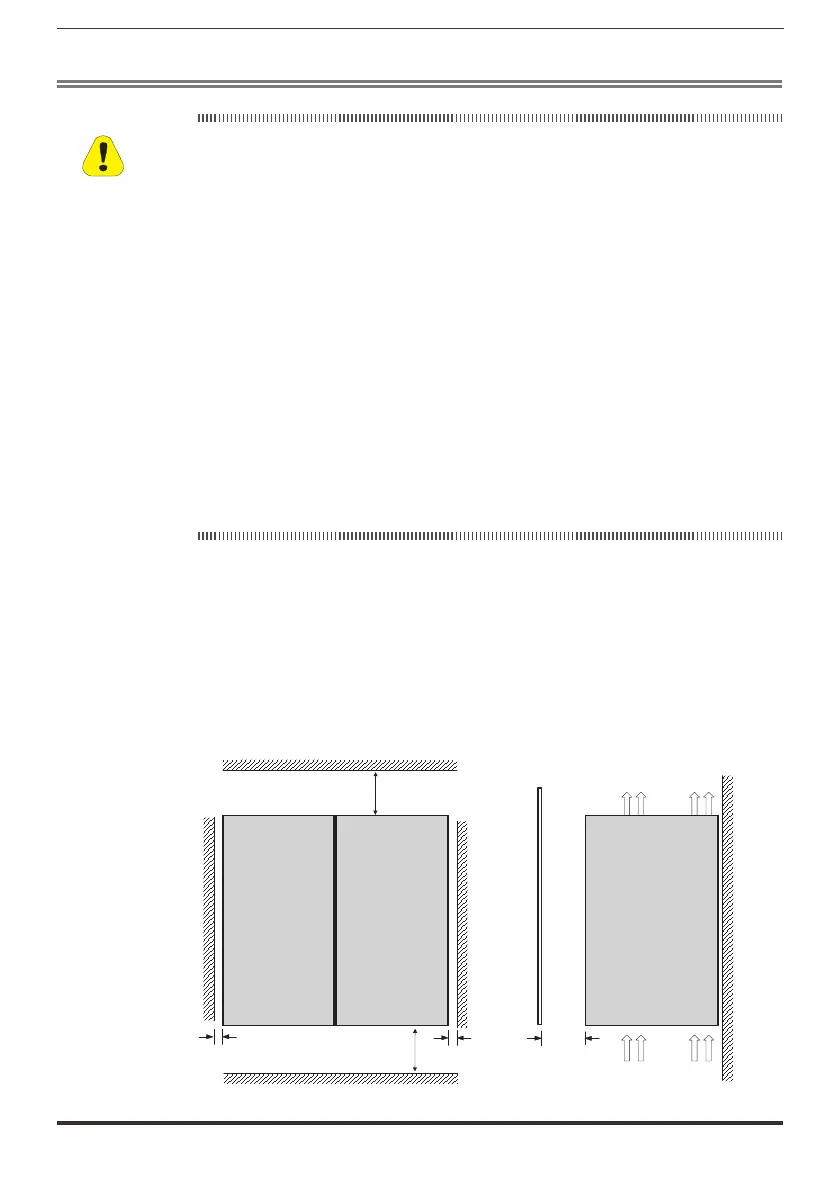

4.1 Inclination and mounting clearance
The Drives must be mounted in such a way that the free ow of air is ensured see
paragraph “9.8 Cooling”, page 107.
Maximum angle of inclination �����������30° (referred to vertical position)
Minimum top and bottom distance �������150 mm (≥ADV200 WA-72000 = 400mm)
Minimum free space to the front ���������25 mm
Minimum distance between drives �������none
Minimum distance to the side with the cabinet
10 mm
10 mm [ 0.4" ]
≥
≥
400 mm [ 15.75" ] (ADV 7...)
150 mm [ 6" ]
≥
25 mm [ 0.98” ]
≥
10 mm [ 0.4" ]
≥
≥150 mm [ 6" ]
≥400 mm [ 15.75" ] (ADV 7...)
Caution
