86 ADV200 WA • Quick start up guide - Specification and installation
+1
-1
* -1
* +1
Analog input 1 mon
Analog input 1 Block
Ramp Setpoint Block
Null
Null
Terminal input
Ramp ref 1 mon
Ramp ref 1 src
An inp 1 sign src
Null
An inp 1 alt value
An inp 1 alt sel src
Ramp ref invert src

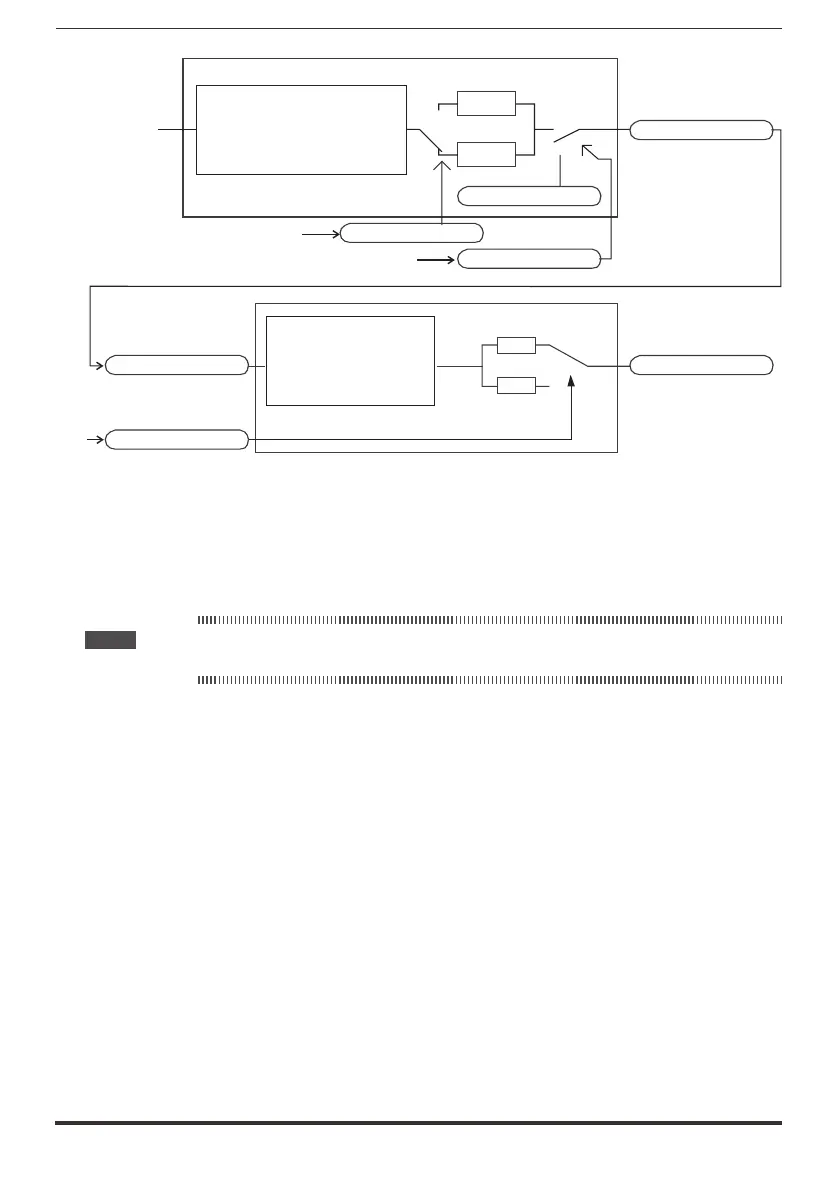

The diagrams above illustrate the internal processing philosophy of the single
“function blocks” and the result of these changes on the other interconnected
“function blocks”.
Note ! This section contains a brief description of the functions of the other parameters in the function blocks
not included for the changes in the example.
The An inp 1 alt sel src parameter (PAR: 1528) can be used to select an alterna-
tive reference for the Analog input 1 mon (PAR: 1500) output.
The An inp 1 alt value parameter (PAR: 1524) determines the alternative refer-
ence value for the Analog input 1 mon (PAR: 1500) output.
The Ramp ref invert src parameter (PAR: 616) can be used to select the source
for the command to reverse the “Ramp setpoint” function block output.
The output signal from the “Ramp setpoint” block is displayed in the Ramp ref 1
mon parameter (PAR: 620).
7.3.4 Multiple destination
Several functions can be assigned together to each input: to display which and
how many functions have been assigned to each input, check the relative “dest”
parameter to see whether there is a number shown in square brackets to the right
of the number of the selected parameter (as shown in the gure below).
