ADV200 WA • Quick start up guide - Specification and installation 45
+24Vdc voltage, which is used to externally supply the regulation card has to be stabi-
lized and with a maximum ±10% tolerance. The maximum absorption is 1A.
It is not suitable to power supply the regulation card only through a unique rectier and
capacitive lter.
La tension de + 24Vdc utilisée pour alimenter extérieurement la carte de régulation doit être
stabiliséeet avec une tolérance de ±10% ; absorption maximum de 1A. Les alimentations
obtenues avec les seules redresseur e ltre capacitive ne sont pas appropriées.

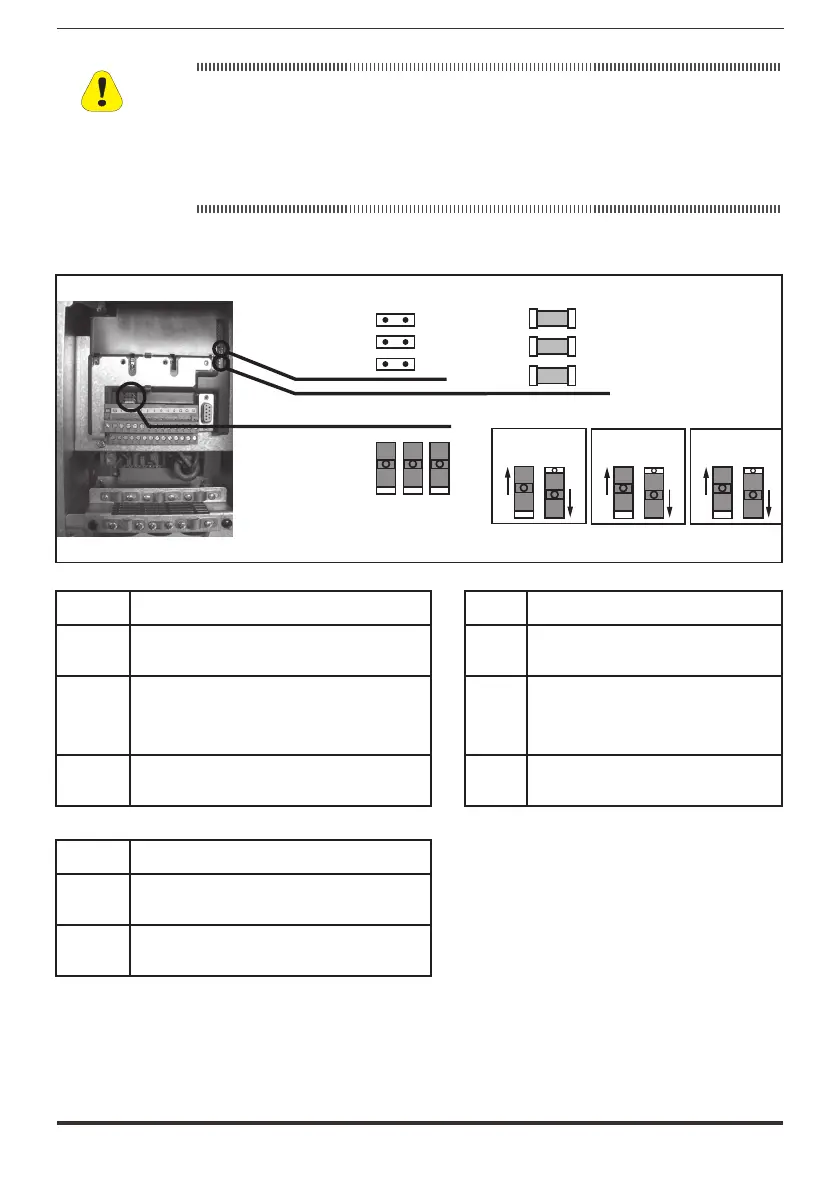

5.2.4 Switches, jumpers and LED
LEDs :
S1 S2 S3
PWM
RUN
PWR
Switches :
S1
Jumpers :
HC0
HC1
CFG
V I
S2
V I
S3
V I
Switch V/I settings on inputs and analog output LEDs Function
S1
Analog input 1
Default = voltage (±10 V)
PWM
(green)
LED lit during IGBT modulation
S2
Analog input 2
Default = voltage (±10 V)
RUN
(green)
Flashes (freq. 1 sec) if no errors or faults
have occurred.
If ON or OFF, indicates an error conditions
(software hangup)
S3
Analog output 2
Default = voltage (±10 V)
PWR
(green)
ON when the regulation card is correctly
powered
Jumpers Function
HC0
HC1
Reserved. Deafult = Open
CFG
Open = 400 Vac rated voltage (default)
Closed = 460 Vac rated voltage
Caution
