ADV200 WA • Quick start up guide - Specification and installation 41

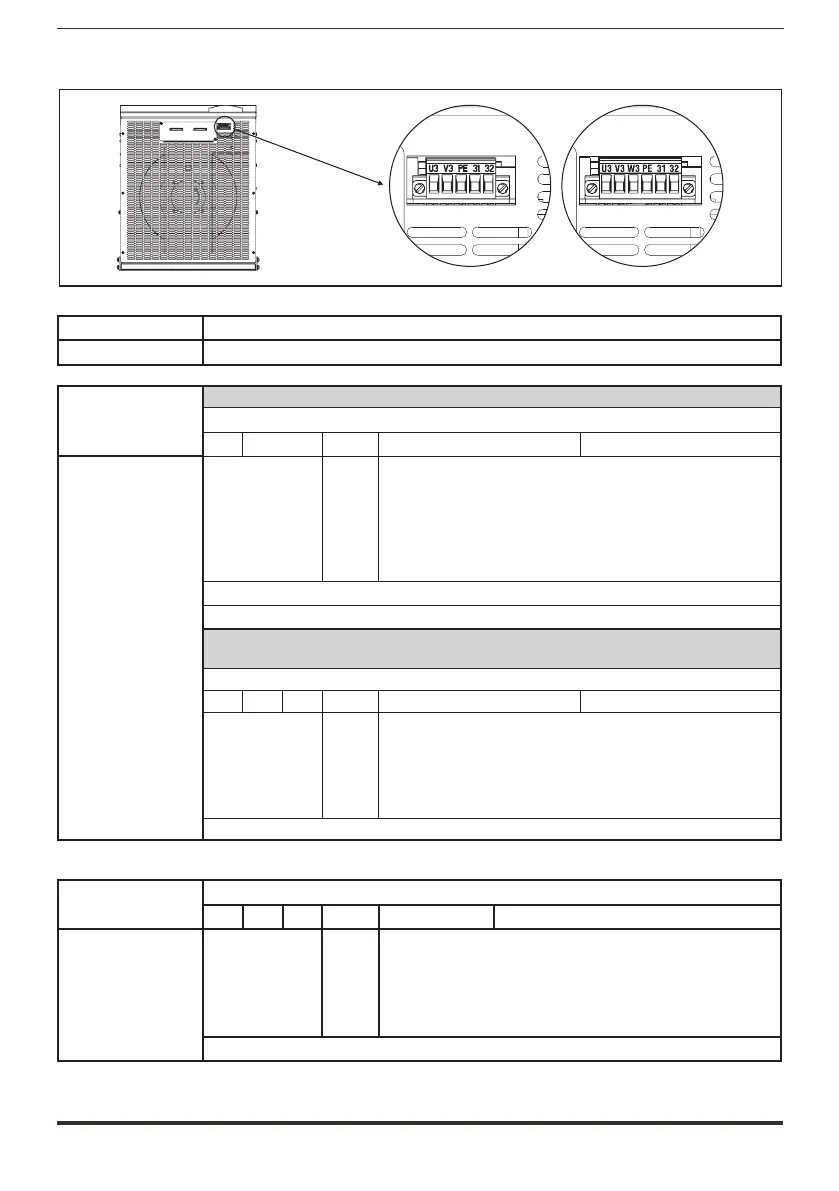

5.1.12 Connection of fans
Sizes Terminals
1015 ... 61600 No connection is necessary: the drive’s internal power supply unit powers the fan (+24Vac).
Sizes
Version before 2009/125/CE (ErP regulation)
Terminals
U3 V3 PE 31 32
72000 ... 731500
1 x 230V / 50/60Hz,
2.4A (50Hz) - 3.3A
(60Hz)
Ground
250V/10A contact
Motor over temperature contact management terminals 31-32:
Closed: Internal fan in operation and powered;
Open: Internal fan in over temperature alarm and/or input power supply
not available.
Power the internal fan (max 600W) with a single-phase voltage on terminals U3/V3.
Type of fan compliant 2009/125/CE (ErP)
ADV200 WA starting from S/N 33GC017331
Terminals
U3 V3 W3 PE 31 32
3 x 400V / 50/Hz,
1.15Arms ... 3
x 460V / 60Hz,
1.4Arms
Ground
250V/2A contact
Motor over temperature contact management terminals 31-32:
Closed: Internal fan in operation
Open: Internal fan in over temperature alarm
Power the internal fan ( 570W @400V, 930W @460V ) with a three-phase voltage on terminals U3/V3/W3.
Sizes
Terminals
U3 V3 W3 PE 31 32
73550 ... 74000
3 x 400V / 50Hz,
1,55Arms
or
3 x 460V / 60Hz,
1,7Arms (*)
Ground
250V/10A contact
Motor over temperature contact management terminals 31-32:
Closed: Internal fan in operation
Open: Internal fan in over temperature alarm
Power the internal fan (max 1200W) with a three-phase voltage on terminals U3/V3/W3.
(*) ADV200 WA-73550-KXX-4A and ADV200 WA-74000-KXX-4A models.
